Help CenterHot Sell Wholesale Price and Top Quality Vibration Sieve Powder Ultrasonic Polishing Machine
Related Products
-
Hot Sell Wholesale Price and Top Quality Vibration Sieve Ultrasonic OscillatorUS$ 1,890 - 8,700MOQ: 1 Set -
Hot Sell Wholesale Price and Top Quality Vibration Sieve Ultrasonic ShakerUS$ 1,890 - 8,700MOQ: 1 Set
-
Wholesale Price and Top Quality Ultrasonic Vibrator Ultrasonic Transducer For SieveUS$ 1,890 - 8,700MOQ: 1 Set
-
Hot Sell Wholesale Price and Top Quality Vibrating Ultrasonic Sieve VibratorUS$ 1,890 - 8,700MOQ: 1 Set
-
Hot Sell Wholesale Price and Top Quality Ultrasonic Vibrating FilterUS$ 1,890 - 8,700MOQ: 1 Set
Specifications
Ultrasonic Polishing Machine1.Self-cleaning function
2.Smart ultrasonic generator
3.Stable performance
4.No blocking

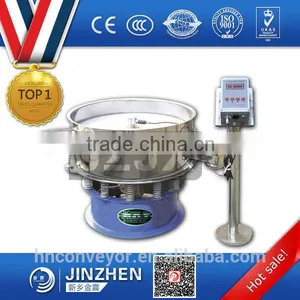

Vibration Sieve Powder Ultrasonic Polishing Machine
Product Introduction- Ultrasonic Polishing Machine
JZS - AC series Ultrasonic Polishing Machine is that transform 220 v, 50 hz or 110 v, 60 hz power into high frequency electric energy of 36 hz, input ultrasonic transducer, changed it to the 36 to 40 KHZ mechanical vibration, so as to achieve the aim of efficient screening and screen cleaning, makes the ultra micro powder screening very easily.Changed system on the basis of the traditional vibrating screen, bring in a ow amplitude, high frequency ultrasonic vibration wave (mechanical wave) on the screen, to improve the sieving performance of super fine powder. Particularly suitable high value-added fine powder of users.
Working principle- Ultrasonic Polishing Machine
The sttached ultrasonic vibration wave (mechanical wave) on the screen, makes the ultra micro powder accept huge ultrasonic acceleration, thus inhibiting adhesion, friction, flat screen and other blocking factors, improve the screening efficiency and screen cleaning efficiency.
Advantage- Ultrasonic Polishing Machine
1, To reduce or not produce screen cleaning time;
2, Don't produce the pollution of bouncing balls and other auxiliary equipment to the powder;
3, Keep the mesh size, stable screening accuracy;
4, Decompose the adhesive material, reduce on the material on screen;
5, Reducing the times of screening process;
6, Screening rate increase 50% - 100%;
7, Capacity increase 0.5-10 times.
Technical parameters- Ultrasonic Polishing Machine
| Type | JZS-400 | JZS-600 | JZS-800 | JZS-1000 | JZS-1200 | JZS-1500 | JZS-1800 | JZS-2000 |
|
Sieving Diameter |
340 | 540 | 730 | 900 | 1100 | 1400 | 1700 | 1886 |
|
Sieving Area (m2) |
0.0907 | 0.2289 | 0.4183 | 0.6359 | 0.9499 | 1.5386 | 2.2687 | 2.7922 |
| Mesh Size | 2-500 | 2-500 | 2-500 | 2-500 | 2-500 | 2-500 | 2-500 | 2-500 |
| Layer | 1-3 | 1-5 | 1-5 | 1-5 | 1-5 | 1-5 | 1-3 | 1-3 |
|
Powder(Kw) |
0.18 | 0.25 | 0.55 | 1.1 | 1.1 | 1.5 | 2.2 | 2.2 |
|
Vibration Motor Power(kw) |
1.1 | 1.5 | 1.5 | 2.2 | 3.0 | 3.0 |
Application Range- Ultrasonic Polishing Machine
1. Size classification: separation of particles into groups of comparable size from the materials.
2. Gravity filtering: removal of solids from liquids and slurries.
3. Product reclamation: removal of the solids from waste product or clarification of waste liquor for further use.
4. Screening: separation of a few oversize particles from a quantity of materials.
5. Liquid cleaning: cleaning of wastewater or remobving the solids from recirculating liquid.
Delivery Detail- Ultrasonic Polishing Machine
Adequate stock of some common type, payment before delivery in 7days
Packing- Ultrasonic Polishing Machine
Fumigation-free wooden case
Waterproof, anti-corrosion, difficult to burn, sturdy and durable
Certification- Ultrasonic Polishing Machine
CE, BV, ISO9001, Supplier Assessment, Letter of Patent, Quality Authentication
Q&A:
Q: How to get a suitable machine?
A: 1. What is the raw material?
2. How much is the capacity you require? (L or KG per hour)
3. How many layers? What is the mesh size for each layer?
4. What's steel material? All stainless steel / All carbon steel / Carbon steel + stainless steel.
5. Power condition. 380V / 415V / 50HZ / 60 HZ?
6. Other special requirement. Example: Heat resistant, anti-static,etc.
