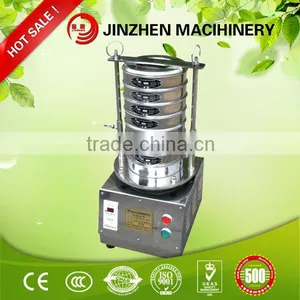

Clay Test Sieving Machine Soil Testing Equipments

Clay Test Sieving Machine Soil Testing Equipments thumbnail-1
Clay Test Sieving Machine Soil Testing Equipments photo-1
US$ 500 - 2,600 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
JINZHEN
Model Number:
JZ-200
Contact Supplier Request Quote Chat Now
Xinxiang City Jinzhen Machinery Manufacturing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Henan, China
Brand Name JINZHEN
Model Number JZ-200
Power Electronic
Usage Vibration Testing Machine

Specifications

Soil Testing Equipments
1. Material SUS304 (stainless steel)
2. Screening rate >95%
3. CE, ISO9001, BV
4. Noise<50db

Clay Test Sieving Machine Soil Testing Equipments



Product Introduction-  Soil Testing Equipments

Soil Testing Equipments is designed for the measurement of particles size distribution and the

test analysis of impurity content or solid content in liquid, which are extensively suited for any powder,

grain and liquid materials, such as the foodstuff, chemical, mining, pharmaceutical, grinding, ceramic

and metals processing, especially in scientific laboratories and quality inspection departments.



Working principle-   Soil Testing Equipments

Soil Testing Equipments adopts new type power generator that generates multivariate high-frequency vibration to sieve and filter samples efficiently. Meanwhile, its standard screen makes sure sample analysis of high precision.



Clay Test Sieving Machine Soil Testing Equipments



Application-   Soil Testing Equipments

1. Chemical industry: fertilizer, resin, drug, pigment, medicine, cosmetic, pharmacy, etc.

2. Food industry: grain, sugar, starch, salt, flour, powder, rice noodles, seed, pollen, etc.
3. Environment: soil, disposed oil, disposed water, etc.
4. Coatings: Powder coatings, pigment paints, etc.
5. Mining: sand, rock, shale, gravel, metal powders, alloys, etc.



Product parts-   Soil Testing Equipments

1. Vibrating motor; 2. Screen frame; 3. Main machine;

4. Time controller; 5. Power switch.



Clay Test Sieving Machine Soil Testing Equipments



Technical parameters-  Soil Testing Equipments

sieve diameter: 200mm/ 300mm;
sieve mesh size: 23- 4750micron;
Custom-made different mesh size you like.



Mesh

Micron

In mm



Mesh

Micron

In mm

5

4000

4

80

180

0.18

10

2057

2.05

100

150

0.15

20

850

0.85

200

75

0.075

35

500

0.5

325

45

0.045

40

420

0.42

400

37

0.037

50

300

0.3

500

25

0.028

60

250

0.25

625

20

0.02





Advantages-   Soil Testing Equipments

1. The product can set the working hours by the electric time controller;

2. Accurate judgment of the sample product quality;

3. Compact, durable design, multifunction, any raw material can be sieve;
4. High capacity and accuracy, screening rate >95%



Certification-   Soil Testing Equipments

CE, BV, ISO9001, Supplier Assessment, Letter of Patent, Quality Authentication



Clay Test Sieving Machine Soil Testing Equipments



Delivery Detail-  Soil Testing Equipments

Adequate stock, delivery in 3days after payment.



Packaging-  Soil Testing Equipments

Fumigation-free wooden case

Waterproof, anti-corrosion, difficult to burn, sturdy and durable

 Clay Test Sieving Machine Soil Testing Equipments

Clay Test Sieving Machine Soil Testing Equipments



Professional service-   Soil Testing Equipments

Our products are sold in China and abroad in over 15 countries;

We will send you an engineer to abroad help for the machine setup and training your workers.







Q&A:

1. What Raw material are you going to sieve?



2. What is the diameter of the test sieve? (200mm or 300mm?)



3. How many layers do you need? (1-6 layers)



4. How much is the mesh size of each layer? (Mesh size or hole diameters)

Clay Test Sieving Machine Soil Testing Equipments

Clay Test Sieving Machine Soil Testing Equipments





Why choose us?



Jinzhen Machinery Manufacturing



We are specialized in manufacturing vibrating sieve and many kinds of machinery

for 25 years in the whole world.



BEST QUALITY+ REASONABLE PRICE+ PROFESSIONAL SERVICE= JINZHEN

Clay Test Sieving Machine Soil Testing Equipments



Clay Test Sieving Machine Soil Testing Equipments
