Home > Electrical & Electronics > Transmitter > Pressure Transmitter > High Accuracy YTC Electro Pneumatic Positioner YT-1000R

High Accuracy YTC Electro Pneumatic Positioner YT-1000R

Xian XK Sensor Equipment Co., Ltd.
High Accuracy YTC Electro Pneumatic Positioner YT-1000R thumbnail-1
High Accuracy YTC Electro Pneumatic Positioner YT-1000R thumbnail-2
High Accuracy YTC Electro Pneumatic Positioner YT-1000R photo-1

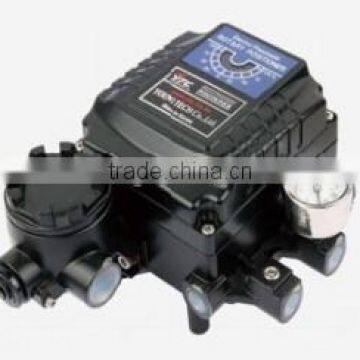

High Accuracy YTC Electro Pneumatic Positioner YT-1000R photo-2
US$ 1 - 3,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Gyeonggi-do, South Korea
Brand Name:
YTC
Model Number:
YT-1000R
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Xi`an or any other port requested
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Gyeonggi-do, South Korea
Brand Name YTC
Model Number YT-1000R







YTC Electro Pneumatic positioner YT-1000R









Product Description



Product introduction



YT-1000R series can have options of position transmitter (PTM), which outputs 4-20mA, and/or limit switch (L/S).   - It is designed for high durability and performance in high vibration environment - Durability has proven after testing of 1 million times minimum.



- Response time is very short and accurate.



- Simple part change can set 1/2 Split Range.



- It is economical due to less air-consumption.



- Direct/Reverse action can be set easily.



- Zero & Span adjustment process is simply.



- Feedback Connection is easy.





Feaures



- It is designed for high durability and performance in high vibration environment.



- Durability has proven after testing of 1 million times minimum.

- Response time is very short and accurate.



- Simple part change can set 1/2 Split Range.



- It is economical due to less air-consumption.



- Direct/Reverse action can be set easily.



- Zero & Span adjustment process is simply.



- Feedback Connection is easy.





Specification

Item.Type

Single

Double

Input Signal

4-20mA DC

Impedance

250±15Ω

Supply Pressure

0.14-0.7MPa(1.4-7bar)

Stroke

0-90°

Air Connection

PT(NPT)1/4

Gauge Connection

PT(NPT)1/8

Conduit

PF1/2(G1/2)

Explosion Proof

Ex dmb IIB T5(KTL)

Ex dmb IIC T5(KTL)

Ex ia IIB T6(KTL)

Ex ia IIC T6(NEPSI)

Ex dmb IIC T5/T6(NEPSI)

Enclosure

IP66

Ambient Temp

Operaling

(-20℃~70℃ )/ (-4~158°F)

Explosion

(-20℃~60℃ )/ (-4~140°F)

Linearity

±1% F.S

±2% F.S

Hysteresis

±1% F.S

Sensitivity

±0.2% F.S

±0.5% F.S

Repeatability

±0.5% F.S

Air Consumption

2.5LPM(sup=0.14MPa)

Flow Capacity

80LPM(sup=0.14MPa)

Material

Aluminum Diecasting

Weight

2.8kg(6.2Ib)

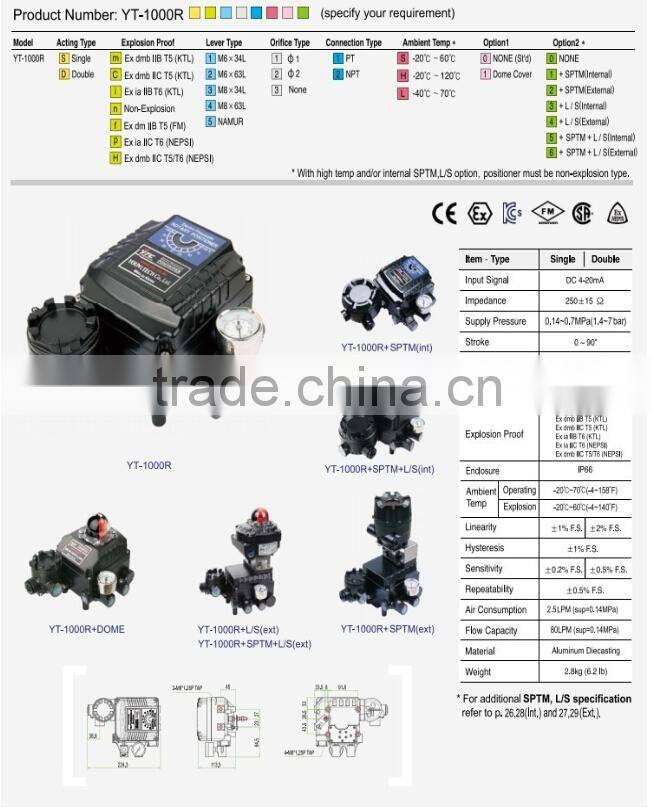

High accuracy YTC Electro Pneumatic positioner YT-1000R





Term & Payment :

1. Payment: T/T in advance or PayPal, Western Union

2. Delivery time : 2-4 weeks working days after receiving payment

3. Shipment: Express (FedEx, DHL, UPS & TNT) or forwarder

4. 7 days  free replace & 1 year free repair for quality warranty
