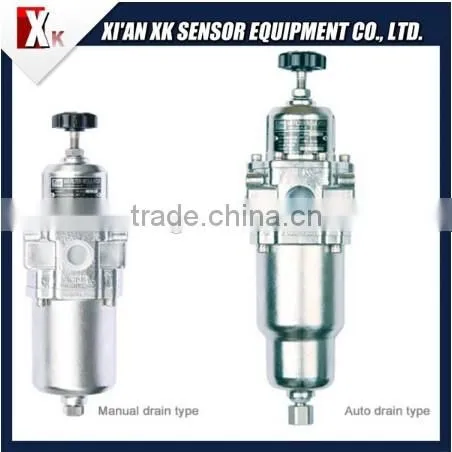

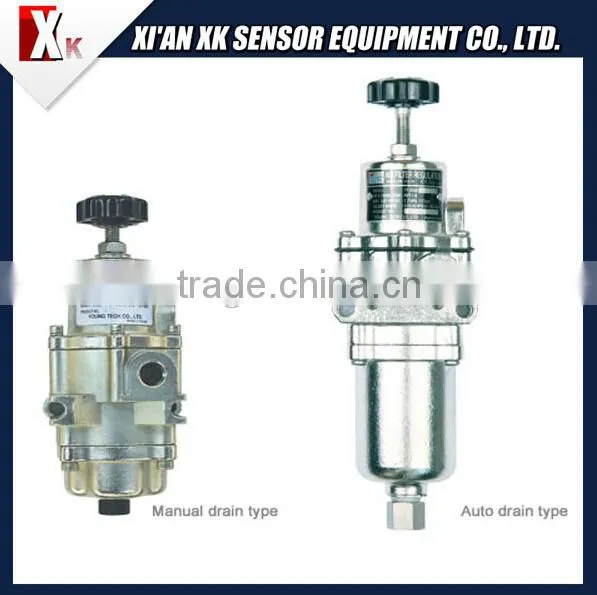

YTC Air Filter Regulato YT-225
Product introduction
YT-225 receives main air pressure and supplies to the desirable level pressure to a positioner or other devices.
- Maintains desirable pressure level, regardless of fluctuation of pressure input.
- Stainless steel body.
- 5 micron filter sorts minuteness particles in the air.
- Relief function is available which discharges to atmosphere if the outlet pressure is higher than setting pressure.
Technical parameters
Item.Type |
YT-225 |
Max.Supply Pressure |
1.7MPa(17bar) |
Max.Output Pressure |
0.42MPa(A Type),0.84Mpa(B Type) |
Air Connection |
PT(NPT)1/2 |
Gauge Connection |
PT(NPT)1/4 |
Ambient Temp |
(-20℃~70℃ )/ (-4~158°F) (Standard type) |
Min.Filtering Size |
5micron |
Material |
Aluminum Diecasting |
Weight |
2.1kg(4.6Ib) |
Term & Payment :
1. Payment: T/T in advance or PayPal, Western Union
2. Delivery time : 4-6 weeks working days after receiving payment
3. Shipment: Express (FedEx, DHL, UPS & TNT) or forwarder
4. 7 days free replace & one year free repair for quality warranty
5. Packing :Standard carton /wooden case with poly foam inside
