Azbil Smart Pressure Transmitter PTG72T
Overview
The Smart Pressure Transmitter model PTG is a high- performance, highly reliable gauge pressure transmitter. Based on Azbil Corporation's proven Smart Transmitter technologies, the model PTG offers improved performance and reliability with size, weight and cost advantages. An optional, built-in digital indicator allows the pressure transmitter to be used in a wide variety of applications.
The model PTG can also enable two-way communications between CommPad (Smart Communicator), or HART 375 communicator, and, via DE protocol, a TDCS3000 or 3000X and a database, thus facilitating self-diagnosis, range resetting, and automatic zero adjustment perations.
FEATURES
Compact and lightweight
· Approx. 0.9 kg (Screw connection type)
Broad range setting
· Range from -100 kPa to 50 MPa.
· Span from 2.0 kPa to 50 MPa.
Note) Screw connection type. Covered with five ranges.
Remote communication
Any range can be set using the Smart
communicator or the HART communicator
(available separately).
This further increases range flexibility and keeps
inventory down.
Built-in digital indicator
The built-in digital indicator option effectively
checks output on site.
Type of protection
· Water and dust proof for IEC IP67
· FM Explosionproof
· FM Dust-ignition-proof
· FM Intrinsically safe
· KOSHA Flameproof
· NEPSI Flameproof
· NEPSI Dust ignition-proof
· ATEX Flameproof
China RoHS
This device is used in the Oil & Gas, Petrochem-
ical, Chemical, Pulp & Paper, Food & Beverage,
Machinery, Steel/Metal & Mining, and Automo-
bile industries and therefore does not fall under
the China RoHS Legislation.
If this device is used in semiconductor manufac-
turing equipment, labeling on the device and
documents for the China RoHS may be required.
If such documents are required, consult an Azbil
Corp. representative.

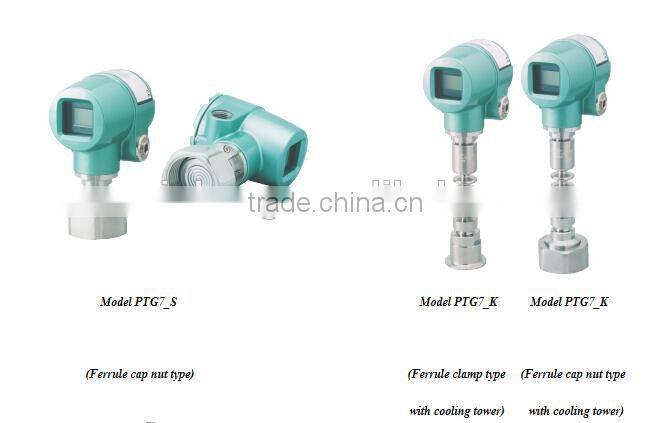

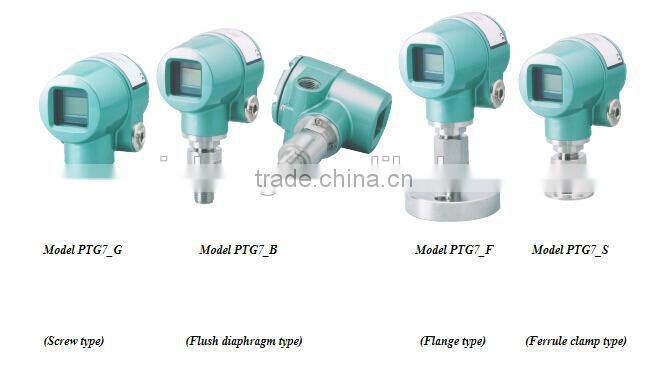

External views of the PTG series
Term & Payment :
1. Payment: T/T in advance or PayPal, Western Union
2. Delivery time : 2-4 weeks working days after receiving payment
3. Shipment: Express (FedEx, DHL, UPS & TNT) or forwarder
4. 7 days free replace & 1 year free repair for quality warranty
