Electric Small Construction Hoist

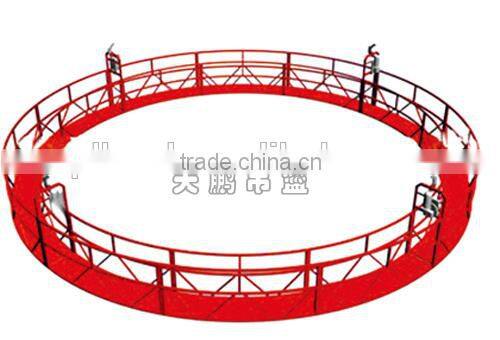

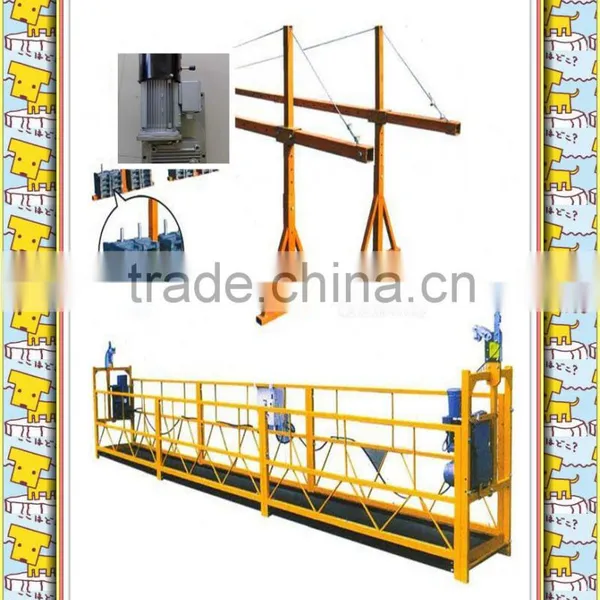

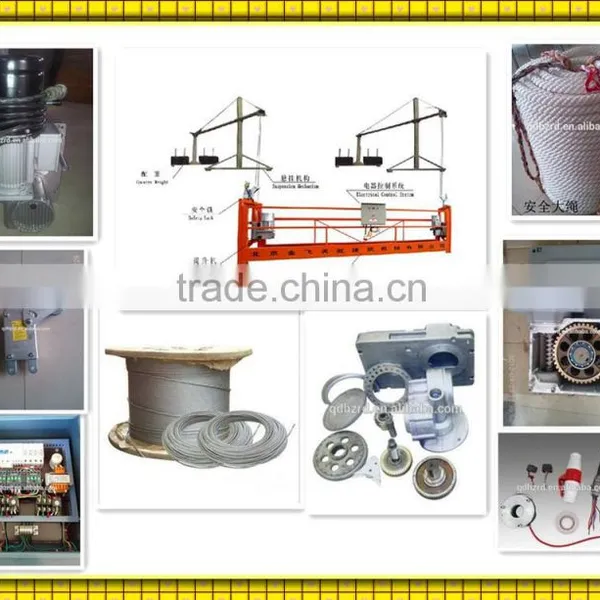

Platform is an alternative to traditional scaffold , reduce labor intensity and improve work efficiency, and the new high operating equipment can be reused. Currently , the use of the gondola building has become a trend , has been widely recognized in the construction of high-rise multi-storey high building facades , and curtain wall installation , construction and maintenance of clean exterior insulation and other high-altitude operations.
At the same time can be used for large tanks , bridges and dams and other engineering operations. The use of this product , you can avoid scaffolding . So that greatly reduce the cost of construction , construction costs only 28 % of the traditional scaffolding , and a substantial increase in work efficiency. Suspended Platform flexible operation , the shift is easy, convenient and practical, safe and reliable.
Name | Technical parameter | ||
Model | ZLP800 | ZLP630 | |
Rated load | 800Kg | 630Kg | |
Lifting speed | 8-10m/min | 8-10m/min | |
Platform Dimension L×W×H(mm) | 7500×720×1300 | 6000×720×1300 | |
Lifting Height | 100 m | 100 m | |
Cable | 100 m | 100 m | |
Steel rope (diameter) | 9.1mm | 8.3mm | |
Hoist | Power | 1.8KW*2 | 1.5KW*2 |
Voltage | 380V/50HZ | 380V/50HZ | |
Safety lock | Permission force of impact | 30KN | 30KN |
Locking Cable Angle | 3°~8° | 3°~8° | |
Suspension mechanism | Front beam overhang | 1.3~.1.5m | 1.3~.1.5m |
Support adjustable height | 1.44~2.14m | 1.44~2.14m | |
Counterweight | 1000KG | 1000KG | |
20’ft container | 8 sets | 9 sets | |

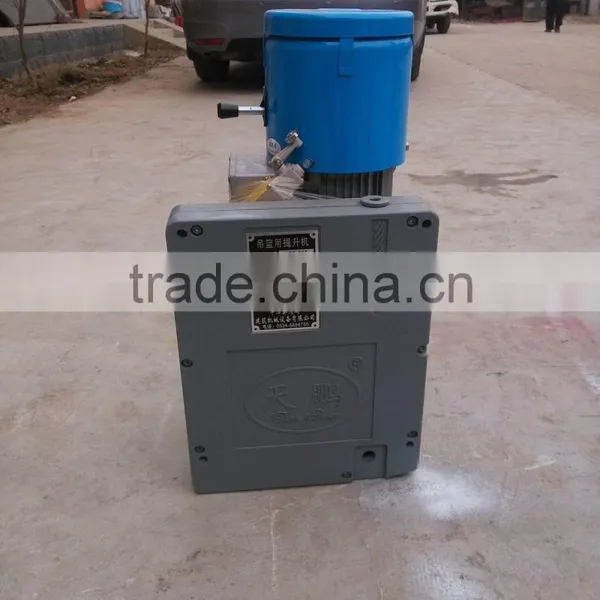

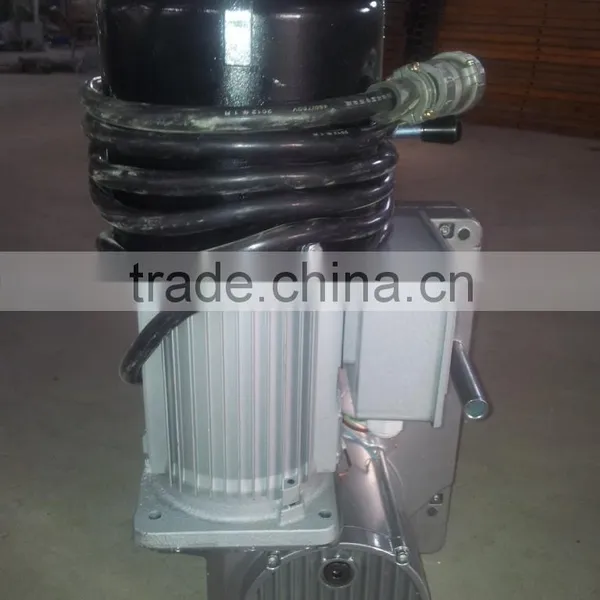

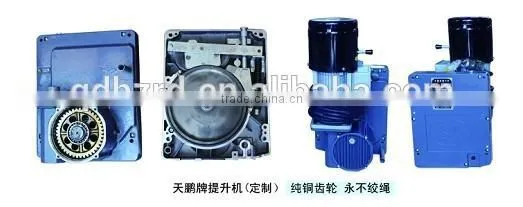

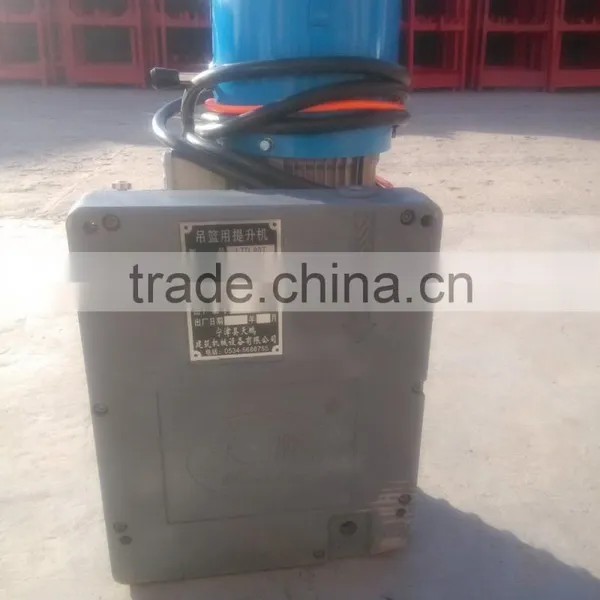

Elevator | Model specifications | Lt6.3 | |
Rated lifting power/kn | 6.3 | ||
Electric motor | Power/kw | 1.5 | |
Voltage/v | 380 | ||
Rotating speed/(r/min) | 1400 | ||
Braking torque/(N.m) | 15 | ||
