Vibrating Grading Screen Classified Separator SUS304 Mesh Sieves
Product introduction- Vibrating Grading Screen
Linear Vibrating Screen is our main product, it use excellent vibrating motor as power source,
so that the materials can be thrown up on the sieve and forward to make a straight movement.
It can be equipped with single or Multi-level screen to achieve the goal of grading,
impurity-removing, testing, washing, dehydration etc.

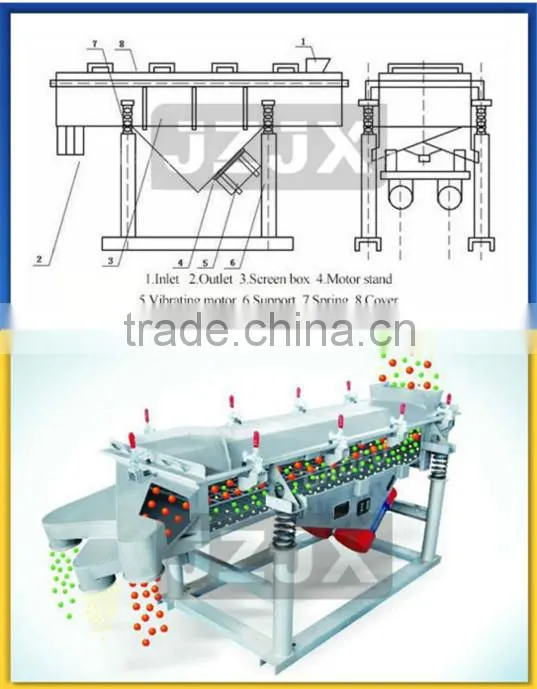

Working principle- Vibrating Grading Screen
Linear Vibrating Screen mainly consists of the eccentric block vibrator, screen box, motor,
and supportive device. Through the flexible coupling, the motor drives the eccentric block
of the vibrator at high rotary speed, generating the centrifugal force, and then lead the
screen box to do circular movement by the amplitude.
After that, the materials in the slope screen surface will be cast continuously
by the force generated from the screen box, then realize the purposeof classifying.

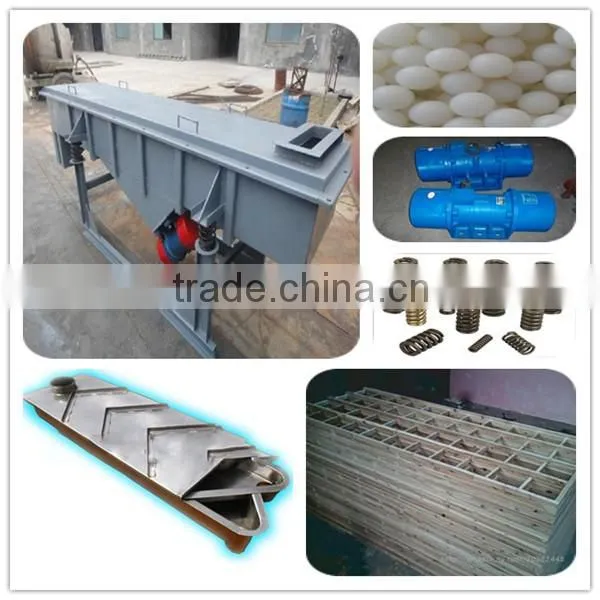

Product parts- Vibrating Grading Screen
1. Screen box, 2. Screen frames, 3. Screen mesh, 4. Vibration motor,
5. Electric pedestal, 6. Damping spring, 7. Support frame, 8. Rubber ball
Application- Vibrating Grading Screen
1) Chemical industry: resin pigment, medicine, grease, paint, palette, etc.
2) Abrasive material : building sand, mica, alumina, abrasive, slurry, etc.
3) Food industry: sugar, salt, yeast powder, pollen, food additive, bean milk, juice, etc.
4) Paper-making industry: coated slurry, exhaust liquid, etc.
5) Metallurgy and mining industry: quartz sand, ore, titanium oxide, zinc oxide, etc.
6) Mechanical industry: casting sand, powder metallurgy, metal powder, etc.
Advantages- Vibrating Grading Screen
1. High sieving efficiency, continuous working.
2. Screen has long service life, easy to maintenance.
3. Sieve body parts are made of rolling welded steel plate, so the overall stiffness
is good, solid and reliable.
Technical parameters- Vibrating Grading Screen
| Type | JZZSF- 520 | JZZSF- 525 | JZZSF- 530 | JZZSF- 1020 | JZZSF- 1025 | JZZSF- 1030 |
| Screen size (mm) | 500*2000 | 500*2500 | 500*3000 | 1000*2000 | 1000*2500 | 1000*3000 |
| Particle size (mm) | 0.074-10 | 0.074-10 | 0.074-10 | 0.074-10 | 0.074-10 | 0.074-10 |
|
Vibration frequency (rpm) |
960 | 960 | 960 | 960 | 960 | 960 |
| Screen angle ( °) | 1°- 7° | 1°- 7° | 1°- 7° | 1°- 7° | 1°- 7° | 1°- 7° |
| Amplitude (mm) | 1- 4.5 | 1- 4.5 | 1- 4.5 | 1- 4.5 | 1- 4.5 | 1- 4.5 |
| Screen layer | 1-6 | 1-6 | 1-6 | 1-6 | 1-6 | 1-6 |
| Power (kw) | 2*(0.4-0.75) | 2*(0.4-0.75) | 2*(0.4-0.75) | 2*(0.4-1.1) | 2*(0.4-1.1) | 2*(0.4-1.5) |
Product kinds- Vibrating Grading Screen
Producing process- Vibrating Grading Screen
Certification- Vibrating Grading Screen
CE, BV, ISO9001, Supplier Assessment, Letter of Patent, Quality Authentication.
Professional service- Vibrating Grading Screen
Our products are sold in China and abroad in over 15 countries;
We will send you an engineer to abroad help for the machine setup and training your workers.
Q&A:
1, What is the raw material you going to sieve?
2, What kind of material of the machine do you want?
(All stainless steel, All carbon steel, Stainless steel(Contact raw material part) + Carbon steel (Base support).)
3, How much is your Capacity ? ( L or KG, T/ Per hour)
4, What is the Power condition in your place? 220V/ 380V / 415V / 50HZ / 60 HZ?
5, How many layers do you want? (1-6 Layers)
6. What is the mesh size for each layer? (if you don't know the mesh size, please tell me the hole diameter of screen mesh or the particle size, in micron or mm)
Click picture to see other popular products
Why choose us?
Jinzhen Machinery Manufacturing
We are specialized in manufacturing vibrating screen and many kinds of machinery for 25 years.
BEST QUALITY+ REASONABLE PRICE+ PROFESSIONAL SERVICE= JINZHEN
