Specifications
Fertilizer Linear Vibrating Screen1. Large capacity
2. Screening rate >95%
3. CE, ISO9001, BV
4. Durable design

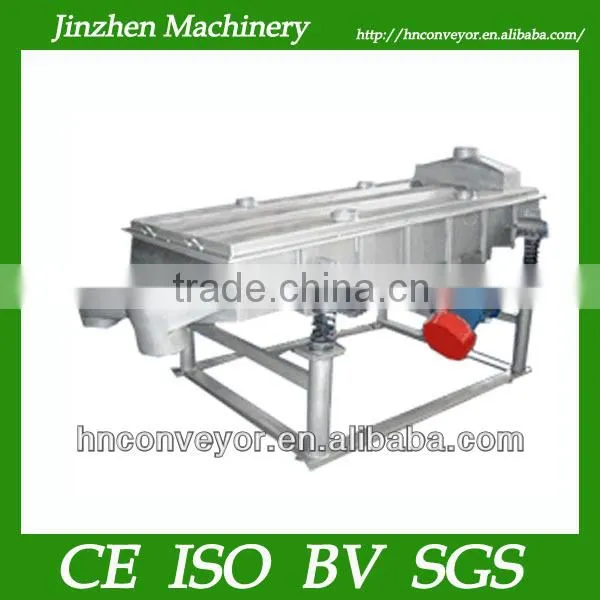

Fertilizer Linear Vibrating Screen
Product introduction- Fertilizer Linear Vibrating Screen
Fertilizer Linear Vibrating Screen is our main product, it use excellent vibrating motor as
power source, so that the materials can be thrown up on the sieve and forward to make
a straight movement. It can be equipped with single or Multi-level screen to achieve the
goal of grading, impurity-removing, testing, washing, dehydration etc.
Working principle- Fertilizer Linear Vibrating Screen
Fertilizer Linear Vibrating Screen mainly consists of the eccentric block vibrator,
screen box, motor, and supportive device. Through the flexible coupling,
the motor drives the eccentric block of the vibrator at high rotary speed, generating
the centrifugal force, and then lead the screen box to do circular movement by the
amplitude. After that, the materials in the slope screen surface will be cast continuously
by the force generated from the screen box, then realize the purposeof classifying.
Product parts- Fertilizer Linear Vibrating Screen
1. Screen box, 2. Screen frames, 3. Screen mesh, 4. Vibration motor, 5. Electric pedestal,
6. Damping spring, 7. Support frame, 8. Rubber ball
Application- Fertilizer Linear Vibrating Screen
1) Chemical industry: resin pigment, medicine, grease, paint, palette, etc.
2) Abrasive material : building sand, mica, alumina, abrasive, slurry, etc.
3) Food industry: sugar, salt, yeast powder, pollen, food additive, bean milk, juice, etc.
4) Paper-making industry: coated slurry, exhaust liquid, etc.
5) Metallurgy and mining industry: quartz sand, ore, titanium oxide, zinc oxide, etc.
6) Mechanical industry: casting sand, powder metallurgy, metal powder, etc.
Advantages- Fertilizer Linear Vibrating Screen
1. High sieving efficiency, continuous working.
2. Screen has long service life, easy to maintenance.
3. Sieve body parts are made of rolling welded steel plate, so the overall stiffness
is good, solid and reliable.
Technical parameters- Fertilizer Linear Vibrating Screen
| Type | JZZSF- 520 | JZZSF- 525 | JZZSF- 530 | JZZSF- 1020 | JZZSF- 1025 | JZZSF- 1030 |
| Screen size (mm) | 500*2000 | 500*2500 | 500*3000 | 1000*2000 | 1000*2500 | 1000*3000 |
| Particle size (mm) | 0.074-10 | 0.074-10 | 0.074-10 | 0.074-10 | 0.074-10 | 0.074-10 |
|
Vibration frequency (rpm) |
960 | 960 | 960 | 960 | 960 | 960 |
| Screen angle ( °) | 1°- 7° | 1°- 7° | 1°- 7° | 1°- 7° | 1°- 7° | 1°- 7° |
| Amplitude (mm) | 1- 4.5 | 1- 4.5 | 1- 4.5 | 1- 4.5 | 1- 4.5 | 1- 4.5 |
| Screen layer | 1-6 | 1-6 | 1-6 | 1-6 | 1-6 | 1-6 |
| Power (kw) | 2*(0.4-0.75) | 2*(0.4-0.75) | 2*(0.4-0.75) | 2*(0.4-1.1) | 2*(0.4-1.1) | 2*(0.4-1.5) |
Product kinds- Fertilizer Linear Vibrating Screen
Producing process- Fertilizer Linear Vibrating Screen
Certification- Fertilizer Linear Vibrating Screen
CE, BV, ISO9001, Supplier Assessment, Letter of Patent, Quality Authentication.
Delivery Detail- Fertilizer Linear Vibrating Screen
15 days after deposit.
Packaging- Fertilizer Linear Vibrating Screen
Fumigation-free wooden case
Waterproof, anti-corrosion, difficult to burn, sturdy and durable
Professional service- Fertilizer Linear Vibrating Screen
Our products are sold in China and abroad in over 15 countries;
We will send you an engineer to abroad help for the machine setup and training your workers.
Why choose us?
Jinzhen Machinery Manufacturing
We are specialized in manufacturing vibrating screen and many kinds of machinery for 25 years.
BEST QUALITY+ REASONABLE PRICE+ PROFESSIONAL SERVICE= JINZHEN
