Used Wood Crusher Wood Pallet Crusher Wood Chip Crusher

Used Wood Crusher Wood Pallet Crusher Wood Chip Crusher thumbnail-1
Used Wood Crusher Wood Pallet Crusher Wood Chip Crusher photo-1
US$ 4,900 - 58,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, metal scrap crushing machine
Application:
plastic, rubber, fiber, paper, wood, iron drum, industrial waste etc
Contact Supplier Request Quote Chat Now
Xinxiang City Jinzhen Machinery Manufacturing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Qingdao Dalian tianjin of china
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Other, metal scrap crushing machine
Application plastic, rubber, fiber, paper, wood, iron drum, industrial waste etc
Motor Type AC Motor
Power(W) 7.5-30*2
Capacity(t/h) customed
Place of Origin Henan, China
Brand Name JINZHEN
Model Number JZC-1
Dimension(L*W*H) As your request
Weight As your request
Certification CE,ISO900, CE
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas

Used wood crusher wood pallet crusher wood chip crusher



Product Description

Double shaft shredding machine and shearing cutting machine, is through the cut, tear and squeezing, reaching to decrease the size of raw material. The shredding machine is widely used for waste plastics, waste rubber, timber and other waste materials. High production efficiency, mechanized feeding way, high automation degree, greatly reduces the labor intensity of workers, improve the working environment.

Used wood crusher wood pallet crusher wood chip crusher



The application of the shredding machine generally includes:

1, Waste plastic bucket, plastic bottle, waste pipe, thin film, etc ;

2, Rubber, old tires, conveying belt, waste shoes, etx;

3, Old furniture, television, computer, wood, paper, cloth, leather, etc.

4, Steel, waste steel wire, color steel plate, paint buckets, cans, waste metal, etc.

5. Wood, waste wood pallet, plank, waste wood floor, wood packing case.

6, Waste cloth, fabric,  carpet,  medical waste,  gauze,  bandage etc.





Used wood crusher wood pallet crusher wood chip crusher

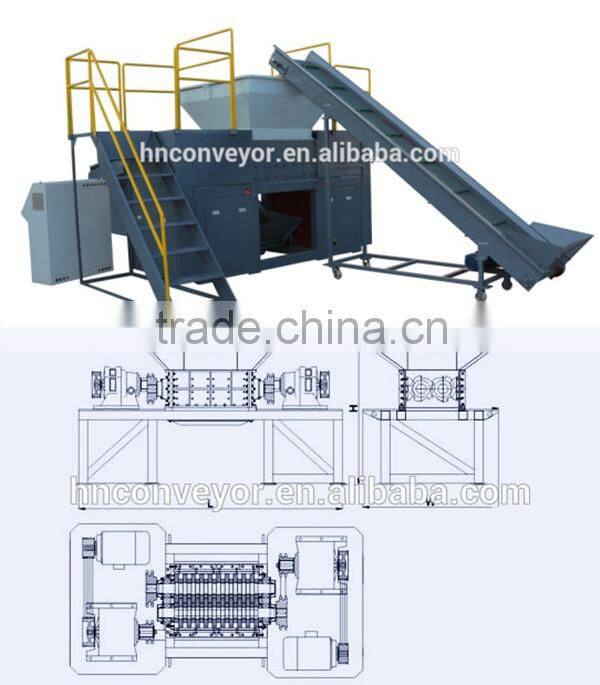

Main structure of this shredder:

Spindle bearings on both sides of main shaft, through motor and reduction gear, rotary main shaft drives the spiral arrangement blades, make the blades on two shafts are meshing together, to tear, raw materialss, and repeating this move to finished shredding. electronic control parts has a Reverse automatic control devices, when overfeeding or raw materila is too big, Machine will inverted running and stop, avoid damage of blades or motor. To improve the service life and cutting ability, the main shaft through conditioning processing, and use high quality imported blades.



Used wood crusher wood pallet crusher wood chip crusher





Advantages:



Fully Automatic System-

Adopts automatic control circuit, it has 4 control functions: start, stop, reverse and overload automatic inversion.

Low speed & Large torque-

Hexagon shap shafts, can stongly stuck blades and prevent slipping

Separable type bearings technology design-

Can quickly and efficiently to replace bearings and blade.

High efficiency-

The shear strength, even discharging granularity, Energy saving, environmental protection. wear small, long service life.



Blade and Shaft of Shredder machine:

 Used wood crusher wood pallet crusher wood chip crusher





Technical Date of metal scrap crushing machine:



 Series

Model

Power

(kw)

Shaft  diameter

mm

Shredding area

mm

Blade thickness

mm



Rotate speed

r/min

Blade number

25

25-50

11

250

500*500

25

30

  20

30

30-60

15

300

650*600

30

25

  20

30-1000

18.5*2

300

650*1050

30

20

  34

30-1200



22*2

300

650*1250

30

18

  40

40

40-1200

30*2

400

850*1250

40

15

  30

40-1500

37*2

400

850*1550

50

15

  30

40-2000

45*2

400

850*2050

50

12

  40

56

56-1200

55*2

560

1200*1200

100

9.8

  12

56-2000

75*2

560

1200*2000

100

9.8

  20

The thickness of balde are different: 15mm; 20mm; 30mm; 40mm; 50mm; 85mm; 100mm;

There are single claw, double claws,  three claws;  multi-claws.

The blade should  according to the raw material and diacharging size.

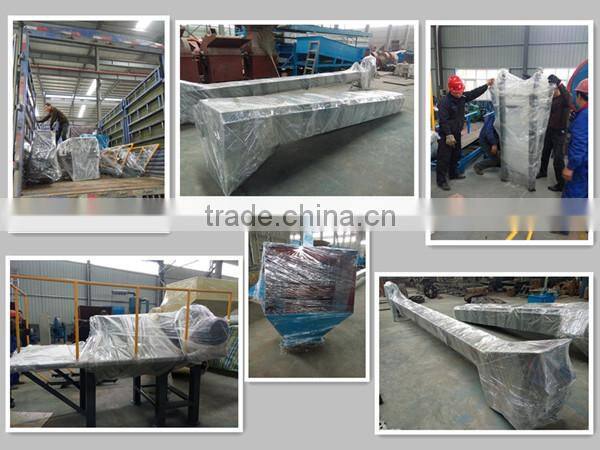

Packing and Shipping

1.We arrange shipment usually according to your special requirements.

2. We will packing machine with plastics foam and  plastic wrap to protect, Single machine will ship with wooden case usually, production line usually delivery with  container directly.

Used wood crusher wood pallet crusher wood chip crusher







Company Information

 We love to make long-term service

We specialize in this crusher field for 16 years, with best quality, best service and competitive price, and we are 5th year Alibaba Gold supplier. More service we can provide:

1. Customize & OEM is available.

 2. Consumable parts for free distribution.

3. Our engineer are available to service oversea.

 4.Professional Free Design

5. Respect clients; Devote ourselves to improving the total value
6.12 months warranty



Used wood crusher wood pallet crusher wood chip crusher

Used wood crusher wood pallet crusher wood chip crusher

Used wood crusher wood pallet crusher wood chip crusher



FAQ

More question:

What about the quality of your products?
1. We have a special training for each worker.
2. We use China famous brand spare parts, motors, reduction gears, blades and shaft.
3. Have a test run before leave the factory.

 How to get a suitable machine?

1. What is the raw material?
2. What is the dimension of the input material and outpout material?
3. What is the handle capacity do you want?

4. power condition?
Tell me above information, we can help you choose the suitable model for you.

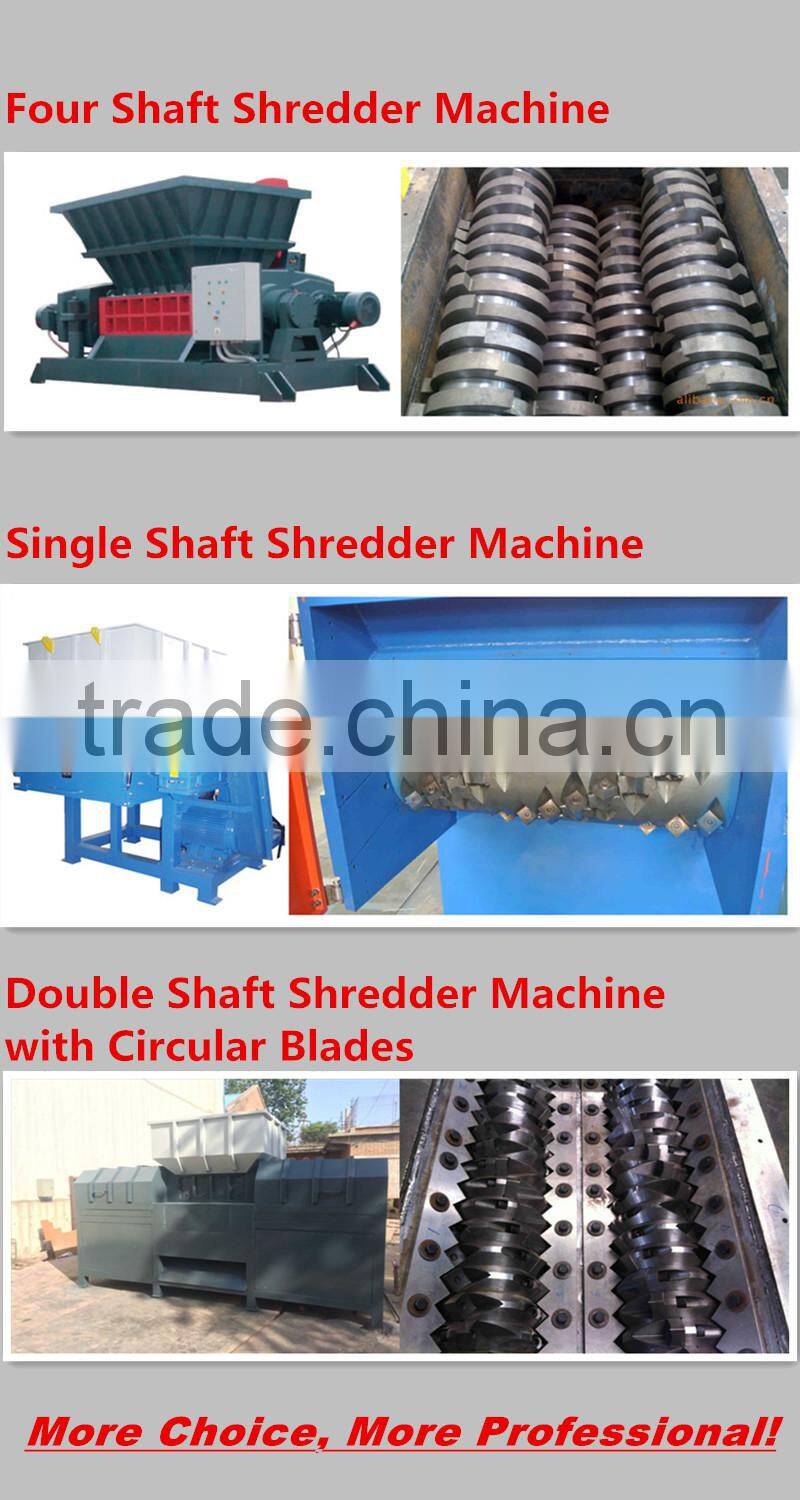

Shredding machine production line:

There are more choice: Single shaft shredder; Double shaft shredder; Four shradder.

Used wood crusher wood pallet crusher wood chip crusher



Please feel free to contact me any time with any question

I'm waiting for you!

Used wood crusher wood pallet crusher wood chip crusher
