JZC-8FA(4181) Miniature Relay-PCB Relay
US$ 0.1 - 0.3
MOQ: 500 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
SENTAI
Model Number:
JZC-8FA(4181) Miniature Relay-PCB Relay
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo/shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Zhejiang, China
Brand Name
SENTAI
Model Number
JZC-8FA(4181) Miniature Relay-PCB Relay
Theory
Voltage Relay
Usage
PCB
Size
Miniature
Protect Feature
Sealed
Contact Load
Low Power
Specifications
JZC-8FA(4181) Miniature Relay-PCB Relay1)CE ROHS Attestation
2)The Most Comparative Price
3)Different type for Selection
-------------------------------------------------------------------
JZC-8FA(4181)Miniature Relay-PCB Relay
-------------------------------------------------------------------
-------------------------------------------------------------------
Specification
| Contact | Contact form | 1C | |
| Rated load | 6A/14VAC(GEN),15A/14VDC(RES) | ||
| Operating power(Resistive) | 84W(GEN),210W(RES) | ||
| Contact resistance(Initial) | ≤100mΩ | ||
| Material | Ag alloy | ||
| Electrical life(1S,1S) | ≥105 cycles(1800 Ops/h) | ||
| Mechanical life(300/1) | ≥107 cycles(1800 Ops/h) | ||
| Operate voltage(at 25°C) | ≤60%Rated voltage | ||
| Release voltage(at 25°C) | ≤10%Rated voltage | ||
| Max.Allowed voltage(at 25°C) | 3~24VDC | ||
| Insulation resistance | ≥100MΩ(500VDC) | ||
| Coil power consumption | DC(W) | 0.6W,0.36W | |
| Operate time(Rated voltage) | ≤10ms | ||
| Release time(Rated voltage) | ≤5ms | ||
| Dielectric Strength | Between contacts | 500VAC/1min(Leakage current 1 mA) | |
| Between contact and coil | 500VAC/1min(Leakage current 1 mA) | ||
| Ambient temperature | -30~+85°C(Use),-40~+100°C(store) | ||
| Shock resistance | Functional 10G, Destructive 100G | ||
| Vibrtion resistance | 10~50Hz Dual amplitude:1.5mm | ||
| Install model | solder mount | ||
| Terminal | PCB terminal | ||
| Weight | Approx5.7g | ||
Coil Type(25°C)
| Rated voltage V.DC(0.36W) | 6 | 9 | 12 | 24 | |
| Coil resistanceΩ(±10%) | 100 | 225 | 400 | 1600 | |
| Rated voltage V.DC(0.6W) | 6 | 9 | 12 | 24 | |
| Coil resistanceΩ(±10%) | 60 | 235 | 240 | 960 | |

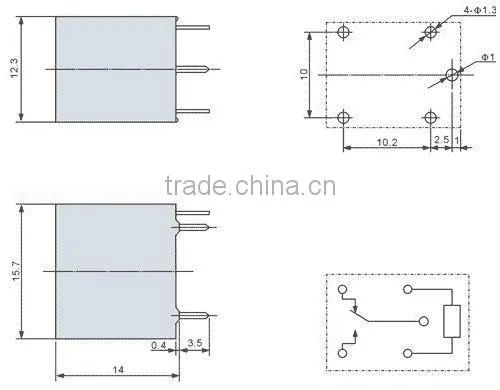

Outline Dimensions And Wiring Diagram
