Help CenterMiniature Relay-PCB Relay
US$ 0.1 - 0.3
MOQ: 500 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
SENTAI
Model Number:
JQC-3F(T73) PCB relay
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo/shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
JQX-15F(T90) Miniature Relay-PCB RelayUS$ 0.1 - 0.3MOQ: 500 Pieces -
JQX-16F(T91) Miniature Relay-PCB RelayUS$ 0.1 - 0.3MOQ: 500 Pieces
-
JQX-30F(T93) Miniature Relay-PCB RelayUS$ 0.1 - 0.3MOQ: 500 Pieces
-
JQX-76F Miniature Relay-PCB RelayUS$ 0.1 - 0.3MOQ: 500 Pieces
-
JRC19F(4078) Miniature Relay-PCB RelayUS$ 0.1 - 0.3MOQ: 500 Pieces
Place of Origin
Zhejiang, China
Brand Name
SENTAI
Model Number
JQC-3F(T73) PCB relay
Theory
Voltage Relay
Usage
PCB
Size
Miniature
Protect Feature
Sealed
Contact Load
Low Power
Specifications
Miniature Relay-PCB Relay1)CE ROHS Attestation
2)The Most Comparative Price
3)Different type for Selection
-------------------------------------------------------------------

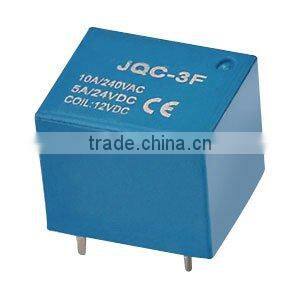

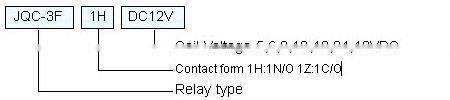

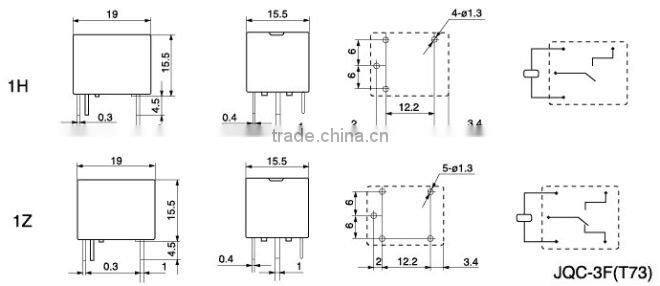

JQC-3F(T73) PCB relay:
-------------------------------------------------------------------
-------------------------------------------------------------------
JQC-3F :Relay type
1H:Contact form 1H:1N/O 1Z:1C/O
DC12V:Coil voltage:5,6,9,12,18,24,48VDC
Contact data
| Contact Ratings | 1H / 1Z | |
| Contact Resistance | 50mΩ (1A 6VDC) / 50mΩ (1A 6VDC) | |
| Contact capacity | 5A 240VAC / 30VDC | |
Specification
| Insulation Resistance | 100MΩ | |
| Dielectric Strength | BCC 1500Vrms | |
| BOC 750Vrms | ||
| Operate Time | 10ms /≤5ms | |
| Terminal Type | PCB | |
Coil data
| Nominal Voltage VDC | Pull-in Voltage VDC |
Release Voltage VDC |
Coil ResistanceΩ:±10% | |||||||
| 3 | 2.40 | 0.3 | 25 | |||||||
| 5 | 4.00 | 0.5 | 70 | |||||||
| 6 | 4.80 | 0.6 | 100 | |||||||
| 9 | 7.20 | 0.9 | 225 | |||||||
| 12 | 9.60 | 1.2 | 400 | |||||||
| 18 | 14.4 | 1.8 | 900 | |||||||
| 24 | 19.2 | 2.4 | 1600 | |||||||
| 48 | 38.4 | 4.8 | 4500 | |||||||
