Help CenterDG-501M Insulation Tester
Negotiable
MOQ: 60 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Model Number:
DG-501M
Display Type:
Digital Only
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Zhejiang, China
Model Number
DG-501M
Display Type
Digital Only
Measuring Range
2M~2000M©
Testing Voltage
ACV: 0~600V
Operating Temperature
0~40 ,25%-80%RH
Dimensions
163*100*44mm
Specifications
DG-501M Insulation testerRange(ohm):2M,20M,200M,2000M
ACV:0~600V, Out voltage:500V +(-) 10%
Fuse:5*20mm(250V/0.5A)......

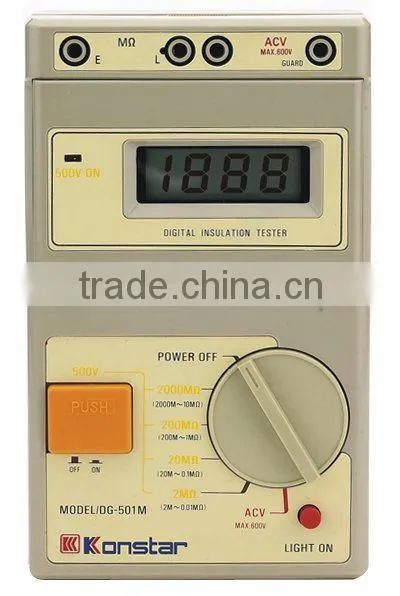

DG-501M Insulation tester
Specification
| DG-501M MAIN SPECIFICATION | |||
| Range | Measuring range | Accuracy | Remarks |
| 2000MΩ | 10MΩ1999MΩ | ±4%±4dgt | 500MΩ1999MΩ ±5%±2dgt |
| 200MΩ | 1MΩ199.9MΩ | ±2%±4dgt | |
| 20MΩ | 0.1MΩ19.99MΩ | ±2%±5dgt | |
| 2MΩ | 0.01MΩ1.999MΩ | ±2%±5 | |
| ACV | 0600V | ±1%rdg ±1%fs ±2dgt |
40Hz2kHz 10MΩ |
| Out voltage | 500V ±10% | ||
| Battery check | The sign B is display automatically | ||
| Fuse | Φ5×20mm (250V/0.5A) | ||
| Dimension | 163×100×44mm | ||
| Weight | 450g (including battery) | ||
| Operating conditions | 040 ,25%-80%RH | ||
| Power source | 1.5V(R6) 6 pcs | ||
| Accessories | Test leads | ||
| Packaging parameters | |||
| QTY | 40 pcs | G.W./N.W. | 21/19kg |
| MEAS | 57×37×30.5cm | ||
| Packaging style | Color box (default) | ||
......Other more products or have further enquiry, welcome to contact me.
