Global Hot Sale DVC6200 Digital Valve Controller

Global Hot Sale DVC6200 Digital Valve Controller thumbnail-1
Global Hot Sale DVC6200 Digital Valve Controller thumbnail-2

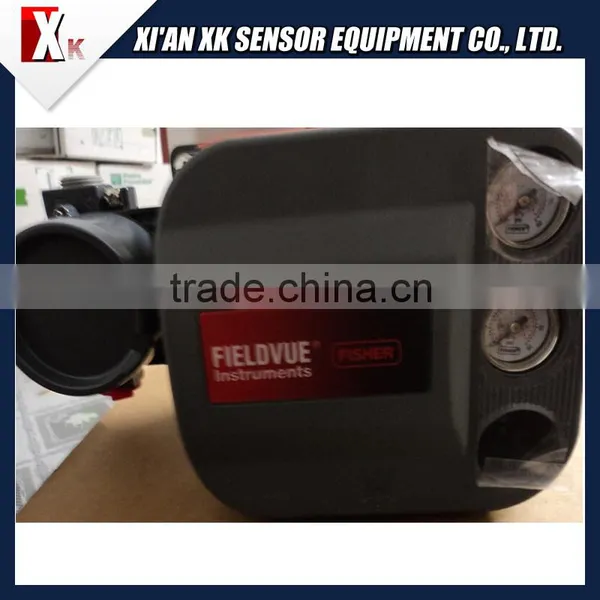

Global Hot Sale DVC6200 Digital Valve Controller photo-1
Global Hot Sale DVC6200 Digital Valve Controller photo-2
US$ 100 - 4,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Singapore
Brand Name:
Fisher
Model Number:
DVC6200, DVC6200
Contact Supplier Request Quote Chat Now
Xian XK Sensor Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Xi`an or any port in China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Singapore
Brand Name Fisher
Model Number DVC6200, DVC6200

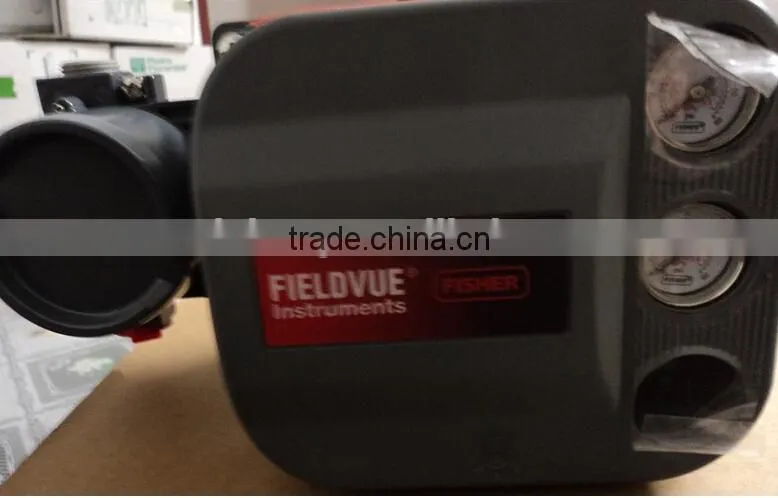

 DVC6200 Digital Valve Controller









Product Description





DVC6200 digital valve controllers (figures 1 and 2) are communicating, microprocessor based current to pneumatic instruments. In addition to the normal function of converting an input current signal to a pneumatic output pressure, the DVC6200 digital valve controller, using the HART? communications protocol, gives easy access to information critical to process operation. You can gain information from the principal component of the process, the control valve itself, using the Field Communicator at the valve, or at a field junction box, or by using a personal computer or operator's console within the control room.



Using a personal computer and ValveLink software or AMS Suite: Intelligent Device Manager, or a Field Communicator, you can perform several operations with the DVC6200 digital valve controller. You can obtain general information concerning software revision level, messages, tag, descriptor, and date.



  Global hot sale DVC6200 digital valve controller Global hot sale DVC6200 digital valve controller

Figure



1. FIELDVUE DVC6200 Digital Valve Controller Mounted on a Fisher Sliding-Stem Valve Actuator W9643 Figure



2. FIELDVUE DVC6200 Digital Valve Controller Integrally Mounted to a Fisher GX Control Valve





Communication Protocol

HART 5 or HART 7
Input Signal : Point  - to  - Point

Analog Input Signal: 4 - 20 mA DC, nominal; split ranging available
Minimum Voltage Available at Instrument Terminalsmust be 10.5 VDC for analog control, 11 VDC for HART communication
Minimum Control Current: 4.0 mA
Minimum Current w/o Microprocessor Restart: 3.5 mA

Maximum Voltage: 30 VDC Overcurrent protected ,Reverse Polarity protected , Multi - drop.

Instrument Power: 11 to 30 VDC at 10 mA ,Reverse Polarity protected

Supply Pressure
Minimum Recommended: 0.3 bar (5 psig) higher thanmaximum actuator requirements
Maximum: 10.0 bar (145 psig) or maximum pressurerating of the actuator, whichever is lower

Supply Medium : Air or Natural Gas
Air: Supply pressure must be clean, dry air that meetsthe requirements of ISA Standard 7.0.01. A maximum40 micrometer particle size in the air system is acceptable. Further filtration down to 5 micrometerparticle size is recommended.

Natural Gas: Natural gas must be clean, dry, oil-free, andnoncorrosive. H2S content should not exceed 20 ppm.
Output Signal
Pneumatic signal,up to 95% of supply pressure

Minimum Span: 0.4 bar (6 psig)

Maximum Span: 9.5 bar (140 psig)

Action: Double, Single Direct or Reverse

Steady - State Air Consumption
At 1.4 bar (20 psig) supply pressure: Less than0.38 normal m3/hr (14 scfh)
At 5.5 bar (80 psig) supply pressure: Less than1.3 normal m3/hr (49 scfh)

Maximum Output Capacity
At 1.4 bar (20 psig) supply pressure: 10.0 normal m3/hr(375 scfh)
At 5.5 bar (80 psig) supply pressure: 29.5 normal m3/hr(1100 scfh)
Operating Ambient Temperature Limits
 -40 to 85 C ( -40 to 185 F)
 -52 to 85 C ( -62 to 185 F)

for instruments utilizing theExtreme Temperature option (fluorosiliconeelastomers)
Independent Linearity
Typical Value:±0.50% of output span

Electromagnetic Compatibility
Meets EN 61326 - 1 (First Edition)
 Immunity - Industrial locations per Table 2 of the  EN 61326 - 1 standard. Emissions - Class A
  ISM equipment rating: Group 1, Class A

Vibration Testing Method
Tested per ANSI/ISA - S75.13.01 Section 5.3.5.

Input Impedance
An equivalent impedance of 550 ohms may be used.This value corresponds to 11V@20 mA.

Humidity Testing Method
Tested per IEC 61514 - 2



Term & Payment :



1. Payment: T/T in advance or PayPal, Western Union

2. Delivery time : 4-6 weeks working days after receiving payment

3. Shipment: Express (FedEx, DHL, UPS & TNT) or forwarder

4. 7 days  free replace & 1 year free repair for quality warranty
