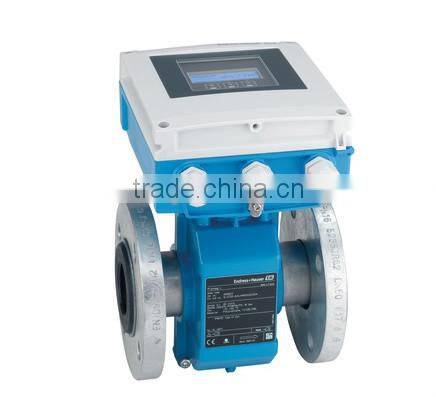

High quality Germany endress hauser L 400 magnetic water flow switch
1. Product Description:
Promag L is the versatile standard sensor designed for the water industry with a lap-joint flange concept for flexible installation independent of the orientation of the pipe flange pitch diameter. Combined with Proline 400, the transmitter for optimized measurement of water and wastewater, Promag L 400 will be the preferred solution for all standard applications in this industry. Promag L 400 also offers an integrated web server. Integrated verification with Heartbeat Technology.
2. Benefits:
Reduced installation costs – flexible mounting by one-of-a-kind lap-joint flange concept (DN < 350/14")
Energy-saving flow measurement – no pressure loss due to cross-section constriction
Maintenance-free – no moving parts
Safe operation – no need to open the device due to display with touch control, background lighting
Time-saving local operation without additional software and hardware – integrated web server
Integrated verification – Heartbeat Technology™
3. Field of Applications:
The measuring principle is virtually independent of pressure, density, temperature and viscosity
Fully suitable for standard applications in the water and wastewater industry.
Device properties
Up to 30% less sensor weight
Nominal diameter: DN 25 to 2400 (1 to 90")
Maximum reduced installation length to DVGW/ISO
Transmitter housing made of durable polycarbonate or aluminium
Same housing concept for compact/remote version
Integrated data logger: measured values monitoring
4. Specifications:
| Measuring Principle | Electromagnetic | |
| Product headline |
The flowmeter with integrated web server and a weight optimized sensor. Fully suitable for standard applications in the water and wastewater industry. |
|
| Sensor features |
Reduced installation costs: flexible mounting by one of a kind lap-joint flange concept (DN < 350/14"). Energy-saving flow measurement : no pressure loss due to cross section constriction. Maintenance free: no moving parts. Up to 30 % less sensor weight. Nominal diameter: DN 25 to 2400 (2 to 90"). |
|
| Transmitter features |
Safe operation: no need to open the device due to display with touch control, background lighting. Time-saving local operation without additional software and hardware integrated web server. Integrated verification Heartbeat Technology. Transmitter housing made of durable polycarbonate or aluminium. Same housing concept for compact/remote version. |
|
| Nominal diameter range |
Lap joint flange, lap joint flange, stamped plate: DN 25 to 300 (1 to 12") Fixed flange: DN 350 to 2400 (14 to 90") |
|
| Wetted materials |
Liner: PTFE; Polyurethane; Hard rubber Electrodes: 1.4435 (316L); Alloy C22, 2.4602 (UNS N06022) |
|
| Measured variables | Volume flow, conductivity, mass flow | |
| Max. measured error |
Volume flow (standard): ±0.5 % o.r. ± 1 mm/s (0.04 in/s) Volume flow (option): ±0.2 % o.r. ± 2 mm/s (0.08 in/s) |
|
| Measuring range | 9 dm³/min to 162 000 m³/h (2.5 gal/min to 1030 Mgal/d) | |
| Max. process pressure | PN 16, Class 150 | |
| Medium temperature range |
Liner material hard rubber: 0 to +80 °C (+32 to +176 °F) Liner material polyurethane: -20 to +50 °C (-4 to +122 °F) Liner material PTFE: -20 to +90 °C (-4 to +194 °F) |
|
| Ambient temperature range |
Flange material carbon steel: -10 to +60 °C (+14 to +140 °F) Flange material stainless steel:-40 to +60 °C (-40 to +140 °F) |
|
| Sensor housing material |
DN 25 to 300 (1 to 12"): AlSi10Mg, coated DN 350 to 2400 (14 to 90"): Carbon steel with protective varnish Sensor connection housing: AlSi10Mg, coated |
|
| Transmitter housing material | Polycarbonat; AlSi10Mg, coated | |
| Degree of protection |
Compact version: IP66/67, type 4X enclosure Sensor remote version (standard): IP66/67, type 4X enclosure Sensor remote version (option): IP68, type 6P enclosure Transmitter remote version: IP66/67, Type 4X enclosure |
|
| Display/Operation |
4-line backlit display with touch control (operation from outside) Configuration via local display, web browser and operating tools possible |
|
| Outputs |
3 ouputs: 0-20 mA/4-20 mA HART (active) Pulse/frequency/switch output (passive) Pulse/frequency output (passive) Switch output (passive) |
|
| Inputs | Status input | |
| Digital communication | HART, PROFIBUS DP, EtherNet/IP, Modbus RS485 | |
| Power supply | AC 100 to 240 V / AC/DC 24 V | |
| Hazardous area approvals | cCSAus | |
| Other approvals and certificates | Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025), NAMUR Drinking water approval: ACS, KTW/W270, NSF 61, WRAS BS 6920 | |
