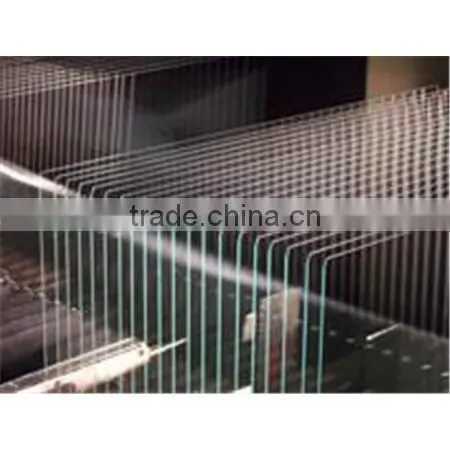

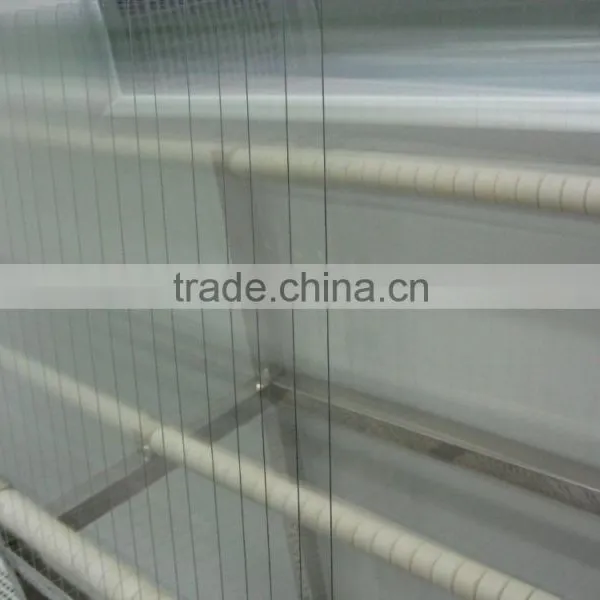

ITO Glass is manufactured through coating ITO transparent conductive layer on single side or double sides of glass according to the advanced technology of vacuum magnetron sputtering. It is the critical material for producing resistive or capacitive touch screens. When used on LCD, a SiO2 layer should be added before coating ITO layer on glass to prevent the ions of glass substrate from penetrating into the conductive layer. If it is requested for higher transmittance, one or multiple AR (anti-reflective) layers can be added before coating ITO layer on glass, thus making it the high-transmittance ITO conductive glass.
Features:
Resistance Uniformity: ≤±0.1
Film Thickness Uniformity: ≤±0.1
Good adhesive force
Good etching property
Good resistance to acid and alkali
Performance Parameters:
|
Items |
Values |
Testing methods |
|
Transmittance |
≥88% |
Tested by visible light spectrophotometer |
|
Square resistance |
15-1500 |
Four-probe measurement |
|
Surface hardness |
≥3H |
Pencil scratch tester(Mitsubishi Pencil) |
|
Alkali resistance |
≤110% |
Soaking in 10% NaOH for 5min. |
|
Acid resistance |
≤110% |
Soaking in 6% HCL for 2min. |
|
Solvent resistance |
≤110% |
Soaking in acetone or absolute |
|
Adhesive force |
No damage on film |
Referring to adhesive test in GB/T 5270,attaching 3M tape on the film surface and removing air, placing for 10s, tearing the tape quickly with a vertical degree to surface. |
Specifications:
Thickness: 2.0mm; 1.1mm; 0.7mm; 0.55mm; 0.4mm; 0.3mm; etc. (with ±0.05mm tolerance)
Size: 14*14"; 14*16"; 20*24";
355.6*406.4mm; 370*470mm; 400*500mm,450*550mm;550*650mm; etc.
Resistance:
High (150-500Ω) used for ESD protection, Touch Screen control;
Average (60-150Ω) used for TN-LCD, electronic anti-interference;
Low (<60Ω) used for STN-LCD, transparent circuit board, etc.
Applications:
ITO Glass, as a kind of TCO glass, is mainly used to produce display screen, touch screen, mobile phone panel, home appliance panel and others.

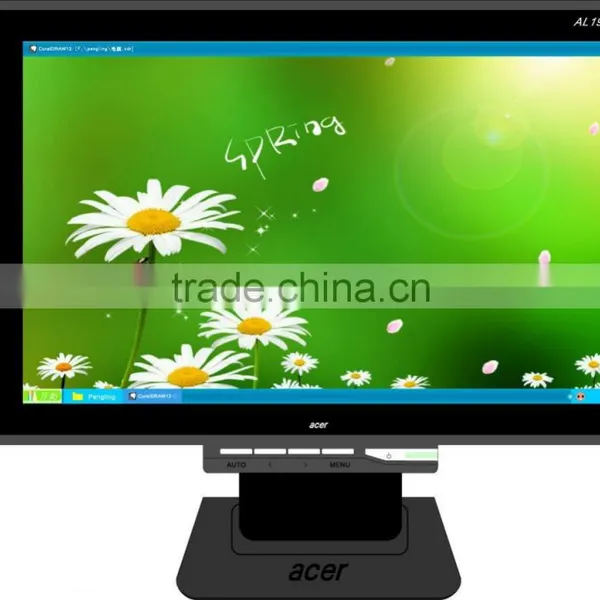

ITO Glass used for TN-LCD/HTN-LCD/STN-LCD/TFT-LCD/PDP/OLED/VFD/LCOS in the application of vehicle, consumer electronics, industrial products, LCD (liquid crystal display):
surface resistance: 3.5-100Ω
thickness: 0.4-1.1mm

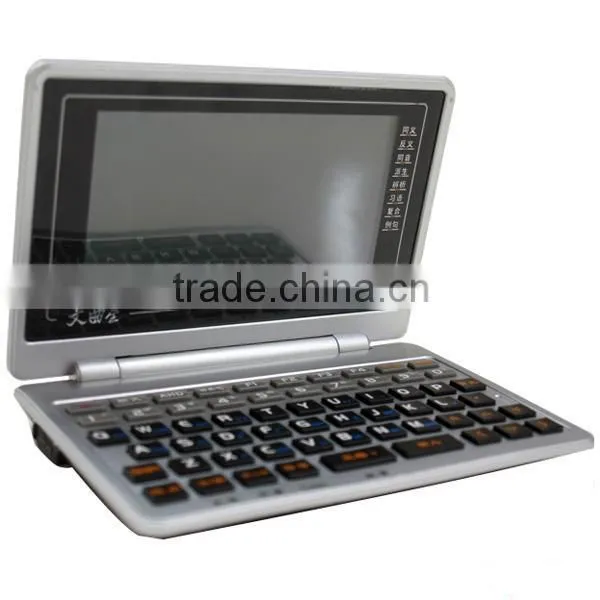

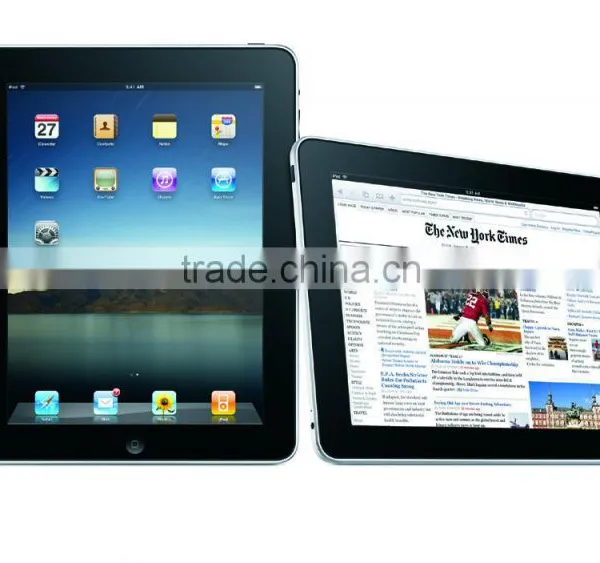

ITO Glass used for touch screen in the application of mobile phone, displayer, GPS, PDA, instruments and apparatuses, etc.
surface resistance: 150-600Ω
thickness: 0.4-3.0mm
