Home > Construction & Decoration > Building Glass > Insulated Glass > Low-E Glass

Low-E Glass

Name: Low-E Glass
Brand: Vonke
SKU: 101435599
Availability: InStock

Negotiable MOQ: 1 Square Meter (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Shandong, China

Brand Name:

Vonke

Model Number:

3mm, 4mm, 5mm, 6mm, 8mm, 10mm, 12mm, 15mm and 19mm

Contact Supplier Request Quote Chat Now

Vonke Material Technology (Shanghai) Co., Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

China Main Port

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Shandong, China

Brand Name Vonke

Model Number 3mm, 4mm, 5mm, 6mm, 8mm, 10mm, 12mm, 15mm and 19mm

Function Heat Reflective Glass, Insulated Glass, Low-E Glass

Shape Flat

Structure Solid

Technique Clear Glass, Coated Glass

Type Float Glass

Low-E Glass is coated with low-E material-Silver, other low-E materials and metallic compound film over the surface of the glass, making the glass’s emissivity reducing from 0.84 to below 0.15. It not only has excellent energy efficiency, but also has decorative effects because of colors, and meanwhile has good processability (easy to be tempered, heat-strengthened, bent, insulating, laminated, etc.), thus becoming the first choice of architectural design. Theory for Energy Efficiency: By decreasing the U-value of glass and selectively lower the shading coefficient (Sc), It enables us to enhance the energy efficiency all sidedly.

Features:

According to the performance indexes, Low-E glass can be classified as single silver Low-E glass, double silver Low-E glass, treble silver Low-E glass

Single silver low-E glass: with higher visible light transmittance and extremely high far infrared reflectance as well as good cold and heat insulation, it is applicable to both the southern areas and the northern ones

Double silver low-E glass: it is high-end low-E glass with higher visible light transmittance and extremely low solar energy transmittance

It is applicable to the commercial buildings with high energy consumption and the glass doors of refrigerators and freezers

Treble Silver Low-E Glass: with lower shading coefficient, it has a stronger restrictive effect on the solar infrared thermal energy than double silver low-E glass. It is the top-grade glass in the field of energy efficiency and only applicable to the special regions with extreme weather (cold or hot) and particular requirements. It has the best energy efficiency, comfortableness and decorative effect.

Product Performances:

Structure		Light Properties		Thermal Properties		U Value
Low-EGlass Low-E glass	Thickness	LT%	LR%	SHGC%	SC	W/m2k AIR
Low-E	5mm	0.81	0.12	0.73	0.85	3.67
Low-E	6mm	0.82	0.109	0.72	0.83	3.69

Product Applications:

Structure		Light Properties		Thermal Properties		U Value
Insulating glass	Thickness	LT%	LR%	SHGC%	SC	W/m2k AIR
Clear+Low-E	6+6+6	0.745	0.186	0.705	0.813	2.527
Clear+Low-E	6+9+6	0.745	0.186	0.712	0.82	2.1
Clear+Low-E	6+12+6	0.745	0.186	0.716	0.825	1.906
Clear+Low-E	6+6+6	0.745	0.186	0.712	0.82	2.107
Clear+Low-E	6+9+6	0.745	0.186	0.718	0.827	1.75
Clear+Low-E	6+12+6	0.745	0.186	0.721	0.83	1.635
Clear+Low-E	5+6+5	0.737	0.197	0.714	0.823	2.529
Clear+Low-E	5+9+5	0.737	0.197	0.721	0.827	2.091
Clear+Low-E	5+12+5	0.737	0.197	0.725	0.835	1.898
Clear+Low-E	5+6+5	0.737	0.197	0.721	0.83	2.101
Clear+Low-E	5+9+5	0.737	0.197	0.726	0.836	1.738
Clear+Low-E	5+12+5	0.737	0.197	0.727	0.837	1.622

Specifications:

Thickness: 3mm, 4mm, 5mm, 6mm, 8mm, 10mm, 12mm, 15mm and 19mm

Size: 2540 x 3300mm

2134 x 3300mm

2134*3600mm

2440 x 3660mm

6000 x 3300mm

12000 x 3300mm

Customized sizes

Applications:

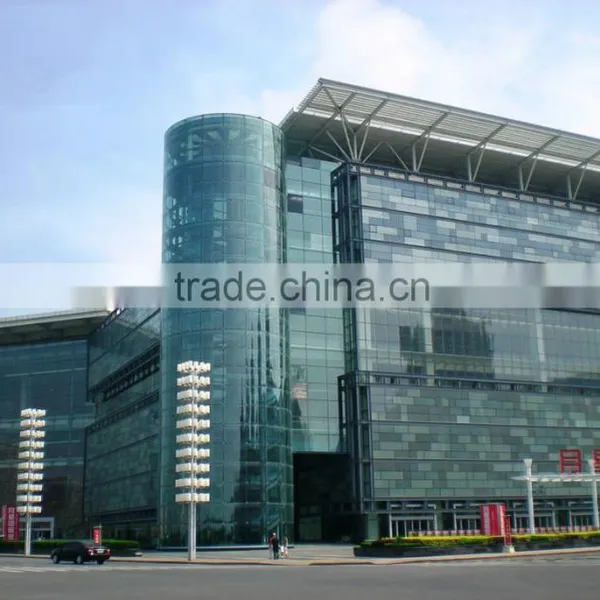

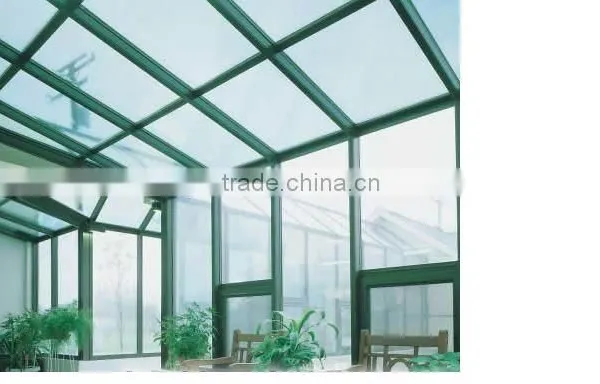

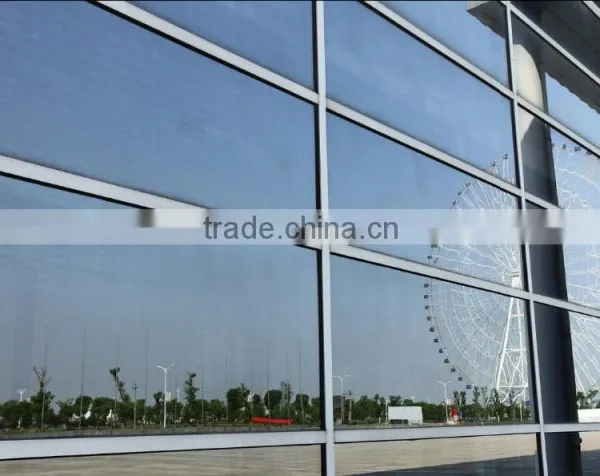

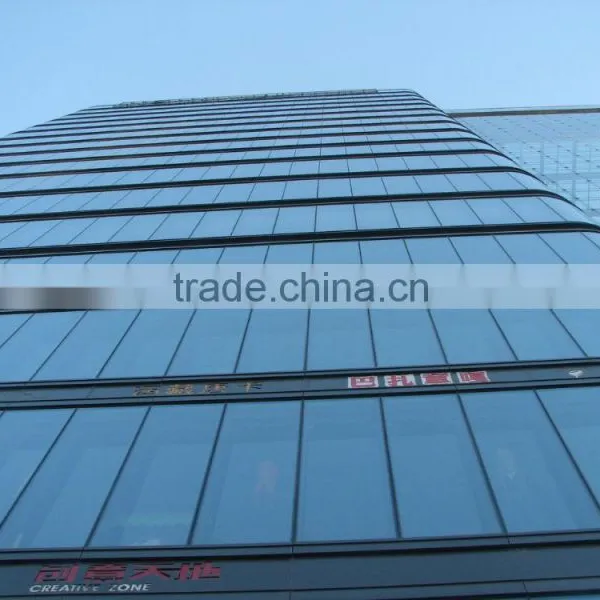

Lowe-E Glass is widely used in glass curtain walls, energy-saving glass doors and windows because of its natural appearance and high transmittance. It is usually processed into insulating glass, the metal oxide coating contributes to the thermal insulation of windows and doors. In winter, silver coatings will reflect heat back to the interior of the building to prevent heat loss; In summer, silver coatings will reduce the re-radiation of heat to make the interior of the building cooler.

Due to its excellent thermal insulation, Low-E Glass can also be used in the fields such as ovens, refrigerator doors, wine cabinets, beverage cabinets, disinfection cabinets and other cabinets.
