TL#009 [ TAEIL ] Ceiling Heating Film , Carbon Heater Film , Floor Heating Film , Underfloor Heating System

TL#009 [ TAEIL ] Ceiling heating film , carbon heater film , Floor heating film , Underfloor Heating system  , reptile heating mat .  Turkeish heating film

2015y. Our products has apporved EAC ( Russian electric safety )

Brings Warm to your life !!

Application of " Taeil Linoa " heating film ( wall , ceiling , underfloor , mirror )

Hotel, Motel, Condo, Institute and School dormitory

It can be controlled all the rooms by only one controller and does not need a boiler room. So, it can have more space and also available re-arrangement and big saving for heating cost by the smart heating system for only necessary space.

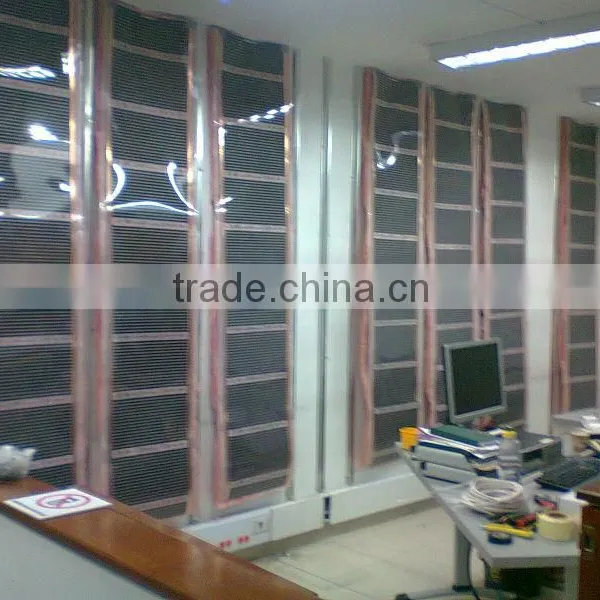

Office, building

Make your office warm and fresh without additional heating equipment, space and complicatedly pouring fuel.

Restaurant

Giving fresh feeling other than using heating equipment, it can be a marketing point by far infrared heating and increase sales and space saving. So, heating cost can be saved.

Pension, Bungalow

It can be the alternative heating method in the place where there is no gas line and easy to carry and no concerns for breakdown. Better service to guests with fresh and healthy heating method.

Kindergarten

Give children bigger and warmer place to play and give them fresh, healthy place by the best heating method with far infrared other than heating equipment.

Hospital

Give patients very healthy heating with far infrared and environment friendly electricity with cost saving is only used and create very fresh hospital.

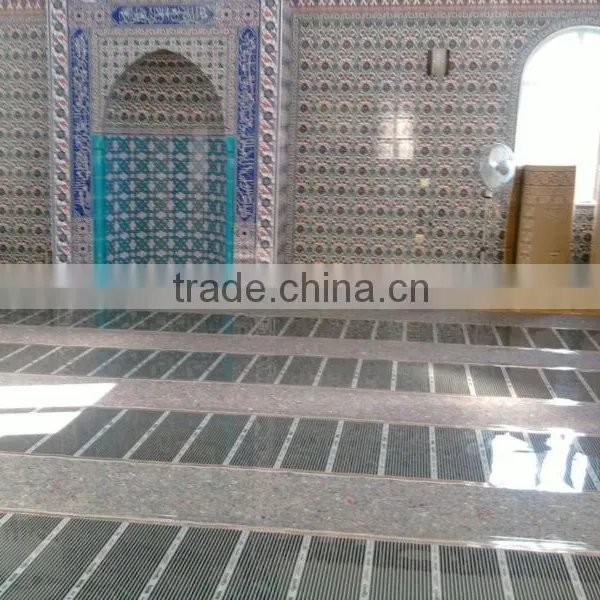

Church, Temple, Training Institute

Give guests fresh feeling and effect of far infrared other than heating equipment.

Container, Steel house

As long as electricity is connected, it can be installed at any place and is light and easy to carry and install.

Balcony of apartment, Remodeling

In apartments, Balcony can be heated with affordable cost without any legal problem due to light weight.

We will show all clients about test report for flexible sheet heating elements for

TEST REPORT

EN 60335-2-96

Safety of household and similar electrical appliances

Part 2 : Particular requirements for flexible sheet heating elements for room heating

Report Reference No. .................... : CPSA0127169

Date of issue .................................... : 2009-07-21

Total number of pages ..................... : 66 Pages

---------------------------------------------------------------------------------------------------

CB/CCA Testing Laboratory.......... : TÜV SÜD Korea Laboratory (TKL)

Address ............................................ :

#315 and 316, MARIO Tower, 222-12, Guro-Dong, Guro-Gu,

152-050, Seoul, Korea

---------------------------------------------------------------------------------------------------

Applicant’s name............................ : TAEIL ELECTRIC CO., LTD.

Address ............................................ : #408-6, 11, Bongyang-dong, Yangju-si, Gyeonggi-do, Korea

---------------------------------------------------------------------------------------------------

Test specification:

Standard ........................................... : EN 60335-2-96:2002 (First Edition) + A1:2003 + A2: 2008 (incl.

Corrigendum 1:2003) in conjunction with EN 60335-1:2001 (4.

Edition) (incl. Corrigendum 1:2002) + A1:2004 + A2:2006 (incl.

Corrigendum 1:2006)

Test procedure ................................. : CCA

Non-standard test method…………..: N/A

----------------------------------------------------------------------------------------------------

Test Report Form No. .................... : IEC60335_2_96C

Test Report Form(s) Originator ........ : KEMA Quality B.V.

Master TRF ...................................... : Dated 2009-10

Copyright © 2009 IEC System for Conformity Testing and Certification of Electrical Equipment

(IECEE), Geneva, Switzerland. All rights reserved.

This publication may be reproduced in whole or in part for non-commercial purposes as long as the IECEE

is acknowledged as copyright owner and source of the material. IECEE takes no responsibility for and will

not assume liability for damages resulting from the reader's interpretation of the reproduced material due to

its placement and context.

If this Test Report Form is used by non-IECEE members, the IECEE/IEC logo and the reference to the CB

Scheme procedure shall be removed.

This report is not valid as a CB Test Report unless signed by an approved CB Testing Laboratory and

appended to a CB Test Certificate issued by an NCB in accordance with IECEE 02.

Thermostats for electric heating System

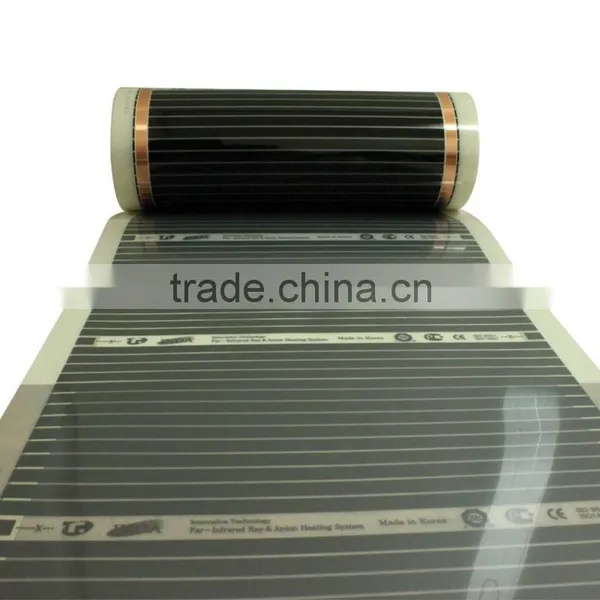

         " Taeil Linoa " FIR Heating sheet !

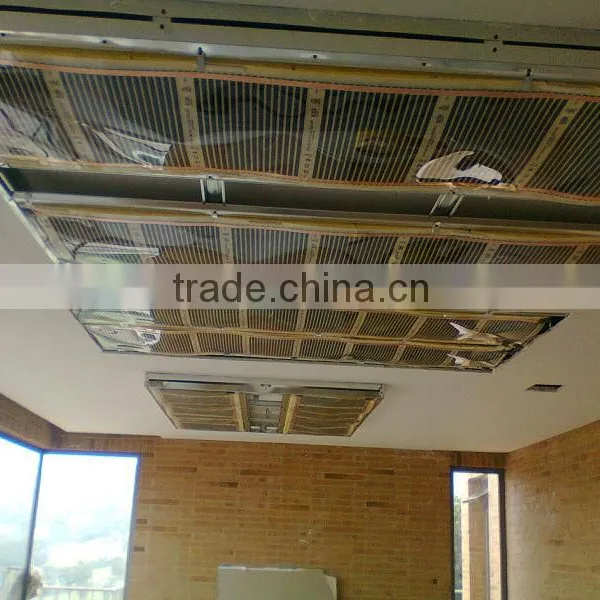

Sub- materials for film heater ( Ceiling heating film )

Characteristics of " Taeil INOA " heating film

*Economical Heating" Taeil INOA "

- 30% cost saving compared to electric heating, 60% cost saving compared to fuel heating !!

- " Taeil INOA "  , heating film can enormously save heating cost by high efficiency convection heating.

- Convection heat by far-infrared ray is the heating system without temperature difference

  and having good heating effects under relatively low power consumption compared to radiation

   heating system.

- It is possible to save the cost additionally by avoiding unnecessary heating by partial heating.

*healthy heating by " Taeil INOA "

-Well being heating system by convection heating by far-infrared ray !!

- " Taeil INOA " , rapid heating is available by high efficiency method and keep fresh air in a room due

   to the benefits of convection heating by far-infrared rays and negative ions from the Carbon heating

   Element covered on the film.

- Convection heat by far-infrared ray is the heating system without temperature difference,

- Good heating effects under relatively low temp compared to radiation heating system.

 * " Taeil INOA "  , easy to install

- Just install it under floor, that’s all !!

- Easy to install, it is completed by just installing film between final material and insulation.

- When renovated, just install film on existing installed floor without taking off it, maximizing

   effects with minimum budget.

*Safe Heating " Taeil INOA "

-Safe heating system without concerns for an accident !!

-Heating method without a flame

-No concerns for an accident by CO gas or heat conduction due to no flame.

-Safely used for facilities for Children or Old people

*Quite and clean heating !!

   -Heating film  " Taeil INOA "  keeps quite and clean in a room due to no sound of combustion fuel,

no working by fuel, no vibration and no blower for ventilation and it is especially good for some

areas like

    hospitals which need to keep quite and clean.

*Semi-permanent heating system " Taeil INOA "

  Semi-permanent heating without concerns for breakdown !!

   -Heating film  " Taeil INOA "  has simple structure and high durability and it can be used for semi-

    permanent without concerns even the place having big impact like the floors of gymnasium.

     It can be used without frozen & break and regular maintenance and move out & re-installation.

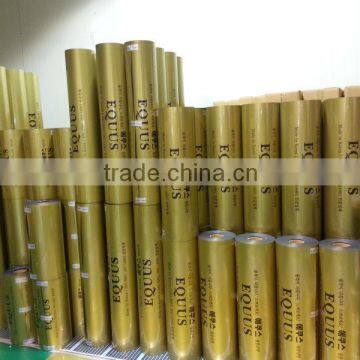

  New Product (Equus Far infrared ray Carbon heating film )

  EVA & EEA

If client are going to use HEATING FILM for High temperature such as the film with over 200 Wattage. Every seller has to explain about EEA, EVA, PE+EVA!!!

The construction of Carbon heating film has 5s Layer as below:

Funcion : EEA & EVA or PE + EVA

  -> This layer are what it is laminate both Base film and Laminating film basically.

      But there are different property of matter For temperature.

         Melting point (Degree)

          a. EEA : over 200 degree (cost : more expensive than EVA 3times)

          b. EVA : under 90 degree (cost : More expensive than PE+EVA 1.5Times)

          c. PE+EVA : Around 180~200degree, BUT they should be occurred Crack in the sheet. so it will possible to occur the spark in some of part.

      the HEATING FILM FOR HIGH TEMPERATURE, It is must be applied the EEA for production. because some time the temperature will reached over 100 degree at some of part.

But Most manufacturer are using EVA or PE + EVA only. Because they want to cut small cost off, and want to provide best price to customer. But quality has downed actually. I hope my experience can be helped for Valuable partner to make business about Heating film.
