Specifications
1. Aircraft Spruce Strobe led aircraft bulb2. Aircraft Wingtip Navigation Light
3. dual mode constant on and strobe mode
Aircraft Wingtip Navigation Light
AIRCRAFT LED WINGTIP NAV LIGHT 7.5W-A-1512 1- dual mode constant on and strobe mode
2 strobe mode = 100ms on/off duty cycle for 3000ms, off for 1000ms, return to strobe mode, repeat until power is removed.
2- constant on the first time power is applied after 2 minutes in off mode.
3- operate 8 continuous hours in constant on mode
4- operate 12 continuous hours in strobe mode
5- Must be able to switch between modes at any time.
6- operating voltage range 10-30v
-
Note: For Experimental aircraft use only. Not FAA/PMA Approved.
NavStrobe Aircraft Wingtip Nav Light 7.5W-A-1512
Rapco Equivalent: 1512,1524,7079B-12,7079B-24,7512-12,7512-24
Emitter Type: Cree LED's
- Total Emitters: 10
- Power: 7.5W
- Color BIN: White
Rated Voltage: 8-30VDC
- Draws <225ma @ 14.2VDC
- Luminous Flux: 13550LM (0 degrees), 836LM (90 degrees)
- Color Temperature: 6000~6500K
- 2 modes: constant & fast strobe

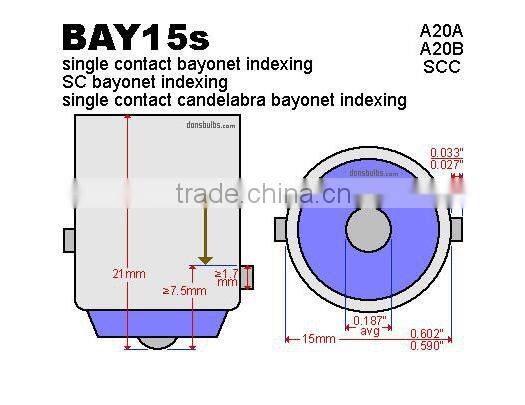

- Base Type: BAY15s = Single contact and single offset pin. (A-1512)
- Application: Wingtip Navigation Light replacement.
- Contains 1 light bulb per pack
Dimensions: 2.0 in x 0.7 in (52 mm x 1.8 cm)
Weight: 0.32 oz (9 g)
Turn on first: Constant lighting / Turn on second time <3s: Fast Strobe. Switch between modes in fog/cloud etc
We can surely help you design and print your logo as long as your order is big enough.
2. Excellent quality control. All products will be tested before shipping by our skilled technicians.
3. Efficient cooperation. Our prompt responsible helpful reply will ensure your happy purchasing.
4. Great after service. There is a one year warranty for all products. We have credible quality control
but if you are not satisfied with our products at all,
we can surely replace you a new one.
If there is any problem, you are welcome to ask for our technical support.
1. Are you a factory or trade company?
We are directly factory and we have been dealing with the auto parts for about 5 years.
2. Is your price competitive?
Yes. Our products are high-quality and our prices are very competitive base on the quality.
3. Why is your price competitive?
First of all, we are directly factory.
Secondly, we have been being in this field for years.
Thirdly, we have the easy access for the material.
blister package,
antistatic package,
nuetral or OEM package
Easy replacement. Works well. Be aware there are two flashing rates, 100ms and 300ms. The faster rate as seen in the video is for aircraft above 150 knots. The slower rate is for aircraft under 150 knots. Something about number of flashes for distance traveled.
Make sure you get the proper flash rate. The two bulbs look identical.
Nice and bright and easy to use.
Do these Navstrobe LED wingtip nav lights come in Red and Green or are they designed to work behind colored lenses?
These are designed to work behind colored lenses. All Navstrobe products except the Sextant product (our part # 11-11987) are designed to operate behind the existing colored lens.
Are these 7.5W Aircraft LED Wingtip Nav Lights legal as direct replacements for a certificated aircraft? Is paperwork necessary to be legal, or just a logbook entry by owner?
No, these are NOT FAA Approved for use in certified aircraft. Use part number 11-11987 for the certified kit.
