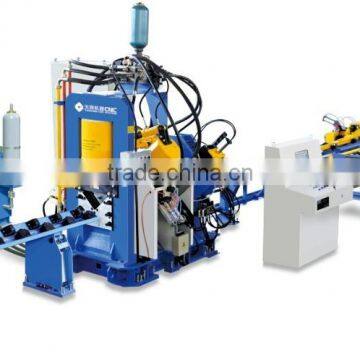

Punching Marking and Cutting Machine Model BL2020 Cnc Angle Line

Punching Marking and Cutting Machine Model BL2020 Cnc Angle Line thumbnail-1
Punching Marking and Cutting Machine Model BL2020 Cnc Angle Line photo-1
US$ 80,000 - 115,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
TIANCHEN
Contact Supplier Request Quote Chat Now
Jinan Tianchen Aluminum Machine Corp., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Shandong, China
Brand Name TIANCHEN
Model Number BL2020
Voltage 380V
Rated Power 42
Dimension(L*W*H) 32000x7000x2700
Weight 16000
Certification ISO9001
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas

  Punching marking and Cutting machine Model BL2020 cnc angle line

1. Technical Specification

1.1 processing angle bar size range:The following specifications angle bars can be cut, punch, and mark

Q345/Q235: 50×50×4~200×200×20mm

16Mn: 50×50×4~200×200×16mm

Maximum punching diameter:φ26

The dimension error and bending should conform to the requirements of GB9787-88.

1.2 Working Unit Parameters

1.2.1 Cutting unit: Enclosed frame body with double-blade cutting.

    The max cutting force will up to 1540KN when the oil pressure is 25Mpa

1.2.2 Punch unit: Enclosed frame body

No. of unit per side:1

No. of punch per unit :3

The max punching force will up to 950KN when the oil pressure is 25Mpa

1.2.3 Punch specification:

For Q345 steel: σb =540MPa

diameter×thickness   26× 20mm

Remark:If the material thickness is over 0.9 times bigger than hole’s diameter, it is suggested not to punch.

1.2.4 back mark positioning stroke:

back mark can be processed out:

50X50X4~100X100X10         minimum back mark =(28+angle bar thickness) mm

110X110~160X160        minimum back mark =(32+angle bar thickness) mm

180X180~200X200        minimum back mark =(37+angle bar thickness) mm

1.2.5 marking unit:

No. Of character group:4

Max. marking force:640KN

Dimension of characters: 16X10X19mm

1.2.6 The max material length at the infeeding part: 14m

1.2.7 The max work piece length at outfeeding part: 12m

1.2.8 CNC axis

The number of CNC axis can be positioned: 3

Infeeding pincer:X axis

Punching unit: A unit, Y axis

Punching unit: B unit, Z axis

1.2.9 axes moving stroke

Slide frame, X axis: 120mm~16000mm

Punching unit, Y axis: +20~170mm

Punching unit, Z axis: +20~170mm

maximum positioning speed:

X axis: 40m/min

Y axis: 5m/min

Z axis: 5m/min

Minimum program increment:

X axis: +/-0.1mm

Y axis:+/-0.1mm

Z axis:+/-0.1mm

1.3 System specifications:

1.3.1 hydraulic system:

Drive motor power:22KW

High pressure pump work pressure:25MPa

Low pressure pump work pressure:5~6MPa

Oil tank capacity:1m3

Cooling down method:Water­-oil heat exchanger

Remark:Please refer to the attached hydraulic theory diagram for details.

1.3.2 Pneumatic system:

Working pressure:Max   0.8 MPa

Min   0.5 MPa

Connecting pipe requirement: minimum specification of the air supply pipe in the workshop: G3/4″

Tube connected for air supply of this production line: PU tube withφ10

Remark:Please refer to the attached pneumatic theory diagram for details.

1.3.3 Notes for key data

­——hydraulic oil normally used: N46 anti-wear hydraulic oil

——oil needed to fill the loop: 680L about 4 barrels

­——Max working pressure for high pressure loop: 25 MPa

­——Max working pressure for low pressure loop: 5~6 MPa

electric parameter1.4 Electric parameters of AC mains supply line

Type: three-phase power

Voltage: 380v

Frequency:50Hz

Total power:33.4KW

Wire number and type:3+earth wire

Remark:Please refer to the electrical part manual for details.

1.5 Lubrication:

Lubricating oil needed for driving gear: synthetic calcium lubricating grease ZG2H.

Lubrication pits, grease needed: Molybdenum calcium lubricating grease
