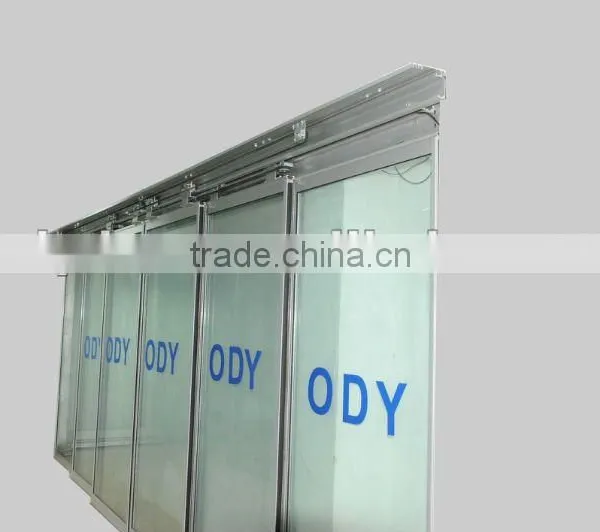

Automatic Telescopic Door Operator

Automatic Telescopic Door Operator thumbnail-1
Automatic Telescopic Door Operator photo-1
US$ 100 - 1,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
ODY
Model Number:
LT-190CD
Contact Supplier Request Quote Chat Now
Ningbo Oudany Automatic Doors Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name ODY
Model Number LT-190CD

Specifications

Telescopic Door Operator
1. 6.3 long track, for 4 moving door leaf
2. Automatic door, Auto reverse
3. CE certifacated

Telescopic Door Operator

Door style 2 leaf      or        4leaf
Door width 650mm~1250mm
Door weight.max 130x2kgs         130kgx4
Power supply 90VAC~250VAC, 50/60Hz
Voltage output 12V DC, 24V DC

Brushless Motor

 100W,24V DC
Opening speed and closing speed 250~550mm/S

Creep speed

 20~100mm/S
Manual opening Force <7N
Hold-Close Force 150N<f<250N
Hold-open time 2-20s (adjustable)

1. Impressive entrances

The LT-190CD telescopic sliding door operator maximizes the opening width and
provides an impressive solution when space is of prime criteria. LT-190CD is
available for bi-parting/four leaf and single slide/two leaf doors. It can also be adapted
to a wide range of different door and customer requirements.


2. Safety

Automatic safety auto reverse when an obstacle is encountered in closing direction.
The safety can be further improved by using Presence detection photocells .People or
objects in the doorway are detected and the door is then prevented from closing until
it is safe to do so.


3. Emergency

The LT-190CD can automatically opens or closes the doors(using battery pack up)–
in the event of a power failure.
