75KW 100HP Three Phase Induction Motor Price

75KW 100HP Three Phase Induction Motor Price thumbnail-1

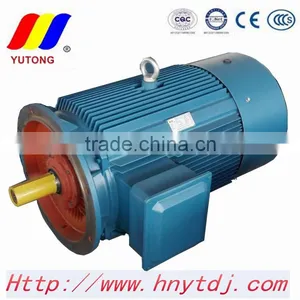

75KW 100HP Three Phase Induction Motor Price thumbnail-2
75KW 100HP Three Phase Induction Motor Price thumbnail-3
75KW 100HP Three Phase Induction Motor Price thumbnail-4
75KW 100HP Three Phase Induction Motor Price thumbnail-5
75KW 100HP Three Phase Induction Motor Price thumbnail-6
75KW 100HP Three Phase Induction Motor Price photo-1
75KW 100HP Three Phase Induction Motor Price photo-2

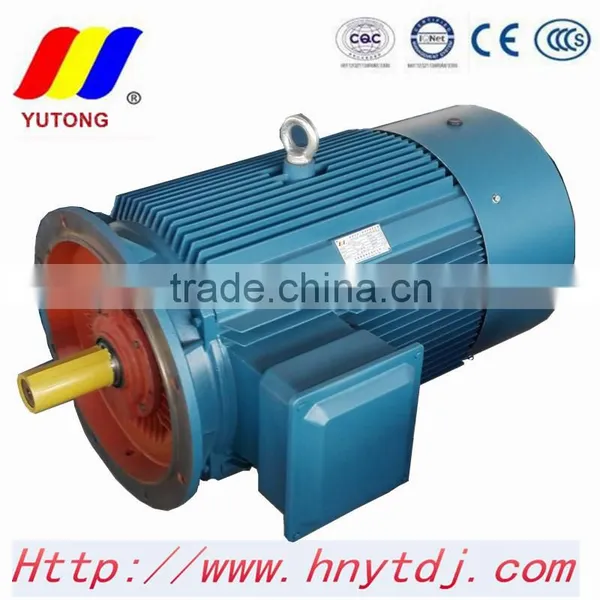

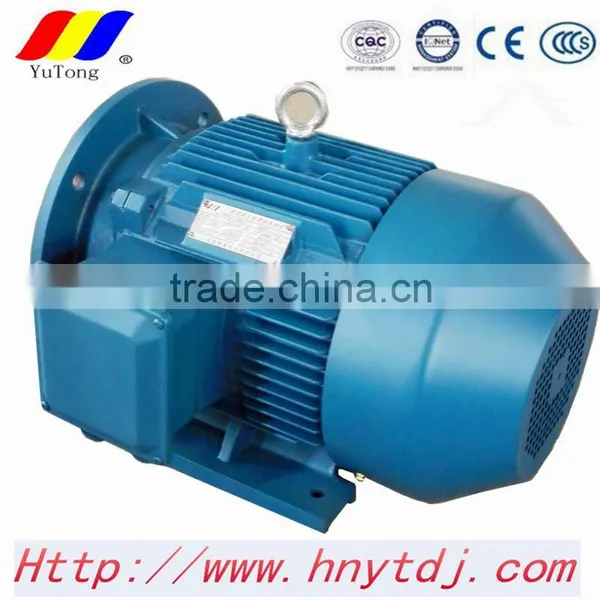

75KW 100HP Three Phase Induction Motor Price photo-3
75KW 100HP Three Phase Induction Motor Price photo-4

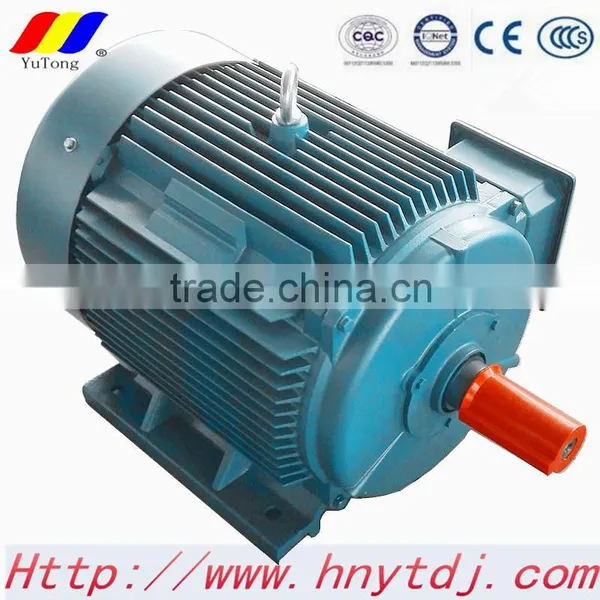

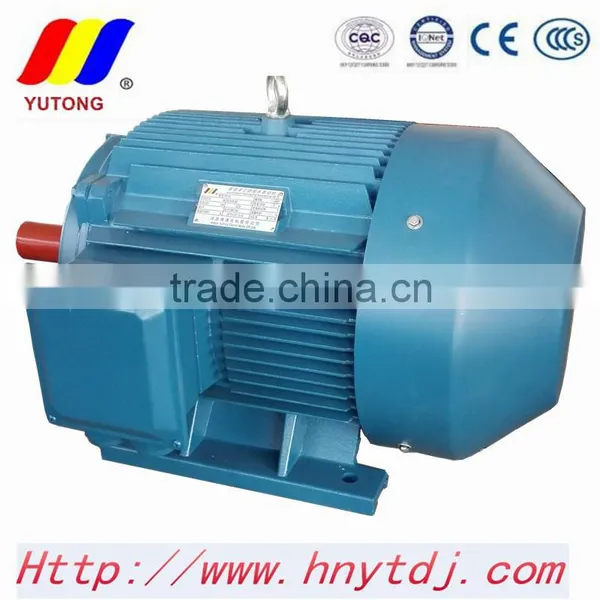

75KW 100HP Three Phase Induction Motor Price photo-5
75KW 100HP Three Phase Induction Motor Price photo-6

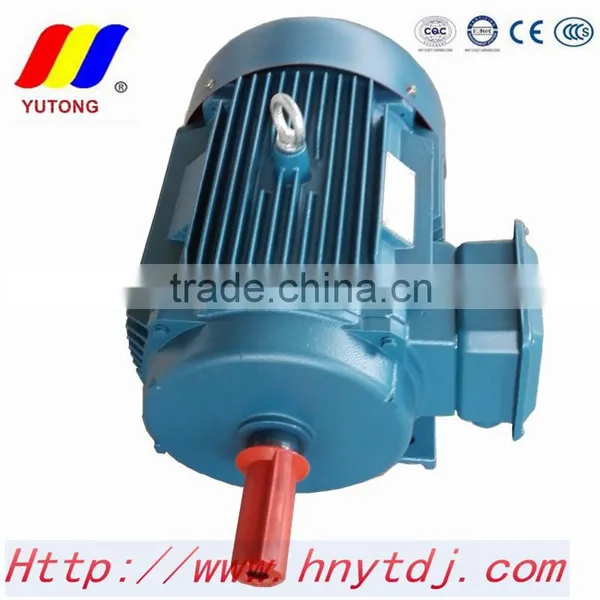

US$ 50 - 900 MOQ: 5 Sets
Key Specifications
Get Latest Price
Brand Name:
YUTONG
Model Number:
Y2-280S-2
Type:
Asynchronous Motor
Contact Supplier Request Quote Chat Now
Henan Yutong Electric Motor Shares Company
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao/Tianjin/Shanghai/Ninbo/As quested
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name YUTONG
Model Number Y2-280S-2
Type Asynchronous Motor
Frequency 50HZ/60HZ
Output Power 75kw/100hp
Protect Feature Totally Enclosed
Certification CCC, CE, ROHS, UL, Other, CCC, CE, ROHS, UL, ISO9001 2008
AC Voltage Other, 110V/220V/380V/420V/440V/460V/525V/660V/as request
Place of Origin Henan, China
Efficiency Other, IE 2, IE2

Specifications



 1.Three Phase Squirrel Cage Induction Motors



 2. poles:2/4/6/8/10



 3.speed:740-3000rpm



 4.Frequency:50hz/60hz



 5. CE certificate,OEM approve



 6. Competitive price

75KW 100HP three phase induction motor price

              75KW 100HP three phase induction motor price



induction motor feature:



Brand Name

YUTONG

Model Number

Y2-280S-2

Type

induction motor price

Frequency

50HZ/60HZ

Output Power

0.18KW-560KW

Phase

Three Phase

Certification

CE, CCC, IS9001,IS2008

Rated voltage

110V/220V/380V/420V/440V/460V/525V/660V ±5%

Efficiency

 IE1/IE2/IE3

Frame

 Cast Iron or aluminum

Poles

2 , 4 ,6 ,8,10

Ambient temperature

-15° ℃ ≤0  ≤  40 ℃

Altitude

 not exceeding 1000 Meters

Duty

Continuous running

Insulation Class

B/F/H

Protection Class

IP54/IP55/IP65

Cooling Method

IC0141 (total-enclosed fan-cooled type)

Price

USD

Minimum Order Quantity

10 PCS

Packaging Details

Plywood case

Delivery Time

10-15 working days after received the payment

Payment Terms

L/C,T/T,Western Union

Supply Ability

10000 Pieces per Month

Material

100% copper wire

Mounting types

 IMB3, IMB5,IMB35 IMV1,IMV3 and ect.

Speed

740-3000rpm

Relative humidity

not higher than 90%

Special motors can be designed according to customers' requirements

 Induction Motor main technical parameter:

  1, Cast iron housing(frame), end shields, terminal box;

  • 2, Motors are made to heavy duty service factors;
  • 3, Vacuum impregnated windings;
  • 4, High performance and efficiency;
  • 5, Available size: H80 ~ H355, with 2/4/6/8/10 poles,
  • 6, Rated output: 0.18KW ~ 315KW (0.25HP ~ 430HP)
  • 7, Mounting arrangements: B3, B5, B35, B14, B34,V1;

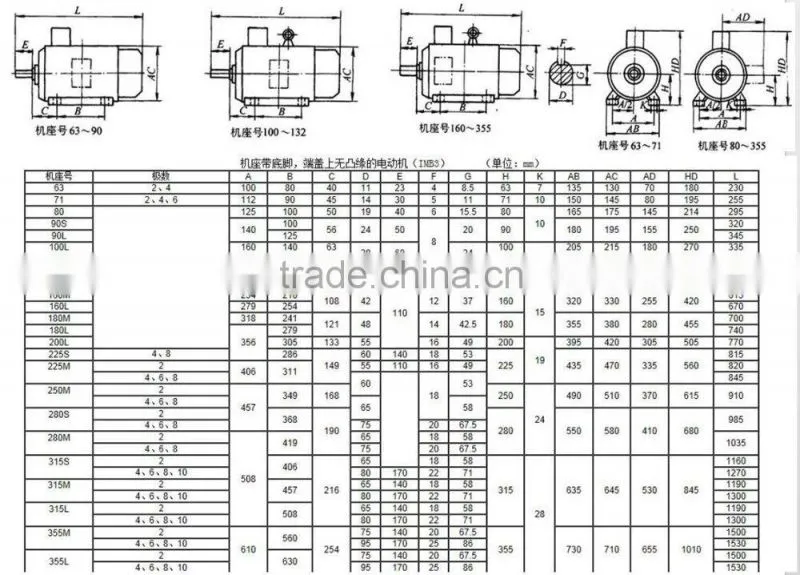

  • 8, Mounting dimensions according to IEC60072-1: 1991.
Type-kw/hp Type-kw/hp Type-kw/hp Type-kw/hp
Y2-801-2-0.75/1 Y2-132M-4-7.5/10 Y2-112M-6-2.2/3 Y2-160L-8-7.5/10
Y2-802-2-1.1/1.5 Y2-160M-4-11/15 Y2-132S-6-3/4 Y2-180L-8-11/15
Y2-90S-2-1.5/2 Y2-160L-4-15/20 Y2-132M1-6-4/5.5 Y2-200L-8-15/20
Y2-90L-2-2.2/3 Y2-180M-418.5/25 Y2-132M2-6-5.5/7.5 Y2-225S-8-18.5/25
Y2-100L-2-3/4 Y2-180L-4-22/30 Y2-160M-6-7.5/10 Y2-225M-8-22/30
Y2-112M-2-4/5.5 Y2-200L-4-30/40 Y2-160L-6-11/15 Y2-250M-8-30/40
Y2-132S1-2-5.5/7.5 Y2-225S-4-37/50 Y2-180M-6-15/20 Y2-280S-8-37/50
Y2-132S2-27.5/10 Y2-225M-4-45/60 Y2-200L1-6-18.5/25 Y2-280M-8-45/60
Y2-160M1-2-11/15 Y2-250M-4-55/75 Y2-200L2-6-22/30 Y2-315S-8-55/75
Y2-160M2-2-15/20 Y2-280S-4-75/100 Y2-225M-6-30/40 Y2-315M-8-75/100
Y2-160L-2-18.5/25 Y2-280M-4-90/120 Y2-250M-6-37/50 Y2-315L1-8-90/120
Y2-180M-2-22/30 Y2-315S-4-110/150 Y2-280S-6-45/60 Y2-315L2-8-110/150
Y2-200L1-2-30/40 Y2-315M-4-120/180 Y2-280M-6-55/75 Y2-355M1-8-132/180
Y2-200L2-2-37/50 Y2-315L1-4-160/218 Y2-315S-6-75/100 Y2-355M2-8-160/220
Y2-225M-2-45/60 Y2-315L2-4-200/270 Y2-315M-6-90/120 Y2-355L1-8-200/270
Y2-250M-2-55/75 Y2-355M-4-250/340 Y2-315L1-6-110/150 Y2-400M1-8-250/340
Y2-280S-2-75/100 Y2-355L-4-315/430 Y2-315L2-6-132/180 Y2-400M2-8-280/380
Y2-280M-2-90/120 Y2-355L1-4-280/380 Y2-355M1-6-160/220 Y2-400L1-8-315/430
Y2-315S-2-110/150 Y2-355L2-4-315/430 Y2-355M2-6-200/270 Y2-400L2-8-355/480
Y2-315M1-2-132/180 Y2-400M1-4-355/480 Y2-355L-6-250/340 Y2-400L3-8-400/540
Y2-315M2-2-160/220 Y2-400M2-4-400/540 Y2-400M1-6-280/380 Y2-400l4-8-450/610
Y2-801-4-0.55/0.75 Y2-400M3-4-450/610 Y2-400M2-6-315/430 Y2-400M1-10-160/220
Y2-802-4-0.75/1 Y2-400L1-4-500/680 Y2-400L1-6-355/480 Y2-400M2-10-185/250
Y2-90S-4-1.1/1.5 Y2-400L2-4-560/760 Y2-400L2-6-400/540 Y2-400M3-10-200/270
Y2-90L-4-1.5/2 Y2-801-6-0.37/0.5 Y2-400L3-6-450/610 Y2-400M4-10-220/300
Y2-100L1-4-2.2/3 Y2-802-6-0.55/0.75 Y2-132S-8-2.2/3 Y2-400L1-10-250/340
Y2-100L2-4-3/4 Y2-90S-6-03.75/1 Y2-132M-8-3/4 Y2-400L2-10-280/380
Y2-112M-4-4/5.5 Y2-90L-6-1.1/1.5 Y2-160M1-8-4/5.5 Y2-400L3-10-315/430
Y2-132S-4-5.5/7.5 Y2-100L-6-1.5/2 Y2-160M2-8-5.5/7.5 Y2-400L4-10-355/480

75KW 100HP three phase induction motor price

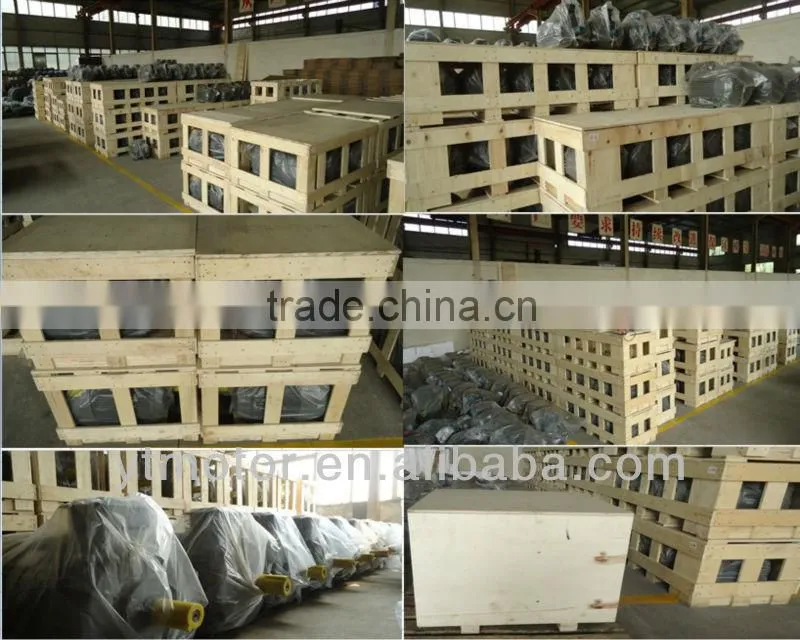

Packaging & Shipping

Induction motor Packaging:

Packing: Small size:standard export packing(carton and plled) Big size:fumigated wood carton or non-wood packing material carton

Shipping: by sea ,by air,by rill way

 75KW 100HP three phase induction motor price

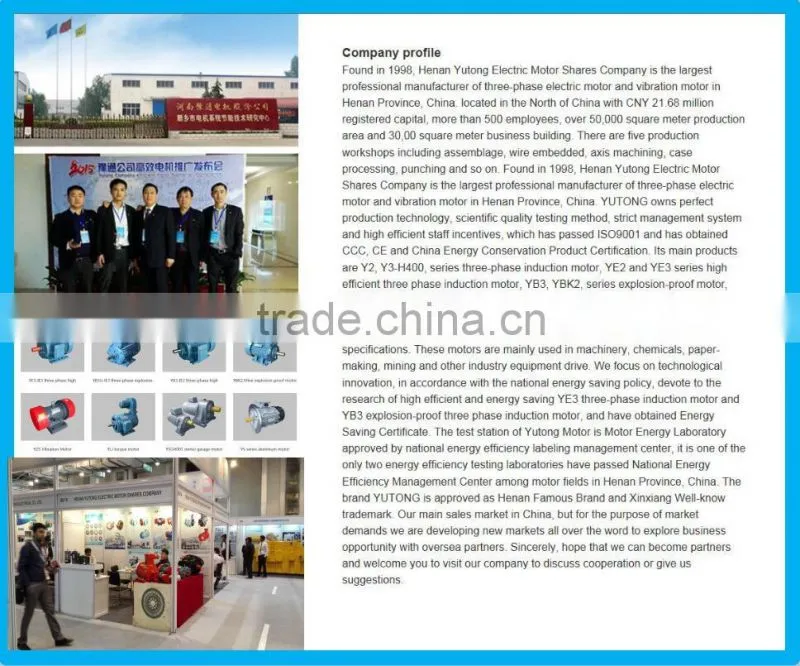

Company Information

Company information:

 Established: Since 1998



Employees:  500



Totally land:  30,000 square meters



Production certification: YUTONG motors has been certificated according to ISO 9001, CCC, CE, CQC.



QC Dept: One inspection after one process, a systemic test before delivery.



R&D department: All of the engineers have worked here more than 20 years.

75KW 100HP three phase induction motor price

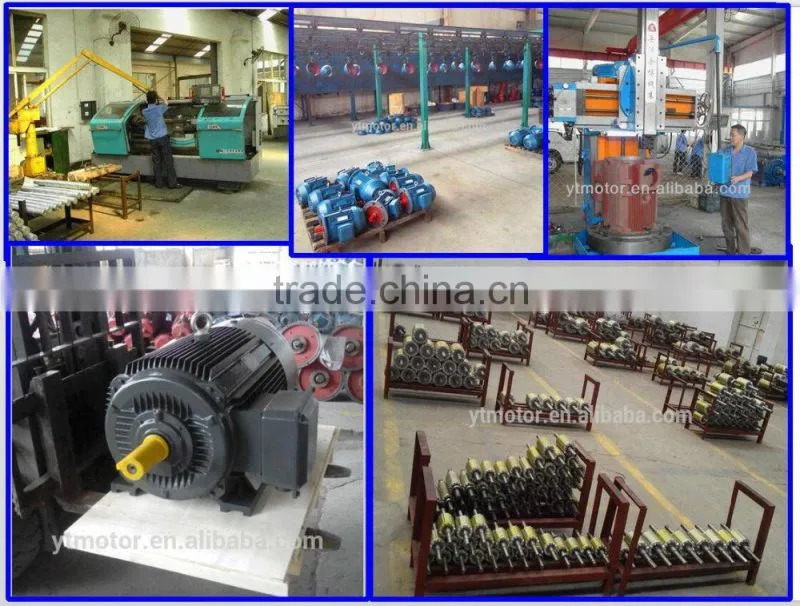

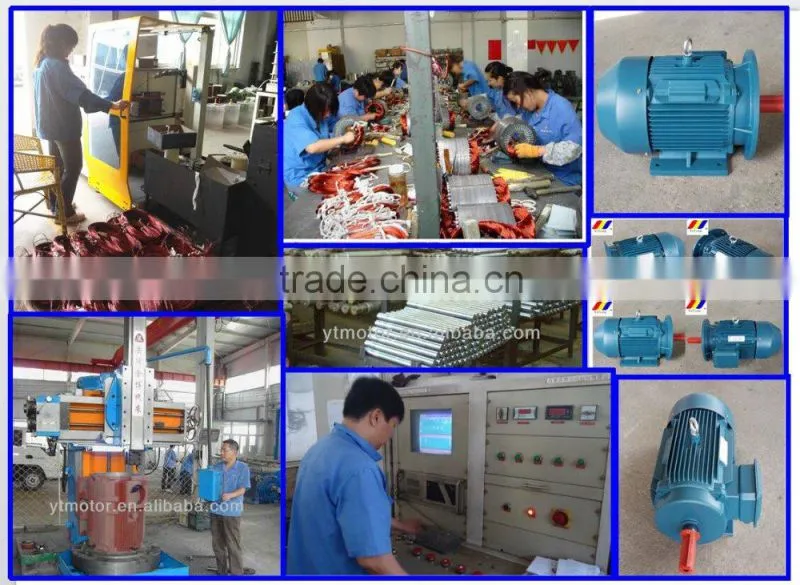

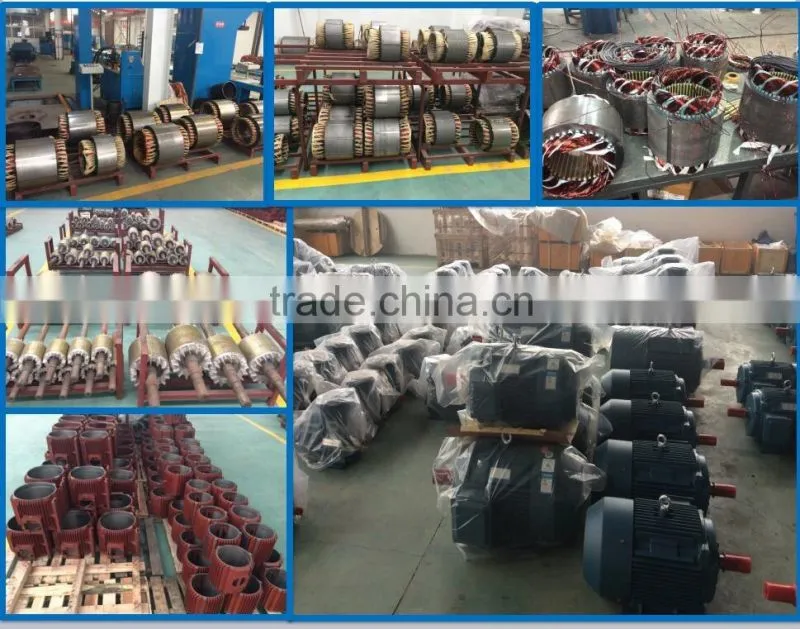

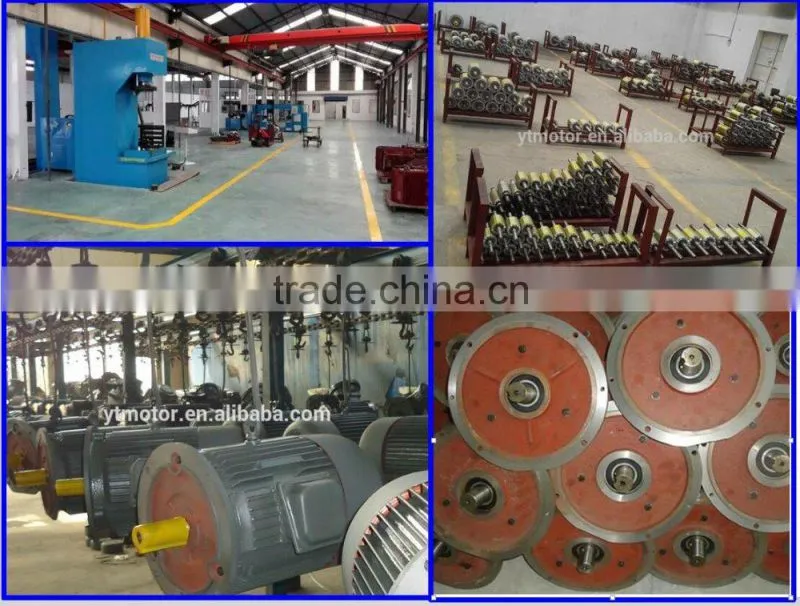

Manufacture process:

• Stamping of lamination



• Rotor die-casting



 • Winding and inserting – both manual and semi-automatically



• Vacuum varnishing



• Machining shaft, housing, end shields, etc…



• Rotor balancing



• Painting – both wet paint and powder coating



• Motor assembly



• Packing



• Inspecting spare parts every processing



 • 100% test after each process and final test before packing

75KW 100HP three phase induction motor price

75KW 100HP three phase induction motor price75KW 100HP three phase induction motor price75KW 100HP three phase induction motor price



Our Services

 Serivce:

•We respect your feed back after receive the goods.



•We provide 24 months warranty after goods arrive.



•We promise all spare parts available in lifetime use.



•We loge your complain within 48hours.




FAQ

FAQ:

A:What is your MOQ of this item ?
B:10 pcs per item.
A:What is our lead time ?
B:25-30 days.

A:What is your payment?

B:T/T, L/C at sight, D/P at sight, Paypal,
A:Can we type our brand on it ?
B:Yes of course.
A:Where is your loading port ?
B:Qingdao port.
A:What is your company's available production capacity ?
B:About 1000 PCS per day.

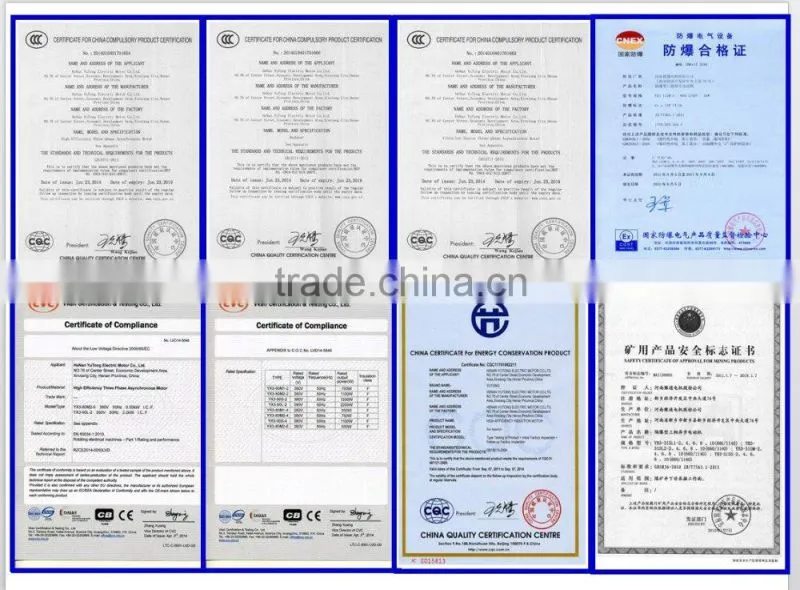

Certificates:
