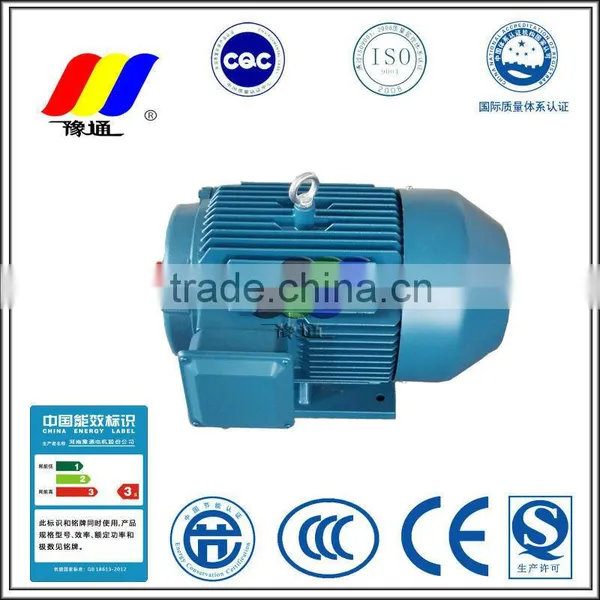

Y2 Series Three Phase Electric Induction Motor Price
US$ 44.23 - 13,000
MOQ: 5 Sets
Key Specifications
Get Latest Price
Brand Name:
YUTONG
Model Number:
Y2 series
Type:
Asynchronous Motor
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao/Tianjin/Shanghai/Ninbo/As quested
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
AC Three Phase Electric Motor ManufacturerUS$ 44.23 - 13,000MOQ: 5 Sets -
Y2 Serise Three Phase Vertical Pump Motor for Daily LivingUS$ 45 - 13,000MOQ: 1 Set
-
Y2 Serise Three Phase Asynchronous Induction Motor in Alternate CurrentUS$ 45 - 13,000MOQ: 1 Set
-
75KWThree Phase Induction Electric MotorY2-315 M-8US$ 45 - 13,000MOQ: 1 Set
-
Y2Three Phase Induction Motor / AC Motors With CE ApprovedUS$ 45 - 13,000MOQ: 1 Set
Brand Name
YUTONG
Model Number
Y2 series
Type
Asynchronous Motor
Frequency
50HZ/60HZ
Output Power
0.55KW-315KW
Protect Feature
Totally Enclosed
Certification
CCC, CE, ROHS, UL, Other, CCC, CE, ROHS, UL, ISO9001 2008
AC Voltage
Other, 110V/220V/380V/420V/440V/460V/525V/660V/as request
Place of Origin
Henan, China
Efficiency
Other, IE 2, IE2
Y,Y2 Series Three Phase Induction Motor
Description:
Y2 series three phase asynchronous electric motor is a kind of low-voltage squirrel cage 3-phase electrical motor. They are totally enclosed, fan-cooling newly designed and to be in conformity with the relevant requirements & rules of JB/T10391-2002 & IEC standards.
Conditions:
1.Rated voltage:220V/380V/44V/660Vas requested
2.Output:50HZ/60HZ
3.Insulation calss:F
4.Protection class:IP54/IP55
5.Altitude: less than 1000m
6.Work temperature: -15°C ~40°C
7.Cooling method: IC0041
8.Work way: S
9.Relative humidity:Less than 85%
Data spec:
| Type-kw/hp | Type-kw/hp | Type-kw/hp | Type-kw/hp |
| Y2-801-2-0.75/1 | Y2-132M-4-7.5/10 | Y2-112M-6-2.2/3 | Y2-160L-8-7.5/10 |
| Y2-802-2-1.1/1.5 | Y2-160M-4-11/15 | Y2-132S-6-3/4 | Y2-180L-8-11/15 |
| Y2-90S-2-1.5/2 | Y2-160L-4-15/20 | Y2-132M1-6-4/5.5 | Y2-200L-8-15/20 |
| Y2-90L-2-2.2/3 | Y2-180M-418.5/25 | Y2-132M2-6-5.5/7.5 | Y2-225S-8-18.5/25 |
| Y2-100L-2-3/4 | Y2-180L-4-22/30 | Y2-160M-6-7.5/10 | Y2-225M-8-22/30 |
| Y2-112M-2-4/5.5 | Y2-200L-4-30/40 | Y2-160L-6-11/15 | Y2-250M-8-30/40 |
| Y2-132S1-2-5.5/7.5 | Y2-225S-4-37/50 | Y2-180M-6-15/20 | Y2-280S-8-37/50 |
| Y2-132S2-27.5/10 | Y2-225M-4-45/60 | Y2-200L1-6-18.5/25 | Y2-280M-8-45/60 |
| Y2-160M1-2-11/15 | Y2-250M-4-55/75 | Y2-200L2-6-22/30 | Y2-315S-8-55/75 |
| Y2-160M2-2-15/20 | Y2-280S-4-75/100 | Y2-225M-6-30/40 | Y2-315M-8-75/100 |
| Y2-160L-2-18.5/25 | Y2-280M-4-90/120 | Y2-250M-6-37/50 | Y2-315L1-8-90/120 |
| Y2-180M-2-22/30 | Y2-315S-4-110/150 | Y2-280S-6-45/60 | Y2-315L2-8-110/150 |
| Y2-200L1-2-30/40 | Y2-315M-4-120/180 | Y2-280M-6-55/75 | Y2-355M1-8-132/180 |
| Y2-200L2-2-37/50 | Y2-315L1-4-160/218 | Y2-315S-6-75/100 | Y2-355M2-8-160/220 |
| Y2-225M-2-45/60 | Y2-315L2-4-200/270 | Y2-315M-6-90/120 | Y2-355L1-8-200/270 |
| Y2-250M-2-55/75 | Y2-355M-4-250/340 | Y2-315L1-6-110/150 | Y2-400M1-8-250/340 |
| Y2-280S-2-75/100 | Y2-355L-4-315/430 | Y2-315L2-6-132/180 | Y2-400M2-8-280/380 |
| Y2-280M-2-90/120 | Y2-355L1-4-280/380 | Y2-355M1-6-160/220 | Y2-400L1-8-315/430 |
| Y2-315S-2-110/150 | Y2-355L2-4-315/430 | Y2-355M2-6-200/270 | Y2-400L2-8-355/480 |
| Y2-315M1-2-132/180 | Y2-400M1-4-355/480 | Y2-355L-6-250/340 | Y2-400L3-8-400/540 |
| Y2-315M2-2-160/220 | Y2-400M2-4-400/540 | Y2-400M1-6-280/380 | Y2-400l4-8-450/610 |
| Y2-801-4-0.55/0.75 | Y2-400M3-4-450/610 | Y2-400M2-6-315/430 | Y2-400M1-10-160/220 |
| Y2-802-4-0.75/1 | Y2-400L1-4-500/680 | Y2-400L1-6-355/480 | Y2-400M2-10-185/250 |
| Y2-90S-4-1.1/1.5 | Y2-400L2-4-560/760 | Y2-400L2-6-400/540 | Y2-400M3-10-200/270 |
| Y2-90L-4-1.5/2 | Y2-801-6-0.37/0.5 | Y2-400L3-6-450/610 | Y2-400M4-10-220/300 |
| Y2-100L1-4-2.2/3 | Y2-802-6-0.55/0.75 | Y2-132S-8-2.2/3 | Y2-400L1-10-250/340 |
| Y2-100L2-4-3/4 | Y2-90S-6-03.75/1 | Y2-132M-8-3/4 | Y2-400L2-10-280/380 |
| Y2-112M-4-4/5.5 | Y2-90L-6-1.1/1.5 | Y2-160M1-8-4/5.5 | Y2-400L3-10-315/430 |
| Y2-132S-4-5.5/7.5 | Y2-100L-6-1.5/2 | Y2-160M2-8-5.5/7.5 | Y2-400L4-10-355/480 |
Working room:
Packaging:
Serivce:
•We respect your feed back after receive the goods.
•We provide 12-24 months warranty after goods arrive.
•We promise all spare parts available in lifetime use.
•We loge your complain within 48hours.
