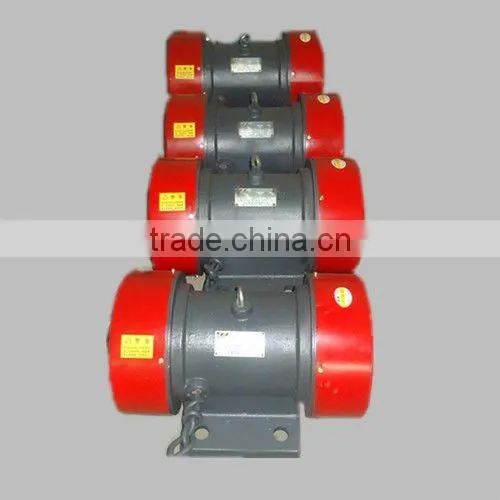

TZDC series vibro motor for vibrating screen and feeder

Specifications

Principle:

TZDC series of electric vibrator motor, a set of adjustable eccentric block is installed at both ends of the biaxial stretching of the rotor shaft , the exciting force produced by using the centrifugal force produced by rotating eccentric block. The vibration motor with the advantages of large excitation force, small energy consumption, low noise, long life. It mainly used in silos, hoppers, chute of the silo wall vibration, as well as excitation source of a self-synchronous linear vibrating screen, vibrating feeder, vibrating conveyors and other vibrating machinery. It has a wide range of applications, also is the ideal device of metallurgy, mining, coal, building materials, chemical sector, etc.

Features of Vibration Motor:
1)the cooperation of excitation force and contribute is appropriate; large exciting force; strong motor body; low noise.

2)options for the vibration frequency and amplitude.
in accordance with different purposes

3)completely closed structure, may work in any non-explosion-proof and dusty conditions.

4)the direction of excitation force can be changed in accordance with the installation way of vibration motor.

5)only to adjust the angle of the eccentric block, you can adjust excitation power at any step.

6)easy maintenance.

7)all kinds of specification, to meet the operational requirements of various types of vibration machines.

 Type:
