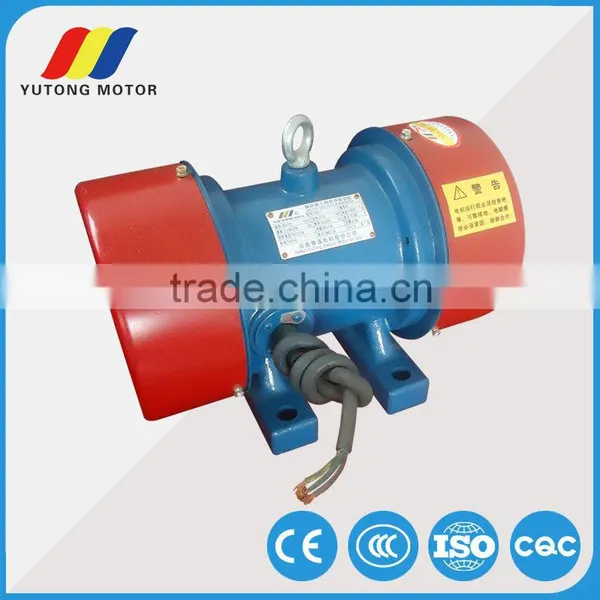

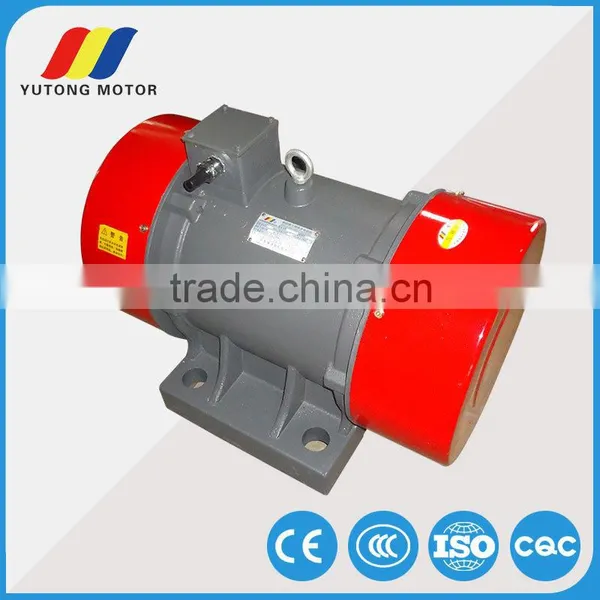

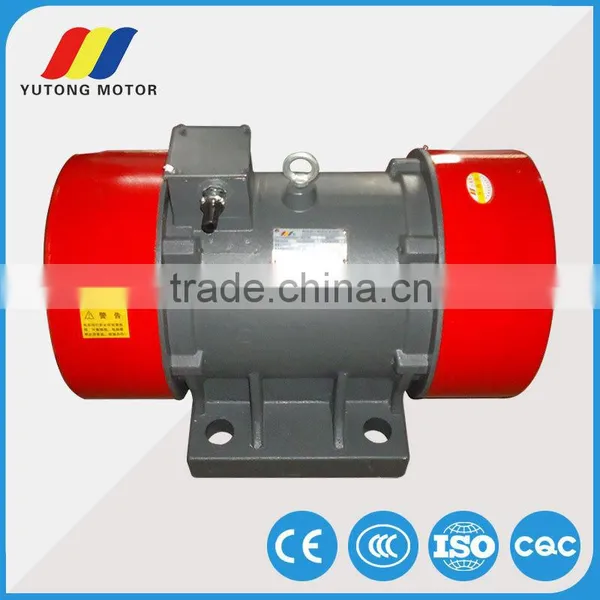

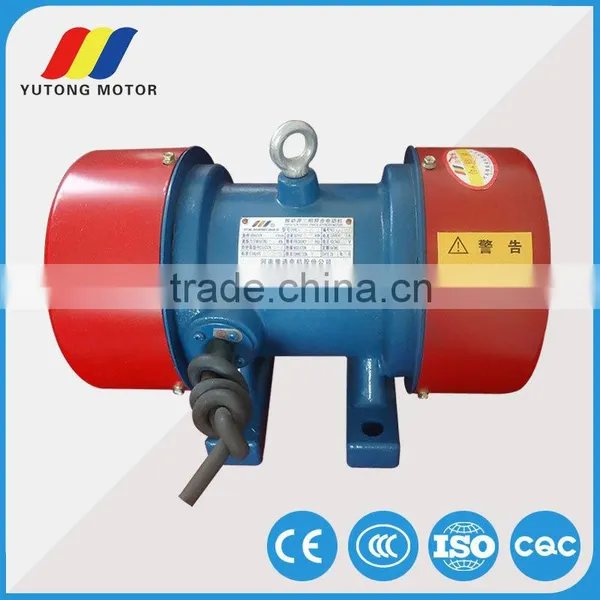

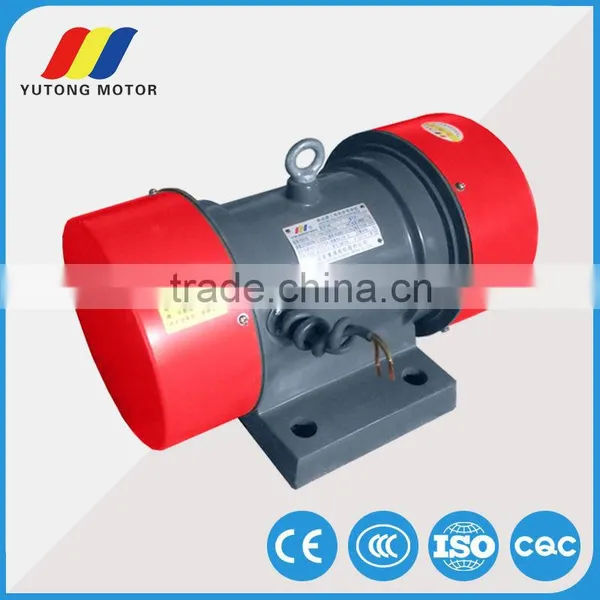

Help CenterTZDC Series Mounted Eccentric Vibrator Motor From China
Related Products
-
TZDC Series External Vibrator Motor From FactoryUS$ 90 - 3,000MOQ: 1 Set -
TZDC Seriespower Motor Concrete Vibrator From FactoryUS$ 90 - 3,000MOQ: 1 Set
-
380v 50Hz Three Phase Vibro MotorUS$ 50 - 1,000MOQ: 1 Set
-
YZS Three -phase Asynchronous Vibrating Motor YZS-1-2US$ 50 - 2,000MOQ: 1 Set
-
YUTONG YZS Serise Three Phase Vibrition Induction MotorUS$ 50 - 1,998MOQ: 1 Set
HENAN YUTONG ELECTRIC MOTOR SHARES COMPANY
ADDRESS: NO. 76, ZHONGYANG RD, XINXIANG ECO. DEV. ZONE, HENAN PROVINCE, CHINA
CONTACT: TEL 0086-373-55066677 MOBILE: 0086-18537339090
Wechat: yt-electromotor Whatsapp: 008618537339090
QQ NO.: 123278903

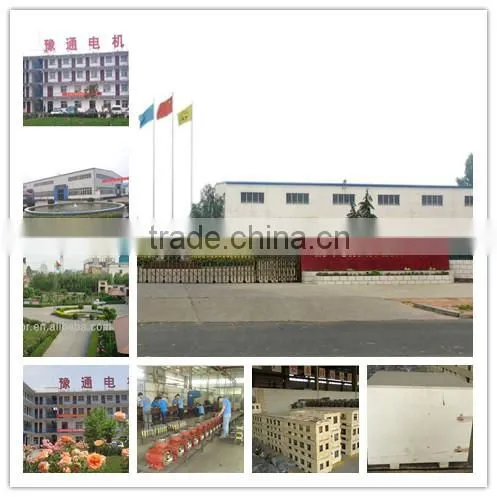

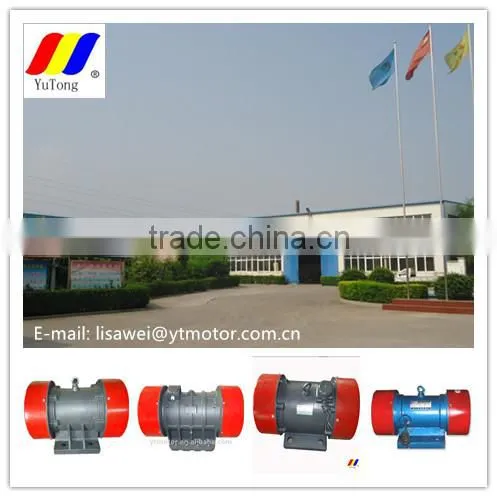

Company Profile:

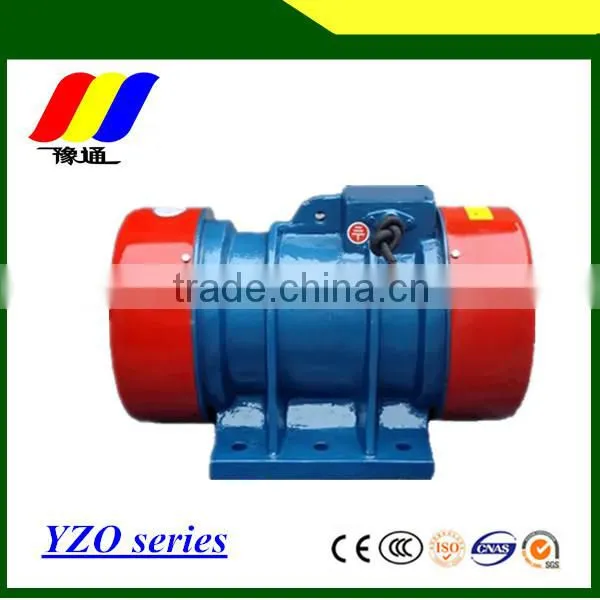

Found in 1998, Henan Yutong Electric Motor Shares Company is the largest professional manufacturer of three-phase electric motor and vibration motor in Henan Province, China. YUTONG owns perfect production technology, scientific quality testing method, strict management system and high efficient staff incentives, which has passed ISO9001 and has obtained CCC, CE and China Energy Conservation Product Certification. Its main products are Y2, Y3-H400, series three-phase induction motor, YE2 and YE3 series high efficient three phase induction motor, YB3, YBK2, series explosion-proof motor, YZS, YZO, TZDC, YZUL series vibration motor, YCT series magnetic speed adjustable motor, YE2VP series frequency variable motor, YD series multi-speed and Y2EJ, YLJ series special use motor, totally more than 20 series and 400 specifications. These motors are mainly used in machinery, chemicals, paper-making, mining and other industry equipment drive.
Product Description:
Work Principle:
YZS series three-phase induction motors are the vibration source of various types of vibrating machines.
Use:
Mainly used in electricty, building, food, coal, mining, light industry, chemical, cement, railway, port industry and so on for vibrating feeder, vibrating transportation, vibrating mine selection, vibrating sieve and the anti-blocking equipments of the silo, etc.
Features:
lts most remarkable features are small buik, light weight, strong vibration force, stable amplitude, adjustable force, wholly sealed machine shell, being able to work in any dusty environment without requirements for preventing explosion.
Work environment:
Protection class is IP54, IP55,etc.
Insulation class F
Operating conditions: altitude lower than 1000 meters °above sea level
Ambient temperature between -15°C and 40°C,
Cooling method: IC0041 ,
Work way: S1
| Type | Vibration Force | Power | Speed | Current | Mounting Size | ||||
| kN | kW | r/min | (A) | A | B | K | N | G | |
| TZD11-2C | 1.5 | 0.15 | 2900 | 0.5 | 180 | 135 | 11 | 4 | 20 |
| TZD12-2CA | 2.5 | 0.25 | 2900 | 0.75 | 180 | 150 | 13 | 4 | 20 |
| TZD12-4CA | 2.5 | 0.1 | 1450 | 0.3 | 180 | 150 | 13 | 4 | 20 |
| TZD21-2C | 5 | 0.4 | 2900 | 1.14 | 220 | 176 | 15 | 4 | 20 |
| TZD21-4C | 5 | 0.2 | 1450 | 0.6 | 220 | 176 | 15 | 4 | 20 |
| TZD21-6C | 5 | 0.75 | 960 | 0.6 | 220 | 176 | 15 | 4 | 20 |
| TZD31-2C | 8 | 0.75 | 2900 | 2.3 | 236 | 179 | 19 | 4 | 25 |
| TZD31-4CA | 8 | 0.4 | 1450 | 2.5 | 236 | 179 | 19 | 4 | 25 |
| TZD31-6C | 10 | 0.75 | 960 | 1.5 | 236 | 179 | 19 | 4 | 25 |
| TZD41-2C | 16 | 1.5 | 2900 | 2.3 | 270 | 224 | 21 | 6 | 30 |
| TZD41-4C | 16 | 0.75 | 1450 | 2.3 | 270 | 224 | 21 | 6 | 30 |
| TZD41-6C | 20 | 1.5 | 960 | 2.1 | 270 | 224 | 21 | 6 | 30 |
| TZD51-4C | 32 | 1.5 | 1450 | 3.9 | 340 | 230 | 31 | 6 | 40 |
| TZD51-6C | 30 | 2.2 | 960 | 3.5 | 340 | 230 | 31 | 6 | 40 |
| TZD51-8C | 30 | 2.2 | 750 | 5.5 | 340 | 230 | 31 | 6 | 40 |
| TZD52-6C | 40 | 3 | 960 | 6.1 | 340 | 230 | 31 | 6 | 40 |
| TZD61-4C | 50 | 2.2 | 1450 | 6.3 | 390 | 222 | 37 | 6 | 50 |
| TZD61-6C | 50 | 3.7 | 960 | 5 | 390 | 222 | 37 | 6 | 50 |
| TZD61-8C | 50 | 3.7 | 750 | 9.1 | 390 | 222 | 37 | 6 | 50 |
| TZD71-6C | 75 | 5.5 | 960 | 9.1 | 440 | 248 | 37 | 6 | 50 |
| TZD72-6C | 90 | 5.5 | 960 | 15 | 440 | 248 | 37 | 6 | 50 |
| TZD71-8C | 75 | 5.5 | 750 | 11.6 | 440 | 248 | 37 | 6 | 50 |
| TZD81-6C | 125 | 10 | 960 | 25 | 480 | 360 | 43 | 6 | 65 |
| TZD81-8C | 125 | 10 | 750 | 24.2 | 480 | 360 | 43 | 6 | 65 |
punctual delivery time:
•We put your order into our tight production schedule, ensure your punctual delivery time.
•Production / inspection report before your order packed.
•Shipping notice/ insurance to you as soon as your order is shipped.
Our Service---We Cherish Every Order.
Pre-sales service:
•We value every inquiry sent to us, ensure quick competitive offer within 12 hours.
•We cooperate with customer to design and develop the new products. Provide all necessary document.
•We are a sales team, with all technical support from engineer team.
After sales service:
•We respect your feed back after receive the goods.
•We provide 12-24 months warranty after goods arrive.
•We promise all spare parts available in lifetime use.
•We loge your complain within 48hours.
Application:
