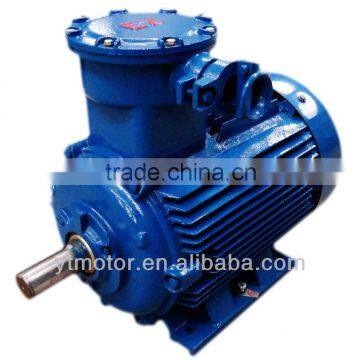

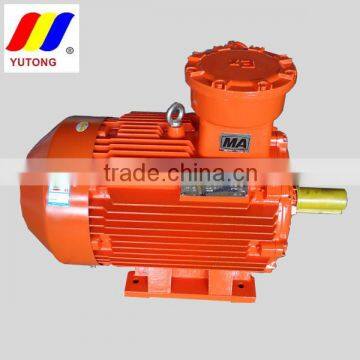

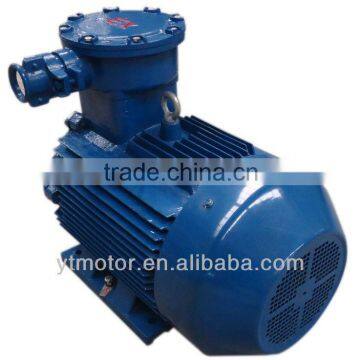

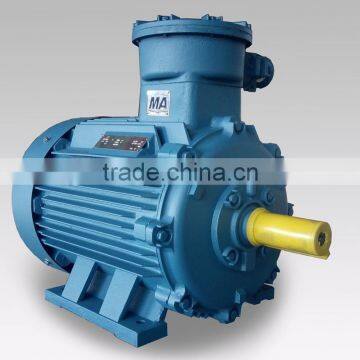

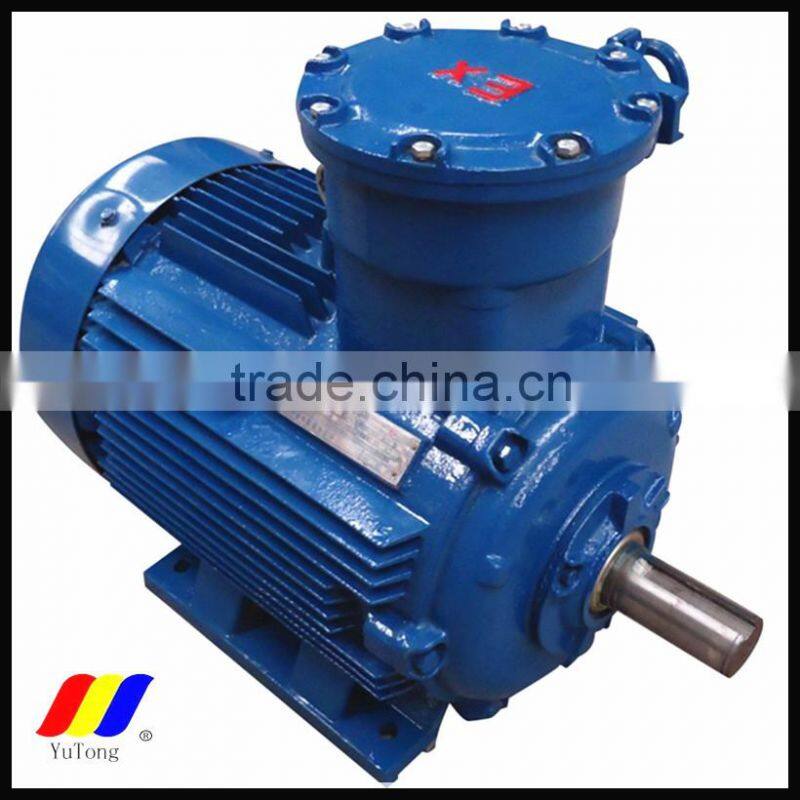

YB3 Cheap Three Phase High Efficiency Atex Motor

YB3 Cheap Three Phase High Efficiency Atex Motor thumbnail-1
YB3 Cheap Three Phase High Efficiency Atex Motor thumbnail-2
YB3 Cheap Three Phase High Efficiency Atex Motor thumbnail-3
YB3 Cheap Three Phase High Efficiency Atex Motor thumbnail-4
YB3 Cheap Three Phase High Efficiency Atex Motor thumbnail-5
YB3 Cheap Three Phase High Efficiency Atex Motor thumbnail-6
YB3 Cheap Three Phase High Efficiency Atex Motor photo-1
YB3 Cheap Three Phase High Efficiency Atex Motor photo-2
YB3 Cheap Three Phase High Efficiency Atex Motor photo-3
YB3 Cheap Three Phase High Efficiency Atex Motor photo-4
YB3 Cheap Three Phase High Efficiency Atex Motor photo-5
YB3 Cheap Three Phase High Efficiency Atex Motor photo-6
US$ 90 - 10,000 MOQ: 2 Sets
Key Specifications
Get Latest Price
Brand Name:
YUTONG
Model Number:
YB3
Type:
Asynchronous Motor
Contact Supplier Request Quote Chat Now
Henan Yutong Electric Motor Shares Company
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao/Tianjin/Shanghai/Ninbo/As quested
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name YUTONG
Model Number YB3
Type Asynchronous Motor
Frequency 50HZ/60HZ
Output Power 0.55KW-200KW
Protect Feature Explosion-proof
Phase Three-phase
Certification CCC, CE, Other, CCC, CE, IS9001 2008
AC Voltage Other, 380V/660V/1140V/as request
Place of Origin Henan, China
Efficiency IE 2

High quality of YB3 Explosion Proof three phase induction motor






YB3 Explosion-Proof Motor  motor description:



 YB3 series explosion-proof three-phase asynchronous motors are latest products developed by our company combining with home and abroad electromagnetic structure, technique and material etc based on YB and YB2 series of motors. This series of motors have many merits,such as high-efficiency, energy conservation, big margin of temperature rise, long service life, excellent performance, low noise,advanced explosion-proof structure, high reliability and convenient operation and maintenance etc. The efficiency index of this series motors conforms to the energy efficiency grades 2 of specified in GB18613-2006 Minimum allowable values of energy efficiency and the energy efficiency grades for small and medium three-phase asynchronous motors. Power class and the installation dimensions accord with IEC standard , also completely are as same as YB and YB2 series three-phase induction motors.



 YB3 Cheap Three Phase High Efficiency Atex Motor





YB3 explosion-proof induction motor feature:



1) fully sealed
2) Quiet operation

3) Corrosion resistant
4) high stall torque
5) Very low vibration
6) Very low power consumption
7)  fan-cooled,

8) squirrel cage structure



YB3 induction-proof induction motor conditions:

1.Rated voltage:380V/44V/660Vas requested

2.Output:50HZ/60HZ

3.Marks of explosion-proof :EXd I Mb;EXd II AT4 GB;EXd BT Gb

4.Work temperature: -15°C ~40°C

5.Cooling method: IC0041

6.Work way: S1
 7.insulation class:F



YB3 induction-proof induction motor main technical parameter:



Type power speed rated current weight Type power speed rated current weight
kw  r/min   A  kg kw  r/min   A  kg
YB3-80M1-2 0.75 2825 1.77 43 YB3-100L-6 1.5 940 3.78 89
YB3-80M2-2 1.1 2826 2.43 46 YB3-112M-6 2.2 940 5.42 106
YB3-90S-2 1.5 2840 3.23 52 YB3-132S-6 3 960 7.25 112
YB3-90L-2 2.2 2840 4.59 55 YB3-132M1-6 4 9.54 118
YB3-100L-2 3 2880 6.04 71 YB3-132M2-6 5.5 12.75 120
YB3-112M-2 4 2890 8.03 89 YB3-160M-6 7.5 970 16.41 178
YB3-132S1-2 5.5 2900 10.72 105 YB3-160L-6 11 23.51 202
YB3-132S2-2 7.5 2900 14.31 112 YB3-180L-6 15 30.92 258
YB3-160M1-2 11 2930 20.75 161 YB3-200L1-6 18.5 37.92 335
YB3-160M2-2 15 2930 28.05 174 YB3-200L2-6 22 44.31 362
YB3-160L-2 18.5 2930 34.4 193 YB3-225M-6 30 980 60.83 470
YB3-180M-2 22 2940 40.74 253 YB3-250M-6 37 71.96 605
YB3-200L1-2 30 2950 55.13 333 YB3-280S-6 45 85.02 730
YB3-200L2-2 37 2950 67.7 351 YB3-280M-6 55 103.59 840
YB3-225M-2 45 2970 81.98 462 YB3-315S-6 75 985 142.31 1242
YB3-250M-2 55 99.88 530 YB3-315M-6 90 168.25 1313
YB3-280S-2 75 135.34 720 YB3-315L1-6 110 206.96 1508
YB3-280M-2 90 161.72 837 YB3-315L2-6 132 245.47 1610
YB3-315S-2 110 2980 195.47 1265 YB3-90L-8 0.55 710 2.07 56
YB3-315M-2 132 2980 233.58 1335 YB3-100L-8 0.75 2.36 72
YB3-315L-2 160 2980 280.01 1556 YB3-100L2-8 1.1 3.32 90
YB3-315L1-2 185 2980 323.76 1730 YB3-112M-8 1.5 4.4 106
YB3-315L2-2 200 2980 350.01 1840 YB3-132S-8 2.2 5.8 114
YB3-80M1-4 0.55 1390 1.38 43 YB3-132M-8 3 7.71 118
YB3-80M2-4 0.75 1390 1.85 46 YB3-160M1-8 4 720 10.28 152













 YB3 explosion-proof induction motor Packing:

Packing:fumigation wooden case or customer request

Shipping: by sea ,by air,by rill way

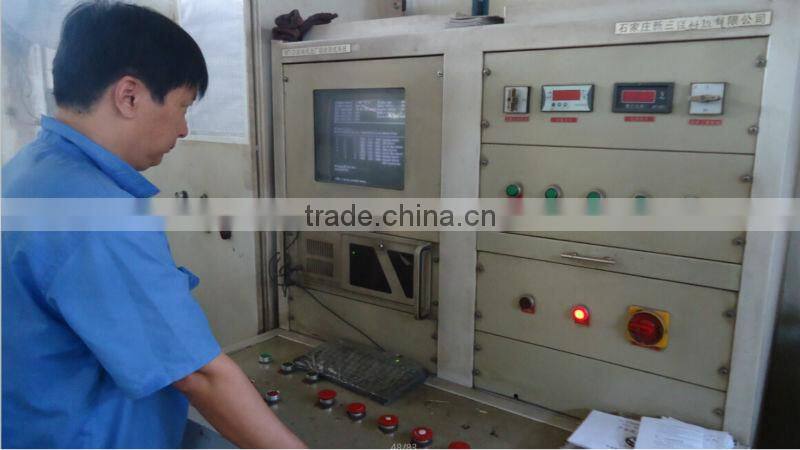

 Manufacturing shop



 YB3 Cheap Three Phase High Efficiency Atex MotorYB3 Cheap Three Phase High Efficiency Atex Motor





You may also be interested in our other products such as YZSvibrationmotor,YZVP series frequency variable motor,Y3 Low voltage and big power motor, YE2 high efficiency induction motor,YVP frequency variable and speed adjustable motor,Y2 general induction motor and others;,call us or send email directly for details please!
