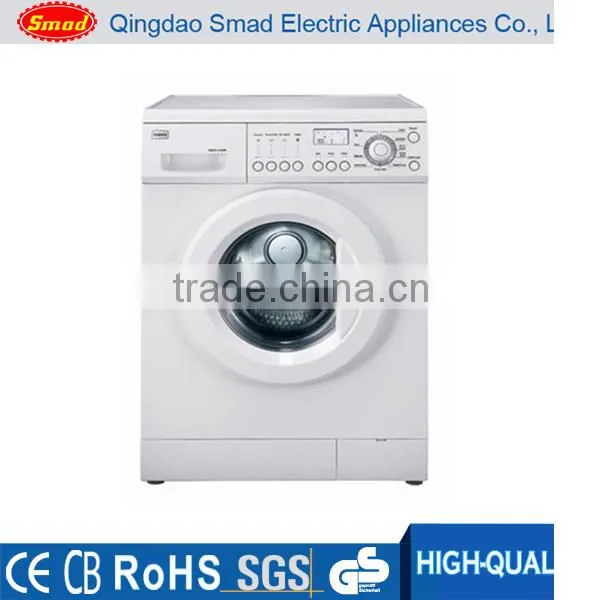

Washer Dryer Combo, Fully Automatic Clothes Front Loading Drying and Washing Machine

Specifications

Drying and Washing Machine
CE/RoHS/saso/GS/SAA/meps/EMC
LCD/LED display
5kg/6kg/7kg/8kg/9kg/10kg

 High Quality,Better Life

  Drying and Washing Machine





 1200rpm max.

spin speed Drying capacity:3.5KG

washing capacity:7KG



Description	18 programs	program
	with 3.5kg drying capacity function	Mix: NO
	intelligent control, with LCD control	Wool: YES
	stainless steel tub	Synthetics: YES
	1-24hr Delay start	Cotton: YES
	child lock	Pre-wash: YES
	180°door opening angel	Kids wear: NO
	15min quick wash	Night wash:NO
	power-off memorization	Silk: NO
	suspended damping balance	Heavy: NO
	anti-vibration system	Extra Rinse: YES
CERTIFICATE	CB/CE/GS/ROHS	Intensive Wash: YES
energy class	A	Quick Wash: YES
net weight(kg/lbs):	70	Eco-wash: NO
gross weight(kg/lbs)	76	Anti-Bacterie/sterilization: YES
loading capacity(20′/40′/40HQ)	48/108/161	Anti-Ironing: YES
door diameter(mm)	300	Drum Clean: NO
available spin speed option(rpm)	1200	Rinse ONLY: NO
unit dimension(W*D*H)(mm)	595*640*845	Spin ONLY: YES
package dimension(W*D*H)(mm)	660*685*890	Drain ONLY: NO









Dryer theory:

1 A centrifugal fan makes the dry air enter into the drying tunnel in the front of inner drum continuously.

2 Heater makes the cyclic air become high temperature gas, then the high temperature gas enters into inner drum.

3 The high temperature gas evaporates the water in cloth and the water becomes wet and hot gas.

4 The wet and hot gas will be condensed and become water under the influence of low-temperature condensate water in condenser. Then the water will be drained out through draining pump.

5 This working process cycles till cloth is dried up.
