Motor Driven Double Girder Shipbuilding Gantry Crane Design

Motor Driven Double Girder Shipbuilding Gantry Crane Design thumbnail-1
Motor Driven Double Girder Shipbuilding Gantry Crane Design thumbnail-2
Motor Driven Double Girder Shipbuilding Gantry Crane Design thumbnail-3
Motor Driven Double Girder Shipbuilding Gantry Crane Design thumbnail-4
Motor Driven Double Girder Shipbuilding Gantry Crane Design thumbnail-5
Motor Driven Double Girder Shipbuilding Gantry Crane Design thumbnail-6
Motor Driven Double Girder Shipbuilding Gantry Crane Design photo-1
Motor Driven Double Girder Shipbuilding Gantry Crane Design photo-2
Motor Driven Double Girder Shipbuilding Gantry Crane Design photo-3
Motor Driven Double Girder Shipbuilding Gantry Crane Design photo-4
Motor Driven Double Girder Shipbuilding Gantry Crane Design photo-5
Motor Driven Double Girder Shipbuilding Gantry Crane Design photo-6
US$ 46,000 - 680,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Widely used at open ground and warehouse and so on.
Rated Loading Capacity:
10~600t
Contact Supplier Request Quote Chat Now
Xinxiang Kehao Machinery Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shnaghai Qingdao Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Application Widely used at open ground and warehouse and so on.
Rated Loading Capacity 10~600t
Rated Lifting Moment Different
Max. Lifting Load 600t
Max. Lifting Height 30m
Span 182m
Place of Origin Henan, China
Brand Name Kehao
Model Number K-301
Certification CE/ISO/CCS/BV/SGS
Warranty 12 months
After-sales Service Provided Engineers available to service machinery overseas



motor driven double girder shipbuilding gantry crane design



  motor driven double girder shipbuilding gantry crane design

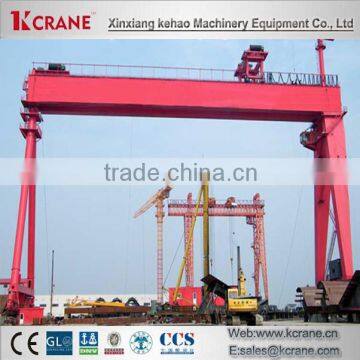

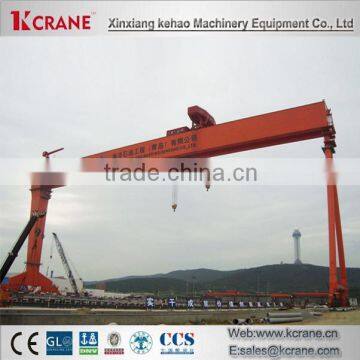

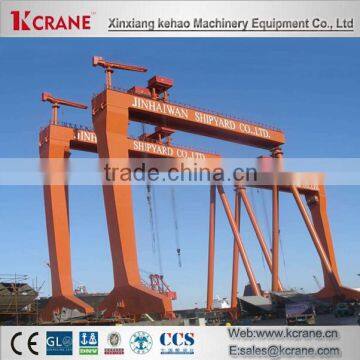

A. Shipbuilding Gantry Crane Show







1. Name: Goliath Crane/Shipbuilding Port Cranes

2. Key words:  Shipyard gantry crane ;

3. Features:

  • accuracy of level luffing is high;

  • operation device rotates 360;

  • adopts PLC control and variable frequency speed control;

  • light structural weight, beautiful appearance and easy maintenance;

  • The cab has a fine field of view and beautiful figure;

  • It has complete safety devices and communication and lighting system.


B. Shipbuilding Gantry Crane Drawing and Specification



Drawing

       motor driven double girder shipbuilding gantry crane design



Specification



Load Capacity

t

2×25t+50/10t

2×25t+75/20t

2×75t+80/20t

2×100t+160/32t

Joint lifting crane



100

150

200

300

air turning



50

100

150

200

Working class



A5

Span

m

50

60

80

100

Lifting height (m)

Rail/under rail

H1

30/4

40/5

45/5

60/6

H2

30/4

40/5

45/5

60/6

H3

32

42

47

62

                  Speed



Lifting

Top Trolley

m/min

0.75-7.5;0.75-15(light)

 0.6-6;0.6-12(light)

 0.5-5;0.5-10(light)

 0.5-5;0.5-10(light)

Bottom Trolley

Main hook

0.75-7.5;0.75-15(light)

0.6-6;0.6-12(light)

0.5-5;0.5-10(light)

0.5-5;0.5-10(light)

Aux hook

12

15

15

15

Travelling

Top Trolley

0.42-42

0.42-42

0.5-20;0.5-30

0.5-20;0.5-30

Bottom Trolley

0.42-42

0.42-42

0.5-20;0.5-30

0.5-20;0.5-30

Crane

0.5-20;0.5-30

0.5-20;0.5-30

0.5-20;0.5-30

0.5-20;0.5-30

Weight (t)

≈540

≈750

≈870

≈1650

Max wheel pressure (KN)

350

430

480

620

Motor total power (KW)

≈350

≈410

≈460

≈780

Rail recommended

QU100-QU120

Power supply

3-phase  50Hz  380v  or  50Hz  6-10KV



C. motor driven double girder shipbuilding gantry crane design



Shipbuilding gantry crane with large lifting capacity, large span, multiple functions and high efficiency, which is

specially used for docks (or berths) to conduct segmental transportation of large hulls, butt and turning operation.

It has three forms of structure, such as single trolley, shifting double trolley, and upper, lower trolley.







Single link shipyard crane is mainly used for section assembly of large structures and installation of electro mechanical equipment when shipyards or docks are building ships. They boast high hoisting tonnage and

accurate and reliable hoisting.





 Four-link shipyard crane

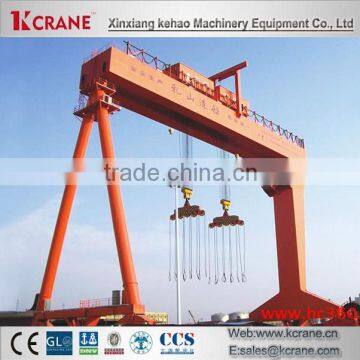

  D: Jeddah Project: Shipyard Dock crane


motor driven double girder shipbuilding gantry crane design



Delivery Time



•  motor driven double girder shipbuilding gantry crane design delivery :

• 60days for production, the port loading and custom cost about 6 days,
• the sea transportant takes 15days to 35days, the loading, transport and installation takes about 10days

to 20days

• Total time: 85days to 115days





motor driven double girder shipbuilding gantry crane design



motor driven double girder shipbuilding gantry crane design



E.  After Sales Services:



• 14 months warranty when products leave the factory, or 12 months warranty after installation and

     commissioning in addition to the human damage factors.

•  2 years spare-parts provided for better maintenance.

•  Professional technical staffs provide installation, commissioning and training services.

•  Delivery with English user manual, parts manual, product certification and other relevant

    certificates.

        •  Technical advisory for any time and Engineers available to service machinery overseas



F.  To Lift the Dream



To Build the Kingdom of Prosperity, Freedom and Justice.

Xinxiang kehao Machinery Equipment Co., Ltd as the most ambitious Lifting Equipment Developer &

Manufacturer & Services Supplier, we think the real enterprise spirit is the power express in the process

of boosting the prosperity, freedom and justice (PFJ) for human beings, and it has nothing to do with

nationality, religion and country. Because everyone is devoted to the career of building the PFJ around

 him, that is why we can builddeep cooperation here and there, through the thinking on real principles

of economics, we know the economics principles is same essence with liberty and justice.



Techincal:

Through unremitting efforts in innovation and corporate restructure, we have owns three branchs in

China,one for supplying general lifting equipment in Changyuan City, one for marine lifting equipment in Xinxiang City,and one R&D center in Shanghai city. Additionally we have a long term cooperation

with the machinery research institute of WHUT and SITU.





motor driven double girder shipbuilding gantry crane design



  G.  Consult Guide



Estimate Parameter:
•  Lifting Load capacity:  (max goods weight)
•  Lifting Height: ( how height?)

• Span:


Or Just tell me where you will use, then it is my turns.





  F: Sales  Consultant



I am in China, but serve you in the world.
