Shipyard goliath crane
To Lift the Dream
As a crane equipment trader, to lift the heavy goods is only our obligation, not our purse.
To Lift the Dream, this is our purse. The trade consultant would be the super robot of your life, career,
and your dream.
A. Product Specification
Name: Port and Shipyard Crane
1.Loading capacity: 80t ( 20m outreach)
2.Fly jib load: 10t
3. Outreach: 18m to 50m
4. Load capacity: 25t ( 50m outreach)
5. Lifting height: 45m above rail, 10m below rail.
6. Distance between the rails: 9m( 5m-16m)
7. Type: four-bar portal boom or Single girder
8. Structure: box type boom or frame type
9.Industry working voltage: Local (User)
10.Color: Red, yellow, white or blue etc
11.Power Supply: 3-Phase
12.Working duty: A7
13.Standrad: GB/T 24001-2004
14.Steel track recommended: P48
Delivery Time
180days for production, the port loading and custom cost about 6 days,
the sea transportant takes 15days to 35days, the loading, transport and installation
takes about 10days to 20days.
Total time: 210days to 241days
B. Parameter & Instruction
| Product Parameter of 80t Portal Beam Crane | |||
| Product Name | Unit | Parameter | |
| Working Classification | A8 | ||
| Load Capacity | t | 80 | |
| Outreach Range | Max range | m | 50 |
| Min range | m | 18 | |
| Lifting Height | Above rail | m | 45 |
| Below rail | m | 10 | |
| Working Speed | Lifting speed | m/min | 60 |
| Derricking speed | m/min | 50 | |
| Slewing speed | R/min | 1.5 | |
| Traveling speed | m/min | 26 | |
| Motor Syetem | Lifting motor | YZP355M2-10 220KW×2 | |
| Derricking motor | YZP250M-8 37KW | ||
| Slewing motor | YZP225M-8 (Vertical) 37KW×2 | ||
| Traveling motor | YZP160L-6 11KW×4 | ||
| Rails Distance | m | 9 | |
| Base Width | m | 9 | |
| Traveling Wheel Quantity | Pcs | 24(Driving wheel is 12pcs) | |
| Max Wheel Pressure | KN | ≤250 | |
| Max Wind Pressure(Working) | N/m2 | 250 | |
| Slewing Radius of turntable end | m | <7.8 | |
| Total Motor Capacity | KW | 562 | |
| Power Syetem | Cable drum, three phase four wire system, AC380v 50Hz | ||
C. Port and Shipyard Crane Pictures

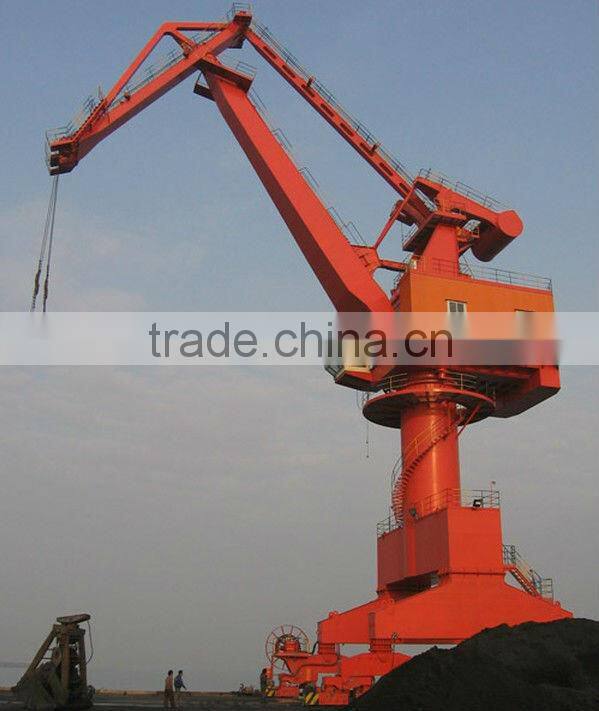

KH506 Four-bar Shipyard Crane

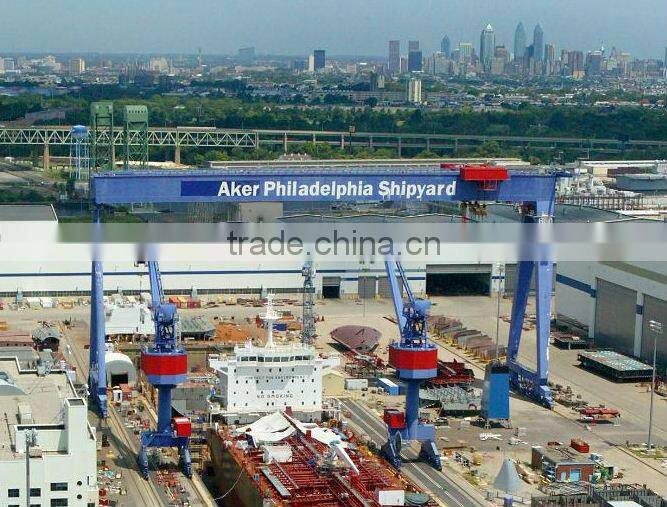

KH507 Single Girder Shipyard Crane

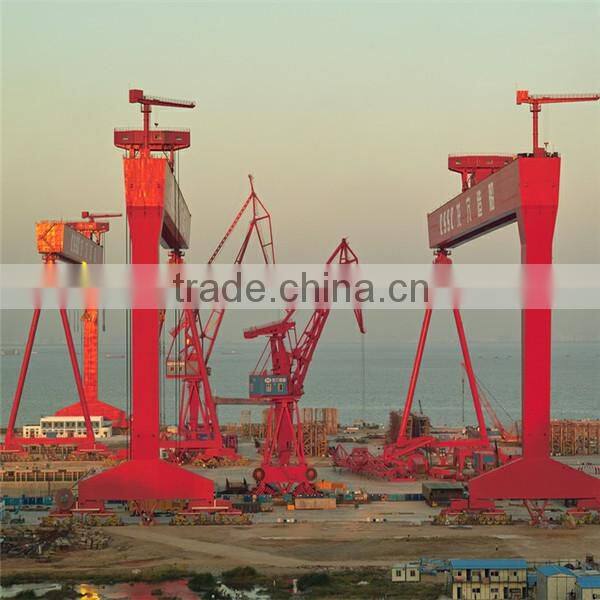

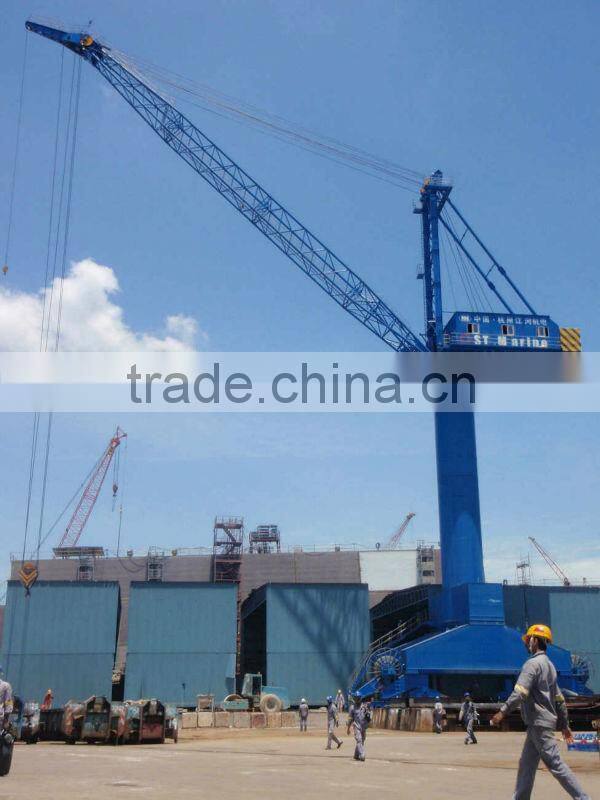

D. Shipyard Crane in using
To Lift the Dream
As a crane equipment trader, to lift the heavy goods is only our obligation, not our purse.
Sometimes we want to own a super robot, because the load is too heavy to bear, sometimes in life,
sometimes in career. So we have to sigh for the dream.
To Lift the Dream, this is our purse. The trade consultant would be the super robot of your life, career,
and your dream.
Consult Guide
Estimate Parameter:
1. Lifting Load capacity (max goods weight),
2. Span or Girder length
3. Lifting Height ( how height?)
Or Just tell me where you will use, then it is my turns.
I am in China, but serve you in the world.
Kehao, your Trade Consultant
Jess
jess@xxkhjx,cn
skype: khjesstian
