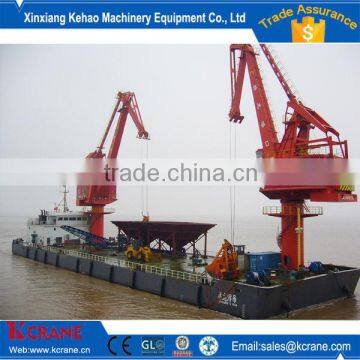

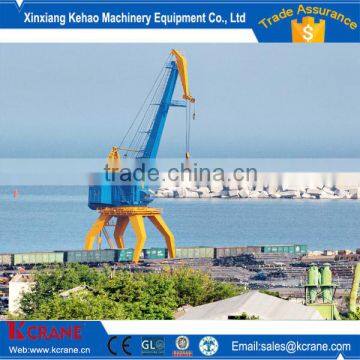

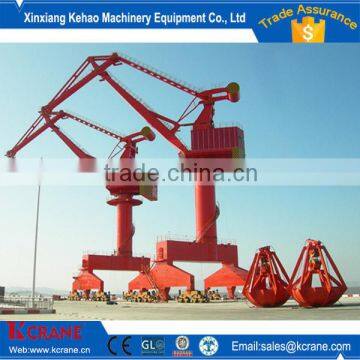

Shipyard Floating Dock Crane
| ||
| Shipyard Floating Dock Crane Description | ||
| Key words: |
Portal crane, Portal slewing crane, Shipyard crane, 10t portal crane
♦ Capacity: 5.0 tons ~ 250 tons ♦ Size requirements: needed to be dsigned as customer's requirements
|
|
|
| ||
Shipyard Floating Dock Crane Components | ||
|
Shipyard Floating Dock Crane are mainly used in the port, shipyard, ships at wharfs for mechanized handing and transshipment. it inculdes lifting mechanism, traveling mechanism, rotary mechanism, luffing mechanism. Engineers will design the portal crane according user requirements. some parts for your reference as below:
| ||
|
Lifting Mechanism: ♦ Gear box ♦ Lifting motor ♦ Lifting brake ♦ Lifting fan ♦ Cable drum
Traveling mechanism: ♦ Rail safety device ♦ Travel stop buffer block ♦ Anchor device ♦ Traveling wheel ♦ Full set electric equipment
Luffing Mechanism: ♦ Jib ♦ A-bracket ♦ Wire rope ♦ Full set electric equipment Rotary Mechanism: ♦ Turnable ♦ Retory gear ♦ Full set electric equipment
Note: The detailed packing list, please consult your marktering consultant. Above information for your reference. |
|
| Project one: Shipyard Floating Dock Crane |
|
Step one: Design drawing
|
Step Two: Parameters Confirm:
Product Parameter of 7.0t Single Beam Portal Crane | |||
| Product Name | Unit | Parameter | |
| Working Classification | A6 | ||
| Load Capacity | t | 7.0 | |
| Outreach Range | Max range | m | 20 |
| Min range | m | 6.0 | |
| Lifting Height | Above rail | m | 22 |
| Below rail | m | 15 | |
| Working Speed | Lifting speed | m/min | 0-20m/min |
| Derricking speed | m/min | 0-20m/min | |
| Slewing speed | R/min | 0-0.9r/min | |
| Traveling speed | m/min | 0-25m/min | |
| Motor Syetem | Lifting motor | YZP355M2-10 220KW×2 | |
| Derricking motor | YZP250M-8 37KW | ||
| Slewing motor | YZP225M-8 (Vertical) 37KW×2 | ||
| Traveling motor | YZP160L-6 11KW×4 | ||
| Rails Distance | m | 9 | |
| Base Width | m | 9 | |
| Traveling Wheel Quantity | Pcs | 24(Driving wheel is 12pcs) | |
| Max Wheel Pressure | KN | ≤250 | |
| Max Wind Pressure(Working) | N/m2 | 250 | |
| Slewing Radius of turntable end | m | 6 | |
| Total Motor Capacity | KW | 562 | |
| Power Syetem | Cable drum, three phase four wire system, AC380v 60HZ | ||
Step Three: Test on-site | |
|
|
Step1: Inspect before test ♦ Checking the purchased part cetificate ♦ Inspect Installation,Circuit, Instrument Equipment,personnel allocation whether feasible
Step2: safety limit test ♦ isolated running ♦ Lifting-amplitude of variation ♦ Lifting-slew Step3: Load capacity test(7ton) ♦ isolated running ♦ Lifting-amplitude of variation ♦ Lifting-slew
Step4: Overload dynamic test(7.7ton) ♦ isolated running ♦ Lifting-amplitude of variation ♦ Lifting-slew
Step5: Overload static test ♦ Loading 125%,8.75t lifting below 0.3m,keep in 10 minutes
|
|
If you interested in our products, we can talk more and supply you some test videos on the spot for your reference.
|
| Step Four: Packaging and Delivery | ||
| ||
| Step Five: Installation |
Step Five: After Services
1.14 months warranty when products leave the factory, or 12 months warranty after installation and
commissioning in addition to the human damage factors.
2. 2 years spare-parts provided for better maintenance.
3. Professional technical staffs provide installation, commissioning and training services.
4. Delivery with English user manual, parts manual, product certification and other relevant
certificates.
5. Technical advisory for any time and Engineers available to service machinery overseas.
Certificate: CCS
1.Certificate:What are the certificates and test certificate for crane equipment will be used so many
countries?
Answer: CE, ISO, and CCS, BV, LR, ABS all classfication.
2. Basic Parameters: What should I do if I want to buy a protal crane?
Answer: please try to finish the main specification as below:
1). Max load capacity ---ton
2). Max working radius ---m
3). Lifting height above rail/below rail ---m
4). Rail distance or guage ---m
5). Travelling distance ---m
Or let the Trade Consultant to help you to finish with you.
Waitting for your inquiry.
