Specifications
Mini Crane For House Construction1.Load capacity:100-1000kg
2.Power:Diesel engine 6-10HP
3.Max Rotation Angle:360
Yiwu Wujun Machinery Factory
Manager:Brian Skype:wujunmachinery Cel:86-187 5789 3377

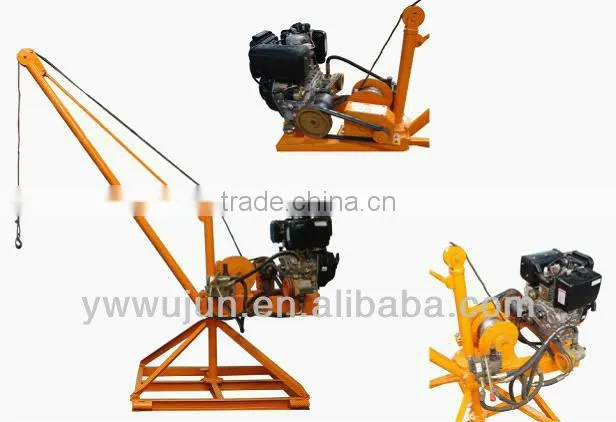

WJMAC DJC500 mini portable crane
Our Services
As a professional exporter,our target is to serve worldwide clients with high-quality products,great,reliability,devoted responsibility,professional services and honorable credibility to meet customers' requirements in all aspects.
Application
Mini crane is usually used on ordinary construction sites,roads,bridges projects and concrete prefabricated parts factories.
Successful cases
Mini crane has been successfully sold to Mongolia, Uzbekistan, Kazakhstan, Congo, Nigeria, Singapore, Ghana, Libya, Chile, Philippines, Kenya,etc. What's more, they have received praise with good quality and excellent after-sale service.
Main Technical Parameter | |||
Model |
DJC 500 | ||
Max Loading Capacity |
500KGS |
||
Engine Type |
Diesel Engine or Gasoline Engine |
||
Power of Engine |
6 HP |
||
Starting system |
Recoil |
|
|
Lock device |
Gearbox |
||
Pressure of Hydraulic Motor |
20 Mpa |
||
Pressure of Gear Pump |
20 MPa |
||
Pressure of Multi-way Valve |
16 Mpa |
||
Lifting Height |
30 m |
||
Max Rotation Angle |
360° |
||
Raising Speed |
20-40 m/min |
||
Gross Weight |
200 KGS |
||
Loading Plan |
50 sets / 20GP , 160 sets / 40 HC |
50 sets / 20GP , 150 sets / 40 HC |
|
