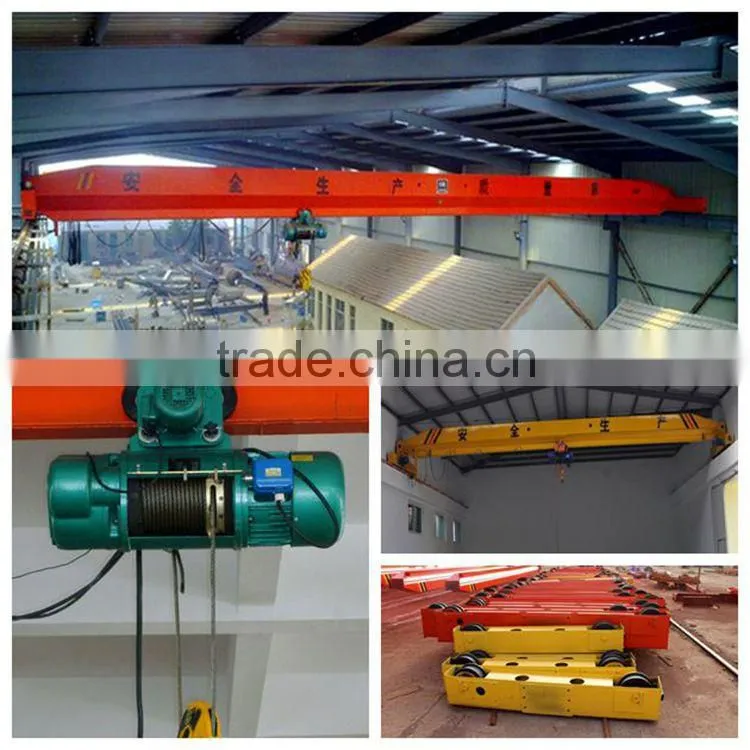

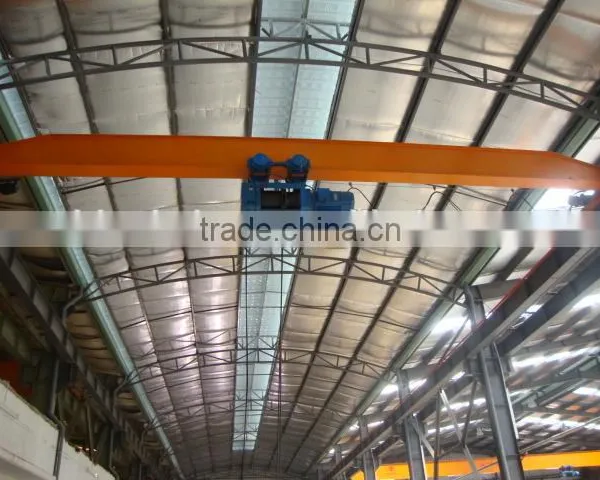

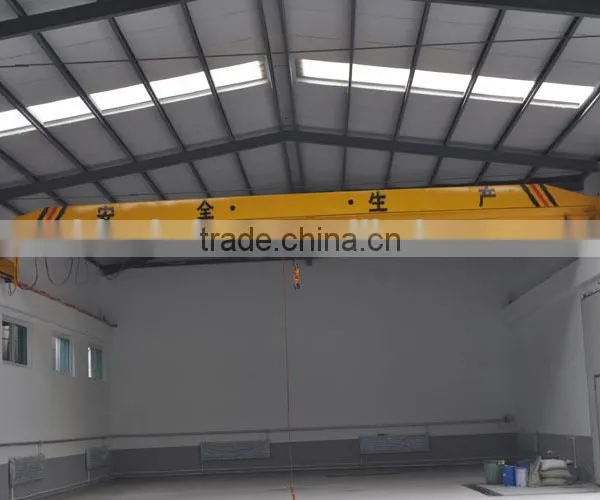

Monorail electric crane,motor driven crane is designed as light type lifting equipment. It consists of main girder, end carriage hoist and electric parts. The whole set could lift goods and cargos with single lifting speed or double lifting speed electric hoist. It is widely used in workshop, factory, warehouse and stuff yard.

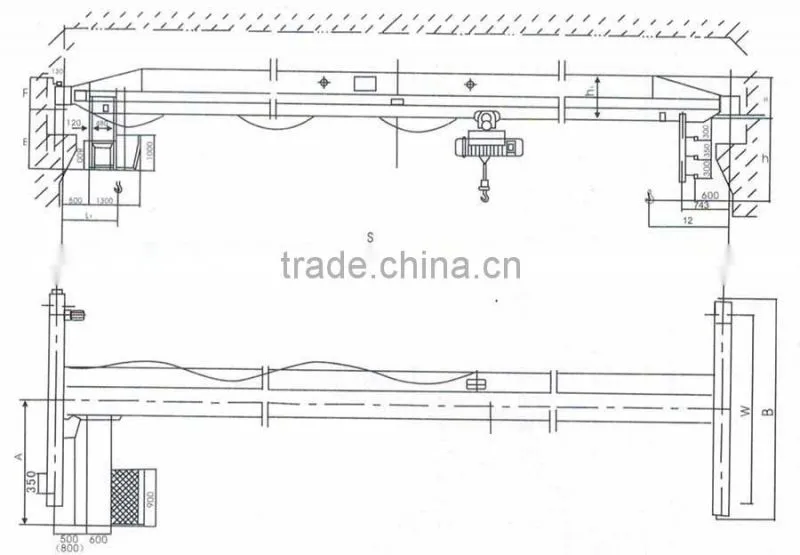

1. Sketch - Monorail electric crane,motor driven crane
2. Parameters - Monorail electric crane,motor driven crane
1,2,3,5,10 |
16,20 |
|||||||||
|
Crane travelling mechanism |
Working speed(m/min) |
20 or 30 |
20 or 30 |
|||||||
Motor |
Model |
YSE802-4 |
YSE90L-4 |
ZDR100-4 |
YSE90L-4 |
YSE80L1-4 |
YSE90L-4 |
|||
Power(kw) |
2×0.8 |
2×1.5 |
2×1.5 |
2×1.5 |
4×0.8 |
4×1.5 |
||||
Rotation (n/min) |
1380 |
1380 |
||||||||
Lifting mechanism |
Electric hoist model |
CD1 |
MD1 |
CD1 |
MD1 |
|||||
|
electric hoist travelling mechanism |
Lifting speed (m/min) |
8(7) |
8/0.8(7/0.7) |
3.5 |
3.5/0.35 |
|||||
Lifting height (m) |
6 ,9 ,12, 18, 24, 30 |
6 ,9 ,12, 18, 24, 30 |
||||||||
Travelling speed (m/min) |
20 |
20 |
||||||||
Motor |
cone squirrel-cage model |
cone squirrel-cage model |
||||||||
Work duty |
A3 |
A3 |
||||||||
Power supply |
380V 50HZ three phase |
380V 50HZ three phase |
||||||||
Wheel diameter |
270mm |
370mm |
||||||||
Width of trail |
37-70mm |
37-70mm |
||||||||

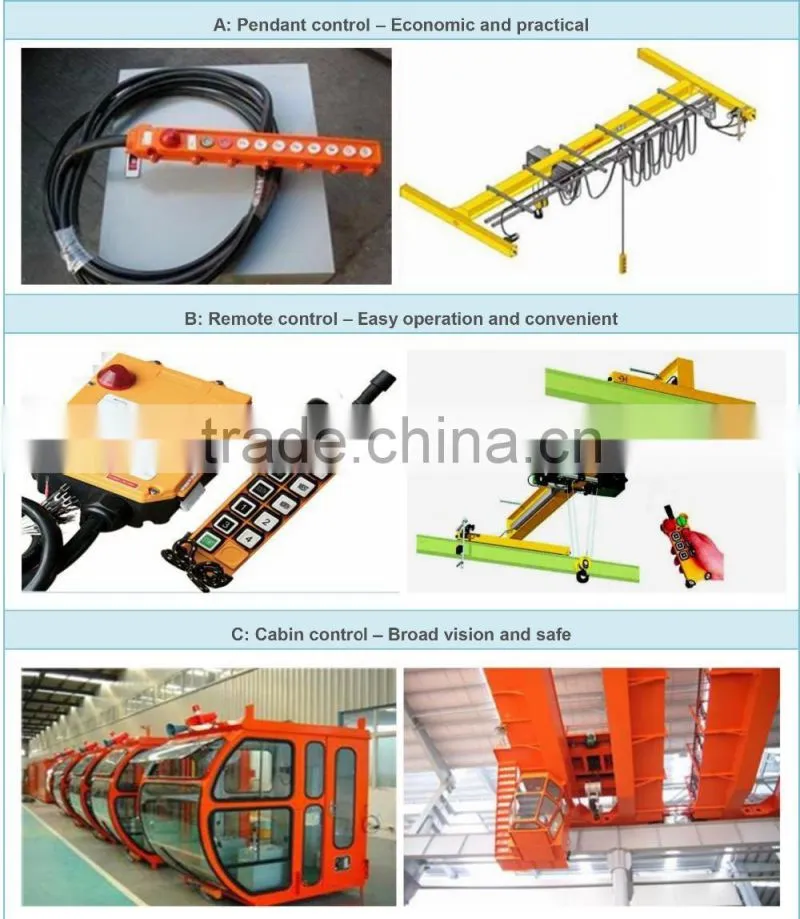

3. Control mode - Monorail electric crane,motor driven crane
Our Services |
|
Pre-Sales Service After-Sales Service * Inquiry and consulting support. * One year warranty. * Drawings support. * Engineers available overseas. * Technical support. * Installation training. * Commissioning. * Using training. * View our Factory. * Maintenance training. |
1. What should I provide when inquiry? |
|
A: Lift capacity B: Span C: Lift height D: Power source E: Control mode F: Other requirements The more detailed, the better! |
2. Are the products customized? |
The cranes can be customized according to your using condition and requirements |
3. How to install? |
|
A: Installation and use manual. B: Do the installation training for you. C: Engineers available to service machinery overseas. |
4. Crane failure |
The accessories are free in the period of warranty if it is the quality problems |
