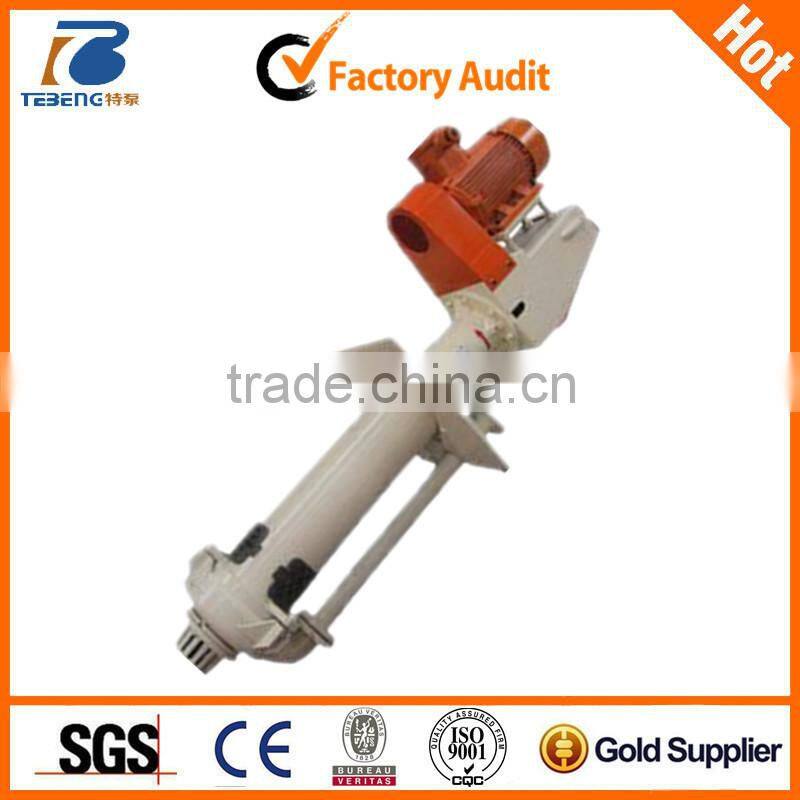

Acid Vertical Sump Pump SS304 SS316

FOB Price

US$ 230 - 6,300 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

1.acid vertical sump pump SS304 SS316
2.head:2~135m
3.flow:10~530m3
4.Used in mining sewage

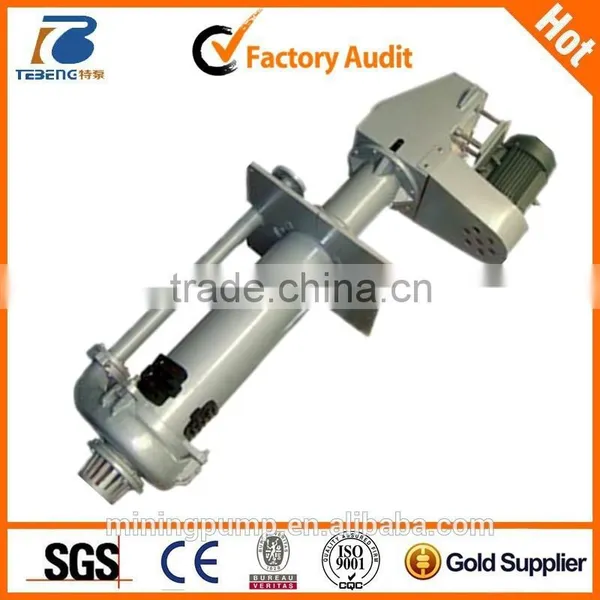

acid vertical sump pump SS304 SS316

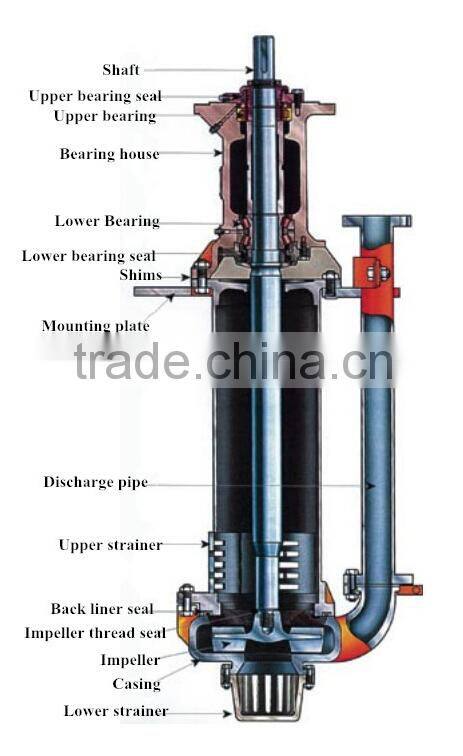

SP/SPR Hard metal and rubber lined slurry pump are designed for heavy continuous handling of abrasive and corrosive slurries whilst submergedin sumps or pit .The pump has no shaft seal, easy to maintenance andcost less. Hard metal and rubber parts are optional for different applicationsand interchangeable.

Typical Applications
Phosphoric acid/ Lime grinding /Coal/ FGD /Waste water

Parts	Material	Material specification
Casing, Backliners & Impellers	Hard Metal	A05: 23-30% Chrome White Iron
		A07: 14-18% Chrome White Iron
		A12: 30% Chrome White Iron
		A49: 27-29% Chrome White Iron
		A33: 33-37% Chrome White Iron
	Rubber	R26,RT08,RT55,RT38,RT33: Natural rubber
		S01: EPDM rubber
		S44/ST42: Neoprene
		S21: Butyl
		S31: Hypalon
Shaft	Steel	E05: Type 1045( ASTM)
Shaft	Rubber	R10:Natural rubber
Column, Discharge pipe , Shaft & Mounting plate	steel	E02:Type 1020( ASTM)
Column, Discharge pipe , Shaft & Mounting plate	Rubber	R10:Natural rubber
Bearing housing	Metal	G01:Grey iron
Bearing housing	Metal	D21:Ductile iron
Strainers	Metal	G01:Grey iron
Strainers	Rubber	R10: Natural rubber
Joint rings and Seals	Rubber	S21: Butyl
		S01: EPDM rubber S10: Nitrile,
		S31: Hypalon,
		S44/ST42: Neoprene
		S50:Viton

If you insterest of our pump,Pls contact me freely.
