Specifications
Dust Suppression Pump1. Operate Normally Even if Intake deficiency
2. Light, Small, Easy Install & Mainte

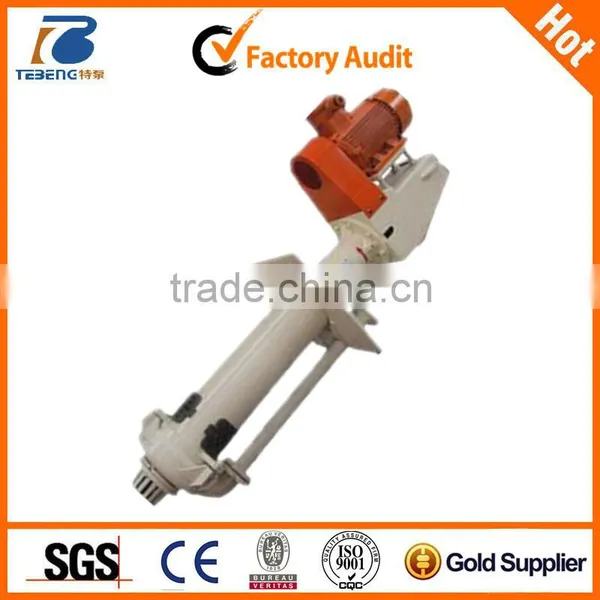

(R)VS Series Vertical Sump Pump is a single stage, single-suction vertical centrifugal pump designed for transfering corrosive and high concentration slurries with big abrasive solids in mining, metallurgy, power, coal, chemical industry, building materials and other industries application.
(R)VS slurry pumps normally are immersed in sump or pit to operate without any shaft sealing or water sealing, even if intake deficiency. With ruber linned high chrome alloy wet parts, (R)VS sump pump suits to transfering corrosive and abrasive slurry.
According to diffirence of liquid level, proper lengths of motor shafts and suction pipes are selected to match that, and use the diffirent speed to enable the pump operate in the best condition, thereby extends the pump .
Structure Drawing:
1.Shaft |
2. Bearing |
3.Bearing housing |
4. Bearing spacer |
5.Bearing |
6. Shim |
7. Column |
8. Strainer |
9.Back Liner |
10.Impeller |
11.Pump Casing |
12. Lower Strainer |
13.Discharge Pipe |
14.Flushing pipe |
15.Coupling part |
16.Middle supporting part |
SPECIFICATIONS
• Single Case, Single Stage, Single-Suction, Vertical Slurry Pump
• Volute Casing : High Chrome Alloy
• Impeller Material: High Chrome Alloy
• Rear Liner Plate: High Chrome Alloy
• Discharge Size: 40mm to 300mm
• Flow rate: Up to 76020GPM
• Head: Up to 132
SELECTION CHART
PERFORMANCE PAMAMETER
APPLICATION SENCE
