High Flow Electric Submersible Pump

Name: High Flow Electric Submersible Pump
Brand: SSIP
SKU: 101321815
Availability: InStock

US$ 200 - 1,000 MOQ: 1 Set

Key Specifications

Place of Origin:

Hebei, China

Brand Name:

SSIP

Model Number:

TBWQ

Shijiazhuang Special Industrial Pump Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Xingang

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Hebei, China

Brand Name SSIP

Model Number TBWQ

Theory Centrifugal Pump

Structure Single-stage Pump

Usage Water

Power Electric

Standard or Nonstandard Standard

Fuel Other, electric

Pressure High Pressure

Application Sewage

High flow electric submersible pump

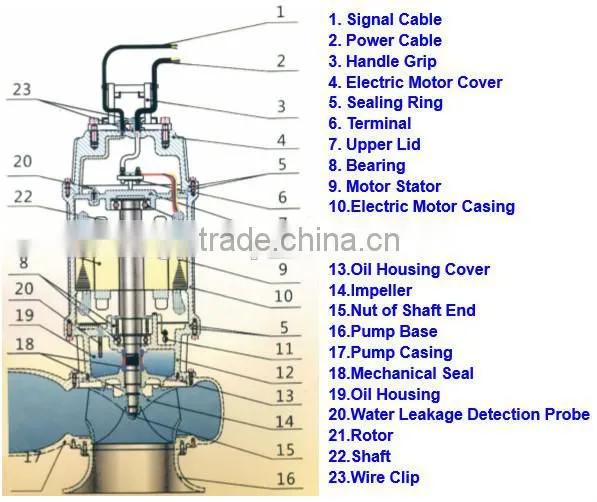

Temperature sensor – Over-temperature sensors protect the motor by sounding an alarm or shutting down the unit if internal temperatures exceed safe operating limits.
Moisture detector – A twin electrode system provides double protection by detecting moisture intrusion in either the motor housing or the mechanical seal chamber.
Mechanical seals – The TBWQ double-seal
arrangement in which both sets of seal springs are enclosed in the oil reservoir. Silicon Carbide Seal faces are subject to submergence pressure only for greatly extended wear life.
Heavy-duty water end – Standard high chrome iron construction coupled with heavy section
thickness provides the ultimate in protection against abrasive wear in heavy slurries.
Easy maintenance access – T-bolt construction allows rapid disassembly of the pump end for
maintenance access. The heavy-duty impeller is not screwed on, but keyed to the shaft for easy removal and protection against movement
during reverse rotation.
Optional agitator – A robust agitator can be fitted to the suction eye allowing the pump to agitate high concentrations of solids.

Cooling jacket allows continuous pump operation with the motor completely unsubmerged
Suction saver prevents clogging in sumps where tramp material or very large solids are present
Quick disconnect guides the tbw into the sump with automatic connection to discharge piping.
Discharge elbow in high chrome iron with heavy wall thickness allows for lower cost installation by having the correctly designed and sized discharge elbow for your application
Sparger ring designed for your application that allows for improved sump removal of larger solids by spraying high pressure liquid back into the sump
Slide bracket allows for easier installation on-site and provides correct positioning of the pump in your sump
