Submersible Sewage Pump 50hp, Discharge Sewage Pump, Float Switch Submersible Sewage Pump
- Tianjin Shanghai
- T/T D/P D/A Money Gram Credit Card
You May Like
-
Discharge Sewage Pump, Float Switch Submersible Sewage Pump, Basement Sewage Pump
-
Float Switch Submersible Sewage Pump, Basement Sewage Pump, Sewage Mud Pump
-
Basement Sewage Pump, Sewage Mud Pump, Vertical Submersible Sewage Pump
-
Sewage Mud Pump, Vertical Submersible Sewage Pump, Submersible Sewage Centrifugal Pump
-
Vertical Submersible Sewage Pump, Submersible Sewage Centrifugal Pump, Mobile Sewage Pump
-
Submersible Sewage Centrifugal Pump, Mobile Sewage Pump, Electric Sewage Pumps
Product Details
| Place of Origin | Hebei, China | Brand Name | TEBENG | |
| Model Number | float switch submersible sewage pump | Theory | Centrifugal Pump | |
| Structure | Single-stage Pump | Usage | Water | |
| Power | Electric | Standard or Nonstandard | Standard | |
| Fuel | Diesel | Pressure | High Pressure | |
| Application | Sewage |
Product Description
Specifications
float switch submersible sewage pumpsewage slurry pump
1.Robust
2.Spacious Flow-passage
3.Strong Winding Resistance
WQ Nonclogging Submersible Sewage Pumps are designed for handling dirty water with solid granules or fibre in typical septic tank, effluent, municipal sewage, sludge and sump applications.
Structure
Benefit:
Capacity. 115L/min
Head: up to 200m
Operation Conditions
Max. Submersion Depth: 15m
Max. Liquid Temperature: 40oC
PH: 4-10
Max. Working pressure: 14bar

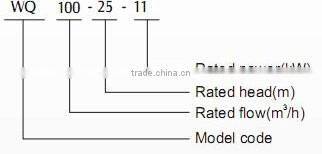

Model Defination
Feature
Extrusion chamber, suction chamber: Cast iron or Stainless steel
Motor Bracket: Cast iron or Stainless steel
Motor shaft: SS420 or CS45#
Mechanical seal: Ceramic - Graphite or Ceramic - Ceramic
Screw: CS45# Chromium Plated or SS420
Electric motor: Single-phase 220V - 50Hz with capacitor and thermal overload protector. Three phases
380V - 50Hz. Voltage fluctuation for 10% more or less is allowed and other voltage for 60Hz is also available.
Insulation Class: E
Protection: IPX8

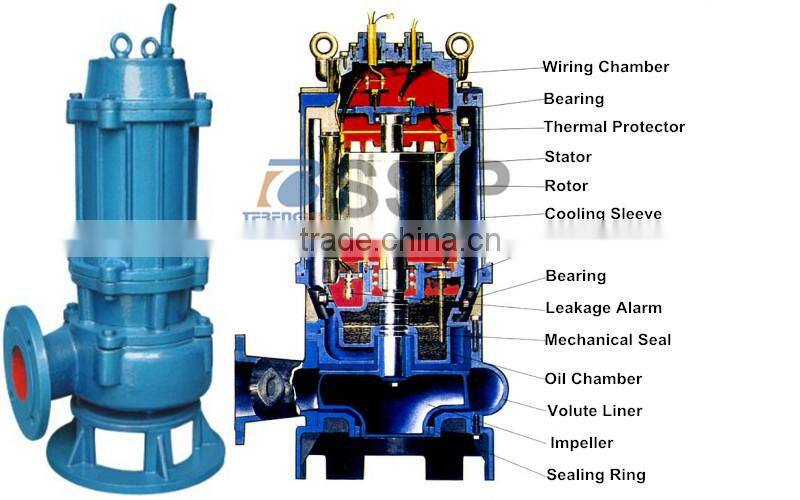

Section Chart

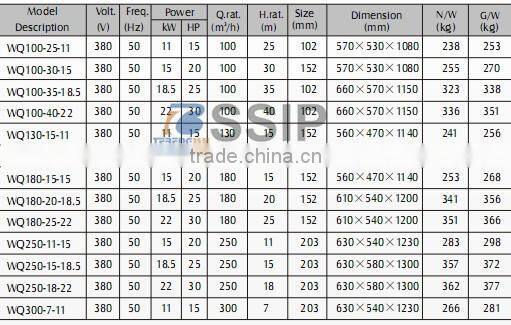

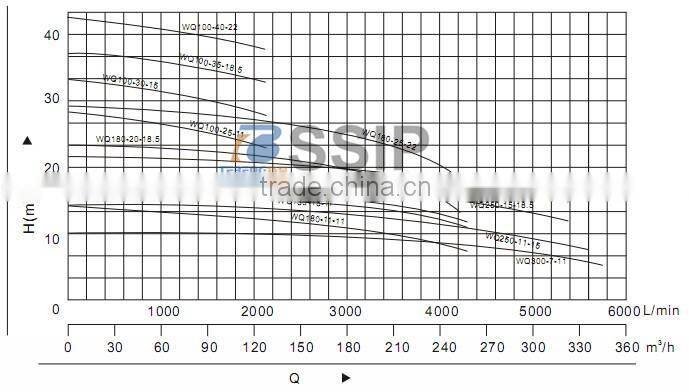

Model Parameter N=2850r/min

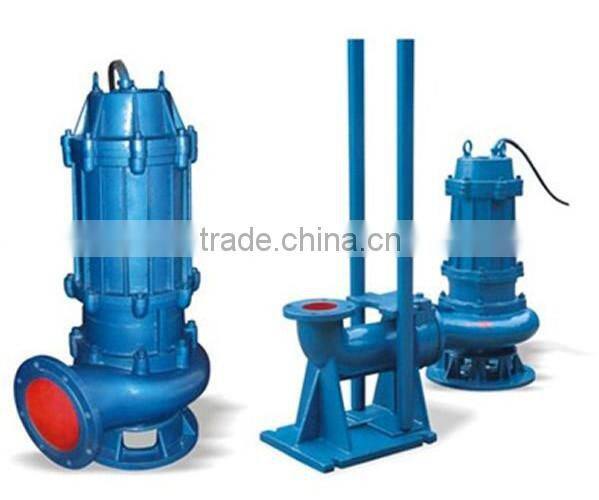

Instalation Site
