Specifications
ZGB mill tailings Slurry Pump1. Long Life
2. Robust, Effictive
3. Easy Maintenance
4. Stable Performance

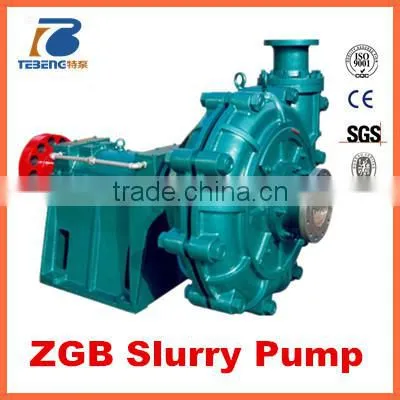

ZGB Mill Tailings Slurry Pump
ZGB slurry pump is a single stage, single-suction centrifugal pump that is designed to transfort the strong abrasive and high concentration slurries or corrosive slurries in Power, Mining, Metallurgical, Coal, Building Material, and other industrial applications.

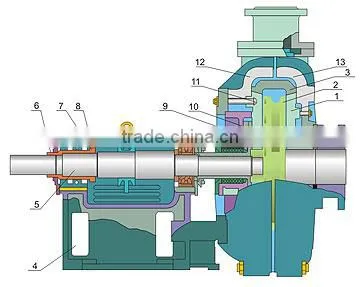

STRUCTRUAL DRAWING
1.Front Liner 2.Impller 3.Volute Liner
4. Pedestal 5.Shaft 6.Adjusting Bolt (B)
7. Adjusting Bolt (A) 8.Adjusting Cover 9.Expeller Ring
10.Expeller 11.Back Liner 12.Pump Body
13.Pump Cover

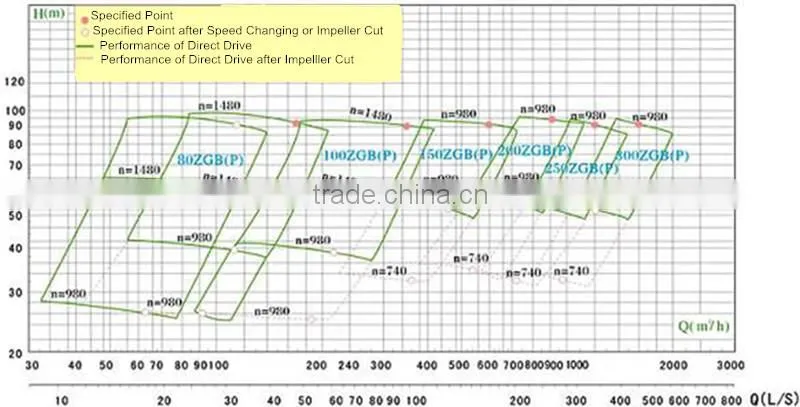

SELECTION CHART

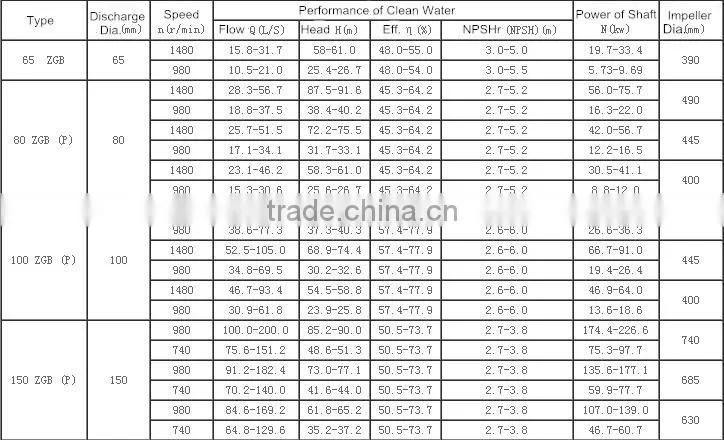

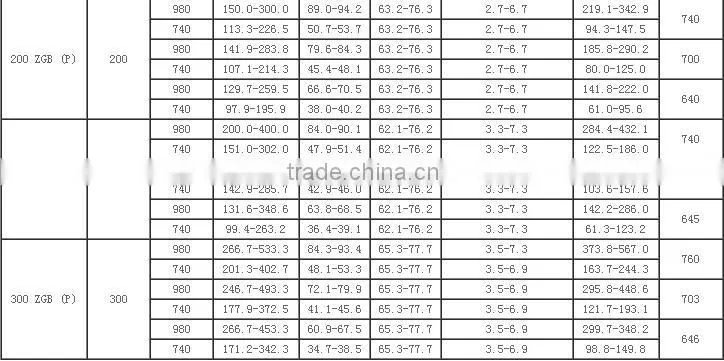

PERFORMANCE PAMAMATER
FEATURES
• The discharge outlet can be adjusted at eight directions with intervals of 45 degree to adapt various operating environments
• High chrome alloy lining allows for various abrasive material handling
• Large handling size means fewer clogged impellers
• Robust design allows it to be in difficult application environments
• High efficiency enable it save large energe
• Strong abrasive resistance material means long life cycle and low maintenance cost
• Replaceable wear metal liner means simple maintenance
DRIVING TYPE
- Direct Connect Driving (DC)
- Belt Driving
(CV) (CR) (ZV)
- Hydraulic Coupler Driving (HC)
PRODUCING PROCEDURE:
PACKING:
OUR FACTORY:
