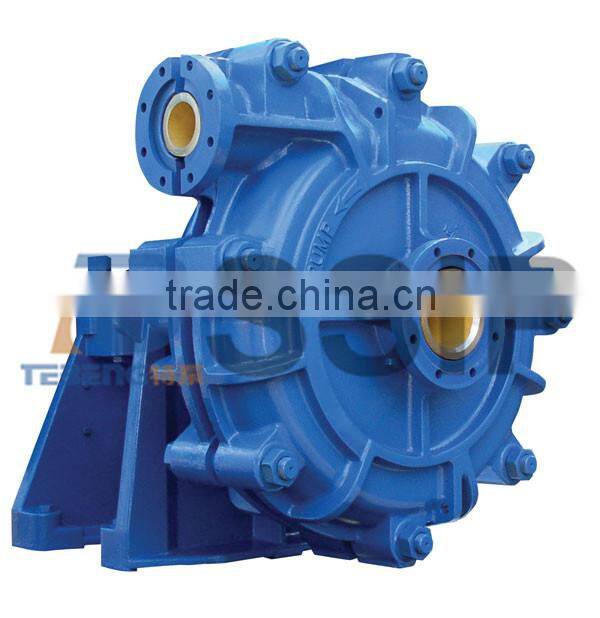

High Chrome Abrasion Resistant Mining Slurry Pump is a single stage, single-suction centrifugal pump that is designed to transfort the strong abrasive and high concentration slurries or corrosive slurries in Power, Mining, Metallurgical, Coal, Petrochemical, Building Material, and other industrial applications. Design concentration for ash slurry and coal slurry pumping is 45% by weight, and 60% for ore slurry pumping. To achieve more efficacy, slurry pumps can be used by series connection for special application request. The discharge outlet can be adjusted at 8 directions with intervals of 45 degree.

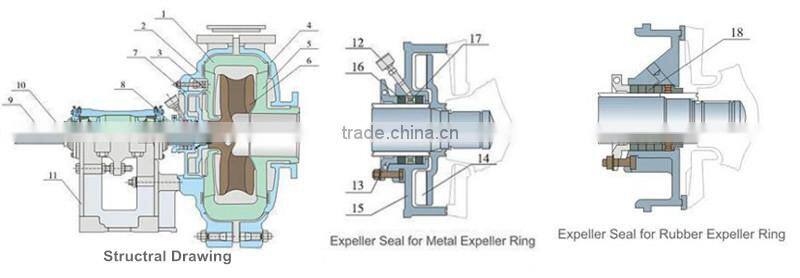

1. Volut Liner |
2. Pump Casing |
3. Back Liner |
4. Cover Plate |
5. Front Liner |
6. Impeller |
7. Suffing Box |
8. Shaft Sleeve |
9. Shaft Sleeve |
10. Bearing Housing |
11. Pedestal |
12. Grease Cup |
13. Split Packing Gland |
14. Expeller |
15. Expeller Ring |
16. Packing |
17. Water Seal Ring |
18. Lip Seal Ring |
|
|

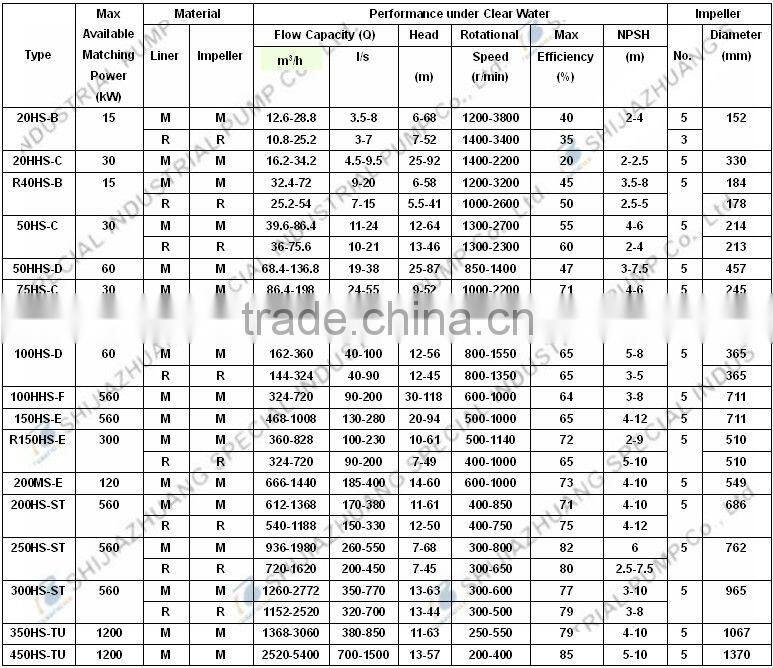

TYPE PARAMETER
SPECIFICATIONS
• Single Stage, Single-Suction Centrifugal Pump
• Split Casing: Ductile Cast iron
• Bearing Housing, Pedestal & Baseplate Ductile Cast iron
• Volute Casing : High Chrome Alloy or Ruber
• Impeller Material: High Chrome Alloy or Ruber or Ruber
• Rear Liner Plate: High Chrome Alloy
• Front Liner Plate: High Chrome Alloy or Ruber
• Discharge Size: 1 “ to 12“
• Flow rate: Up to 14,970GPM
• Head: Up to 408 ‘
• Solids Diameter: Up to 3.5 “
• Shaft Seal Type: Expeller seal+Packing seal, or Mechanical seal
• Impeller Type: Enclosed
• Temprature of Slurry Handing: Max. 60 Degree Celsius
• pH Levels of Slurry Handing:5-12
• Concentration of Ash Slurry Handing: 45% By Weight
• Concentration of Ore/Coal Slurry Handing: 60% By Weight

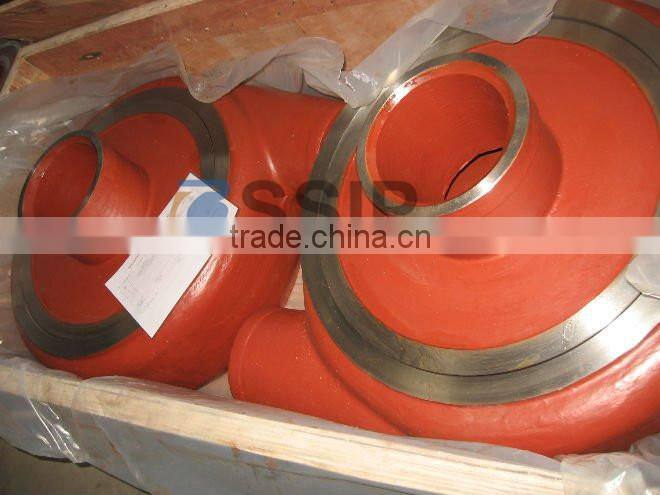

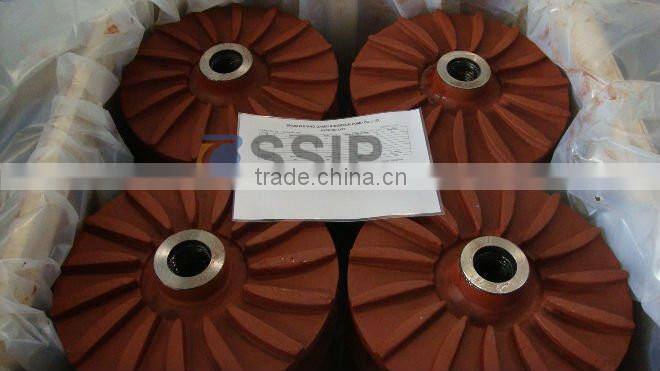

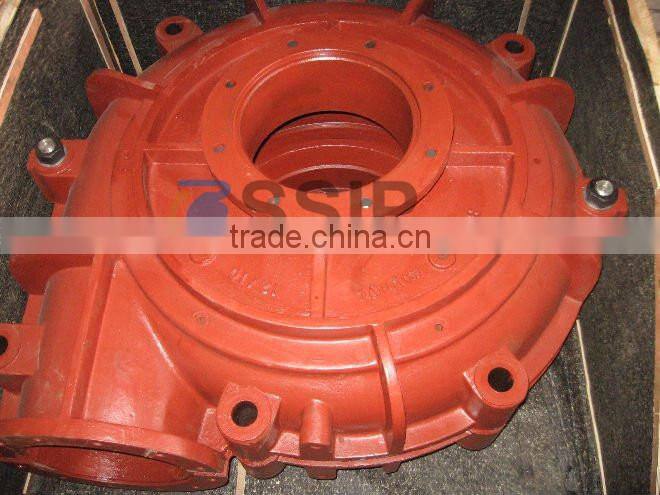

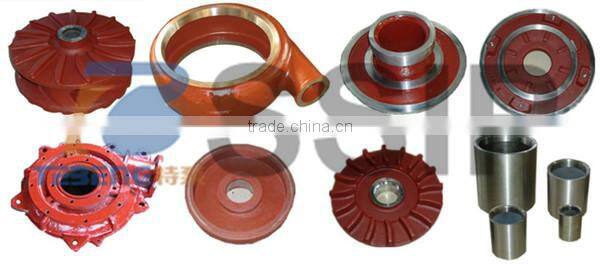

Metal Wet Parts

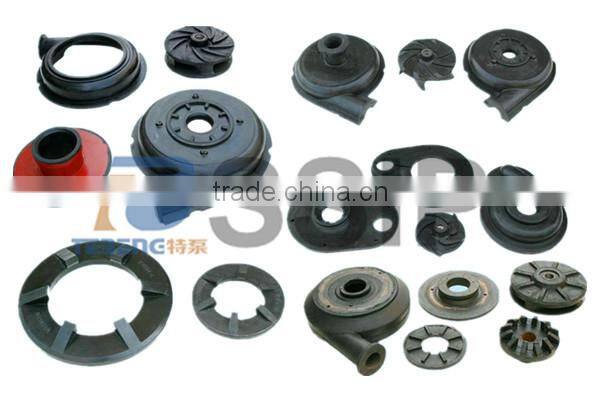

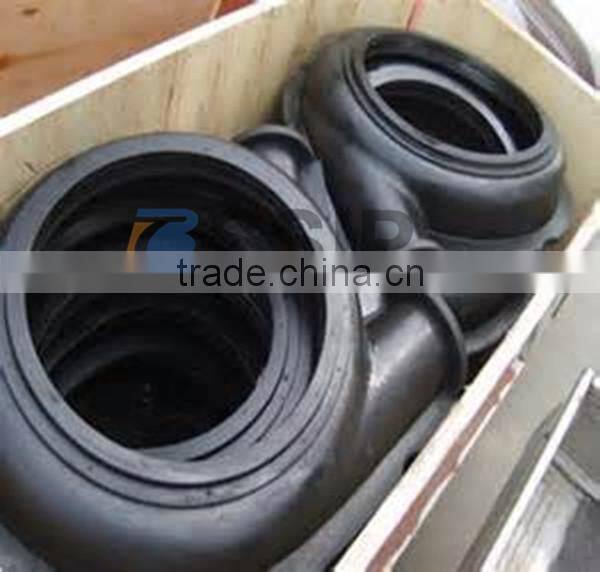

Ruber Wet Parts
Packing

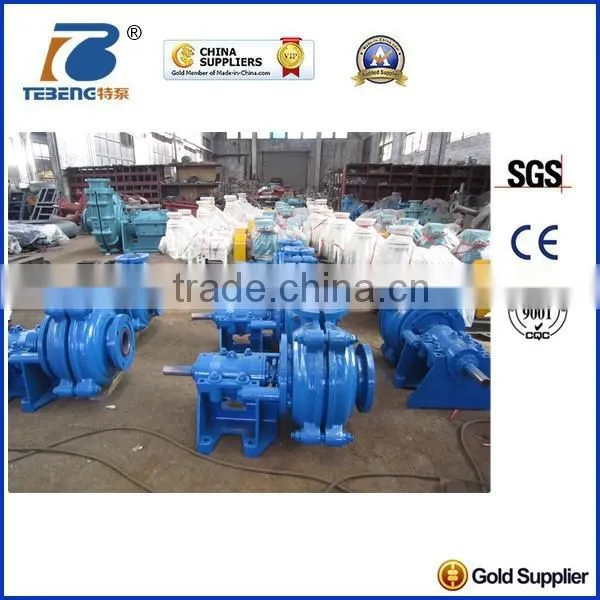

OUR FACTORY
