Help CenterChina Slurry Pump
Related Products
Specifications
China Slurry Pump1. Flow Rate: Up to 950 l/s
2. Head: 62m
3. DN: 350mm
4. Max Power: 1200kW

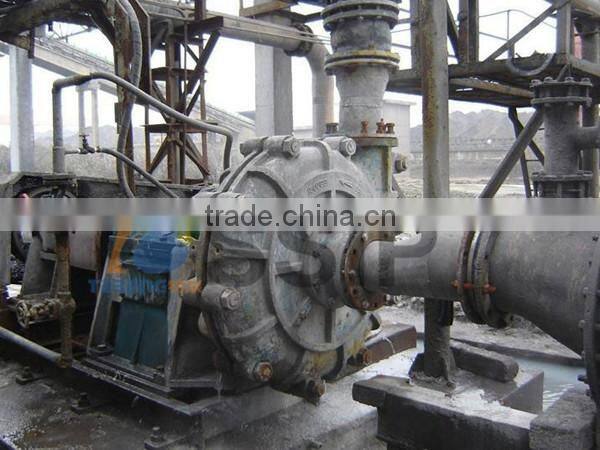

China Slurry Pump is a single stage, single-suction centrifugal pump that is designed to transfort the strong abrasive and high concentration slurries or corrosive slurries in Power, Mining, Metallurgical, Coal, Petrochemical, Building Material, and other industrial applications. Design concentration for ash slurry and coal slurry pumping is 45% by weight, and 60% for ore slurry pumping. To achieve more efficacy, slurry pumps can be used by series connection for special application request. The discharge outlet can be adjusted at 8 directions with intervals of 45 degree.

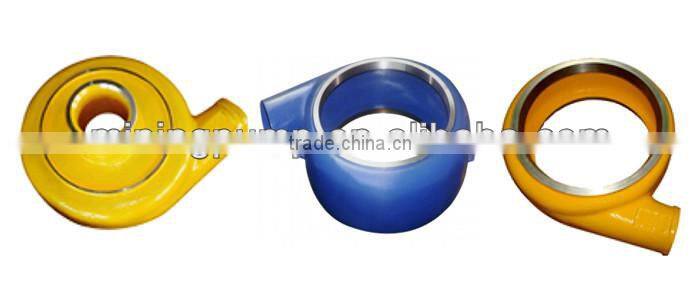

1. Volut Liner |
2. Pump Casing |
3. Back Liner |
4. Cover Plate |
5. Front Liner |

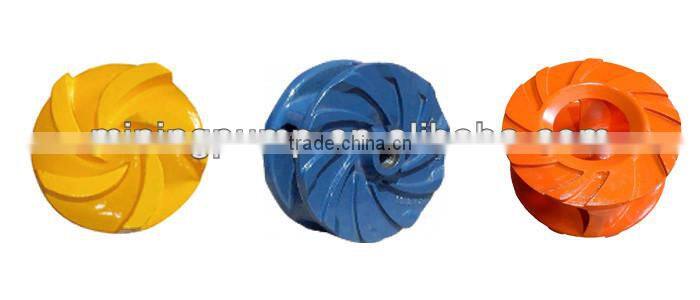

6. Impeller |
7. Suffing Box |
8. Shaft Sleeve |
9. Shaft Sleeve |
10. Bearing Housing |
11. Pedestal |
12. Grease Cup |
13. Split Packing Gland |
14. Expeller |
15. Expeller Ring |
16. Packing |
17. Water Seal Ring |
18. Lip Seal Ring |
|
|
TYPE PARAMETER
SPECIFICATIONS
- Single Stage, Single-Suction Centrifugal Pump
- Split Casing: Ductile Cast iron
- Bearing Housing, Pedestal & Baseplate Ductile Cast iron
- Volute Casing : High Chrome Alloy or Ruber
- Impeller Material: High Chrome Alloy , Ruber Lined or Ruber
- Rear Liner Plate: High Chrome Alloy
- Front Liner Plate: High Chrome Alloy or Ruber
- Discharge Size: 1 “ to 12“
- Flow rate: Up to 14,970GPM
- Head: Up to 408 ‘
- Solids Diameter: Up to 3.5 “
- Shaft Seal Type: Expeller seal+Packing seal, or Mechanical seal
- Impeller Type: Enclosed
- Temprature of Slurry Handing: Max. 60 Degree Celsius
- PH Value of of Slurry Handing:5-12
- Concentration of Ash Slurry Handing: 45% By Weight
- Concentration of Ore/Coal Slurry Handing: 60% By Weight

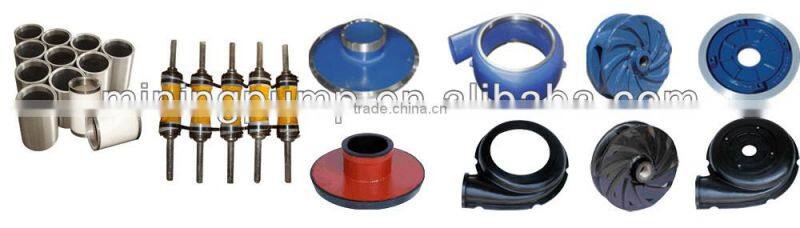

PARTS MATERIAL
No. |
Parts |
Material |
1 |
Impeller |
High-chrome alloy: A05, A07, A49 |
Rubber | ||
2 |
Volute Liner |
High-chrome alloy A05, A07, A49 |
3 |
Front liner |
High-chrome alloy A05, A07, A49 |
Rubber | ||
4 |
Rear liner |
High-chrome alloy A05, A07, A49 |
Rubber | ||
5 |
Liner |
High-chrome alloy A05, A07, A49 |
6 |
Expeller |
High-chrome alloy A05, A07, A49 |
7 |
Shaft sleeve |
3Cr13 |
8 |
Water-seal ring |
High-chrome alloy A05, A07, A49 |
9 |
Shaft |
45#steel quenching And high temperature tempering |
10 |
Bearing housing |
Gray iron |
11 |
Expeller Ring |
High-chrome alloy A05, A07, A49 |
Rubber | ||
12 |
Front casing |
Gray iron or Ductile Iron QT500-7 |
13 |
Rear casing |
Gray iron or Ductile Iron QT500-7 |
14 |
Base |
Gray iron |
15 |
Bracket |
Ductile Iron: QT500-7 |

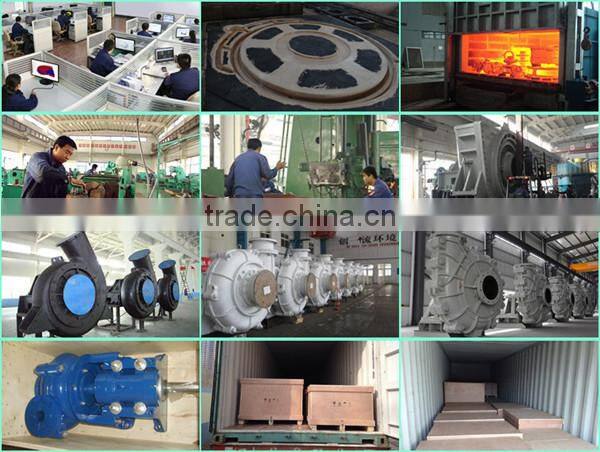

OUR FACTORY
