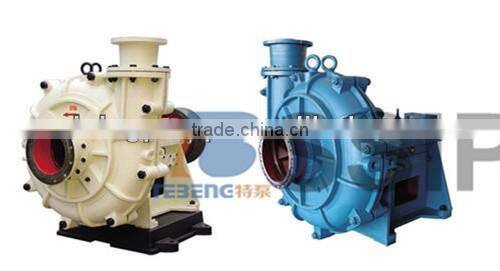

mining slurry pump1. Long Life
2. Robust, Effictive
3. Easy Maintenance
4. Stable Performance
ZJ series slurry pump is a single stage, single-suction centrifugal pump that is designed to transfort the strong abrasive and high concentration slurries or corrosive slurries in Power, Mining, Metallurgical, Coal, Building Material, and other industrial applications. Design concentration for ash slurry and coal slurry pumping is 45% by weight, and 60% for ore slurry pumping, at pH levels 5 to 12. To achieve more efficacy, ZJ slurry pumps can be used by series connection for special application request.

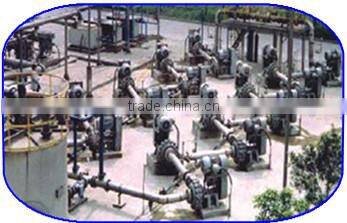

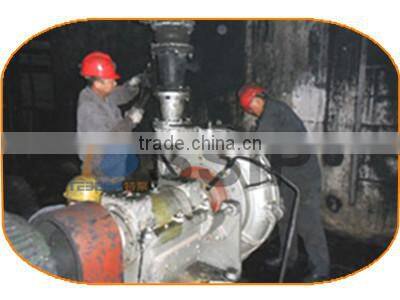

series connection application in power plant
STRUCTRUAL DRAWING
1.Coupling 2.Shaft 3.Bearing Housing
4.Disassembly Ring 5.Expeller 6.Rear Liner Plate
7.Volute Casting 8.Impeller 9.Front Liner Plate
10.Front Split Casting 11.Rear Split Casting 12.Packing Box
13.Water-seal 14.Baseplate 15.Pedestal
16.Adjusting Bolt
SPECIFICATIONS
• Single Stage, Single-Suction Centrifugal Pump
• Split Casing: Ductile Cast iron
• Bearing Housing, Pedestal & Baseplate Ductile Cast iron
• Volute Casing : High Chrome Alloy
• Impeller Material: High Chrome Alloy
• Rear Liner Plate: High Chrome Alloy
• Front Liner Plate: High Chrome Alloy
• Discharge Size: 2 “ to 14 “
• Flow rate: Up to 16,505GPM
• Head: Up to 408 ‘
• Solids Diameter: Up to 3.5 “
• Shaft Seal Type: Expeller seal+Packing seal, or Mechanical seal
• Impeller Type: Enclosed
• Temprature of Slurry Handing: Max. 60 Degree Celsius
• pH Levels of Slurry Handing: 5-12
• Concentration of Ash Slurry Handing: 45% By Weight
• Concentration of Ore/Coal Slurry Handing: 60% By Weight
FEATURES
• The discharge outlet can be adjusted at eight directions with intervals of 45 degree to adapt various operating environments
• High chrome alloy lining allows for various abrasive material handling
• Large handling size means fewer clogged impellers
• Robust design allows it to be in difficult application environments
• High efficiency enable it save large energe
• Strong abrasive resistance material means long life cycle and low maintenance cost
• Replaceable wear metal liner means simple maintenance

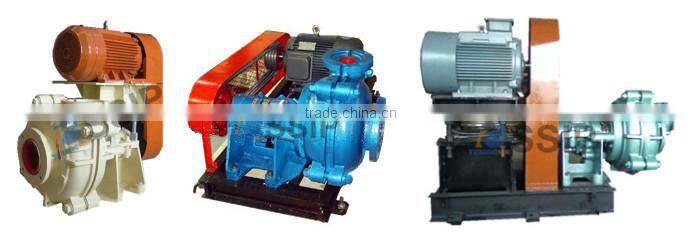

DRIVING TYPE

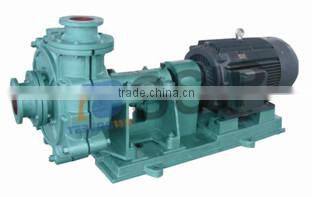

- Direct Connect Driving (DC)
- Belt Driving
(CV) (CR) (ZV)
- Hydraulic Coupler Driving (HC)

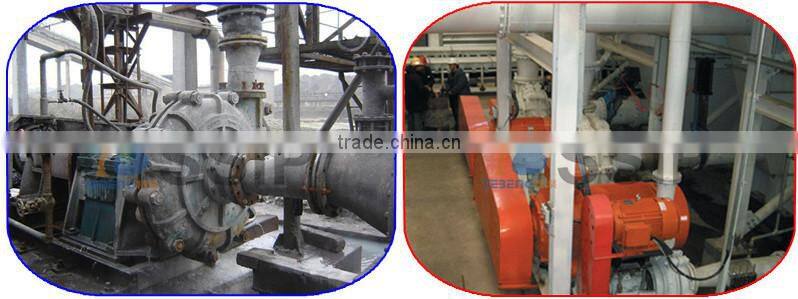

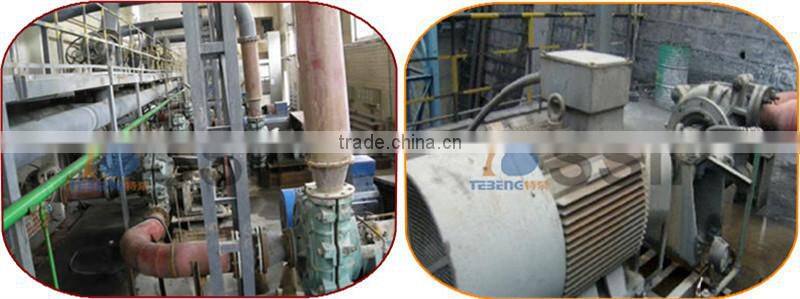

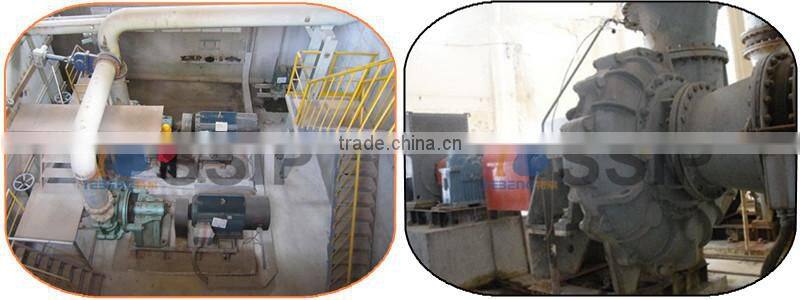

APPLICATION CASES
Slurry Pumps in Power Plant Slurry Pumps In Coal Washery
Slurry Pumps In Mining Slurry Pumps In Metallurgical
Slurry Pumps In Iron Mining Slurry Pumps In Copper Mining
Slurry Pumps In Coal Mining

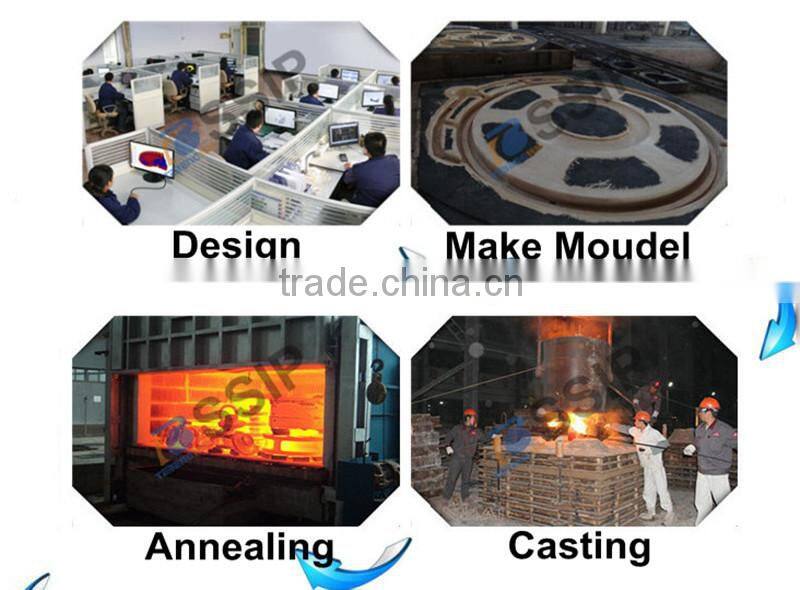

PRODUCING PROCEDURE:
PACKING:
OUR FACTORY:
