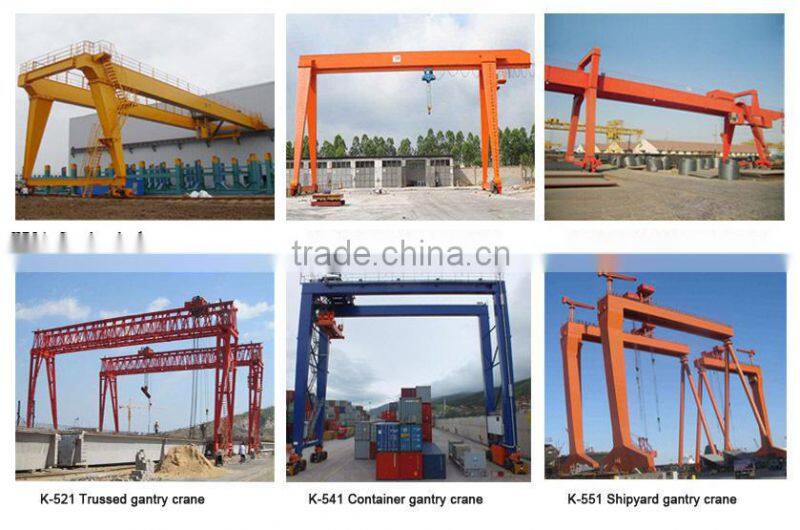

Double Girder Movable Type Gantry Crane
About gantry crane
a.Mainly made up of bridge,trolley,crane traveling mechanism and electric system
b.Applies to the open warehouse or rail along for general handling and lifting work
c.Also can equipped with many lifting device for special work
d.Prohibited for lifting high temperature solution, flammable, explosive, corrosion, overloading
dust and other dangerous operations.It is widely used in industrial and mining enterprises
warehouses and other places need lifting weights.
gantry crane sketch
Technical Parameters
| Lifting capacity | t | 25/5 | 50/12.5 | 80 | ||
| Span | m | 22 | 22 | 34 | ||
| Lifting height | Main | m | 9 | 8 | 15 | |
| Aux | 9.5 | 9 | ||||
| Working system | A5-A7 | |||||
| Speed | Hoisting | Main | m/min | 0.7-7.2 | 5.9 | 2.5 |
| Aux | 19.4 | 10.5 | 18 | |||
| Crab traveling | 27 | 18.8 | 18 | |||
| Trolley traveling | 25.5 | 18.4 | 20 | |||
| Motor | Hoisting | Main | Type/kw | YZR250M2-8/42 | YZR280M-10/55 | YZR280S-8/52 |
| Aux | YZR180L-6/17 | YZR200L-6/26 | ||||
| Crab traveling | YZR160M1-6/6.3 | YZR160M2-6/8.5 | ZDR125-4/2*4.6 | |||
| Trolley traveling | YZR160L-6/2*13 | YZRE132M2-4/2 | YZRE132M2-4/4*5.5 | |||
| Total weight | Crab | t | 8.55 | 16.168 | 14.83 | |
| Total weight | 52.83 | 66.981 | 105.08 | |||
| Max. wheel load | KN | 293 | 196 | 188 | ||
| Steel track recommended | P43 | |||||
| Power source | 3-phase AC 50HZ 380V | |||||
K-501 MH, L Type Single Girder Gantry Crane---free inquiry
MH,L single girder gantry crane mainly deal with light weight product, rated capacity from5T-25T,span from7m-25m
Lifting height 6m-45m. Structure is simple, easy to handle.Light duty A4
Applies to the open warehouse or rail along for general handling and lifting work
It has truss beam and box beam
K-501 Single Girder Gantry Crane Main Parts
K-511 Double Girder Gantry Crane---free inquiry
Doubl girder gantry crane for loading and unloading heavy cargo,rated load capacity from5T-300T,span from 7m-30m,lifting height from6m-60m,A5,A6
High frequency operation,heavy duty with strong steel strcture
.
K-531 Trussed Type Gantry Crane---free inquiry
Trussed type gantry crane is more suitable for strong wind place that box type and dead weight is light that box girder gantry crane
rated load capacity from5T-300T,span from 7m-30m,lifting height from6m-60m
K-541 Semi Gantry Crane ---free inquiry
.
Manufacruting Process Show
Packaging and shipping
1.Delivery time
Within 15 ~30 business day after the receipt of deposit.
2.Packaging
Wood case for electric parts, accessories; large sections will be loaded onto bulk cargo ship
after packing.
3.Transportation
Generally 35 days to 50 days to destination port.
4.Payment terms
FOB, CFR and CIF are common trade terms.We can accept 30%T/T in advance,the balance paid before shipment.
5.Crane installation
The professional installation team can be sent to local site to install for customer.
6.Warrenty period
We'll be responsible for maintenance if our product itself has quality problem during one year after receiving.
Our after-sales
a.14 months warranty when products leave the factory, or 12 months warranty after installation and commissioning in addition to the human damage factors.
b.2 years spare-parts provided for better maintenance.
c.Professional technical staffs provide installation, commissioning and training services.
d.Delivery with English user manual, parts manual, product certification and other relevant certificates.
e.Porfessional technical advisory for any time.
To lift the dream
As a crane equipment trader, to lift the heavy goods is only our obligation, not our purse
Sometimes we want to own a super robot, because the load is too heavy to bear, sometimes in life
Sometimes in we have to sigh for the dream.
.
To lift the dream, this is our purse
.
the trade consultant would be the super robot of your life, career, and your dream.
.
I am in china, but serve you in the world
kehao, your trustworth supplier
1. Is your products customized?
Yes. We can provide the customized gantry crane depending on your detail requirement.
2. Can this type work in hazardous environment?
This gantry crane is just for application in general manufacturing work area. Crane for hazardous environment, please consult our professional sales manager.
3. Do your side can provide other lift tools?
Yes, we can provide some lift tools like grab, hoist and electric magnetic chuck as you want.
4 The space of my workshop is limited, can the crane ok for mine?
Yes, please let us know your requirement and we engineer can design for you.
5. What’s the information should I provide when inquiry? ( As follows: )
a.Lifting capacity...........................................................................................? ton
b.Lifting height.(hook center to ground)........................................................? m
c.Span? with cantilever or not?.....................................................................? m; Yes or No ?
d.Have you installed the rails? Do you need us supply the rails? ................Yes or No ?
e.Working condition: which material to lift? temprature?................................Please confirm.
f.Would be better if you have drawings of your plant......................................Yes or No ?
