Gantry Crane Wheels

Lifting capacity

t

10

16/3.2

20/5

30/10

36/10

50/10

Span

m

18  22  26  30  35

Lifting

height

Main

m

10   12

Aux

m

11.7/12.7

10.6/12.6

10.7/12.7

11/13

11.28/13.28

Workign system

A5

Speed

Carb travelling

m/min

43.8

41.9

42.3

42

39.1

38.13

Trolley travelling

54.6

53

40.1

51.2

40

43.8

Steel track recomminded

 KN

QU80

QU70

QU70

QU80

QU80

QU80/QU70

Power

3 Phase 380V 50HZ or can be customized

Brief introduction

Double glider container gantry cranes with hoke are available for general service,

such as loading,unloading,lifting and transferring work in outdoor storage or on

port.there are different capacity double beams gantry crane for your choice

according to your different use.

Application

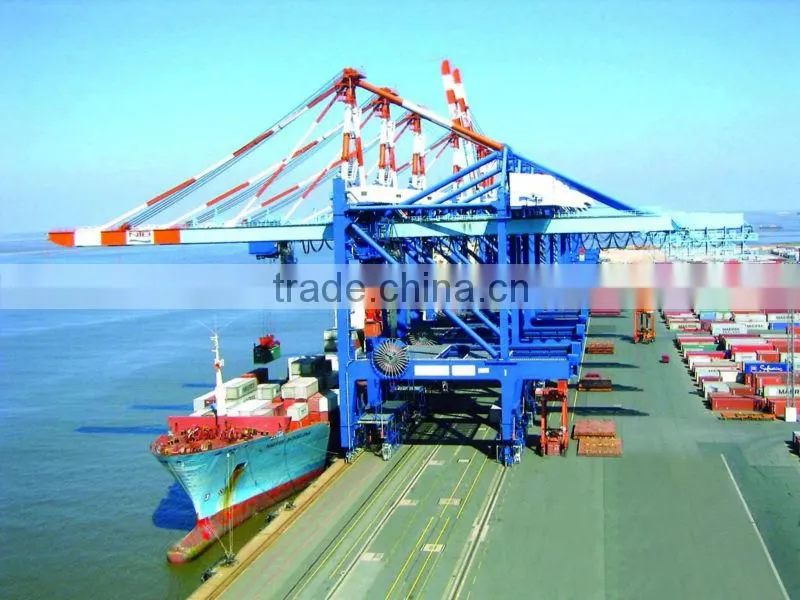

It is one kind of heavy duty gantry crane which widely used in port to lift the container.

Control methods

1.Pendent line with press button

2.Cabin control

3.Remote control

General features

1.Reasonable structure, strong bearing capacity

2.Ideal performance, smooth starting and stopping

3.Low noise, low cost maintenance

4.Safe and reliable operation

Technical features

1.Strong box type, welding by machine hand, strong and beautiful

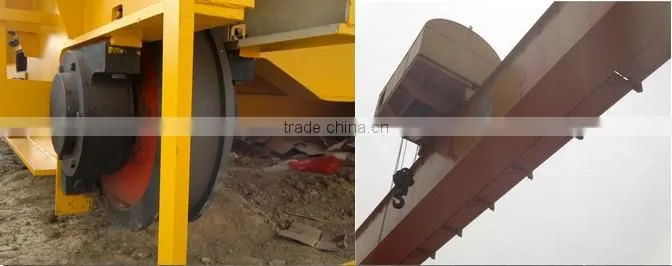

2.Wheels, gears, couplings, wire rope drums are manufactured by our CNC

machine center, top quality control

3.Heavy duty slipring motor, WUXI NGP motor,top quality and famous brand in China

Service

We could provide turn-key project as your demand include Design,

Manufacture, Quality assurance, assembling, Testing, commissioning,

training and after service.

Design and construction rules

All the standards required the crane is according to china standards

Safety Guarantee

1. Weight overload protective device

2. Top quality polyurethane buffer

3. Crane traveling limit switch and lifting limit switch

4. Low voltage protection function

5. Emergency stop system

6. Current overload protection function.

1.Shippment : Usually by sea, but according to the actual situation  we will choose the most suitable mode of  transportation  for the customer.

2.Payment : 1.T/T     2.L/C    3.Western Union

3.Delivery : Winthin one month

4.Package :  Electric parts packed by plywood crate, steel structure nude, delivery in container or in bulk.
