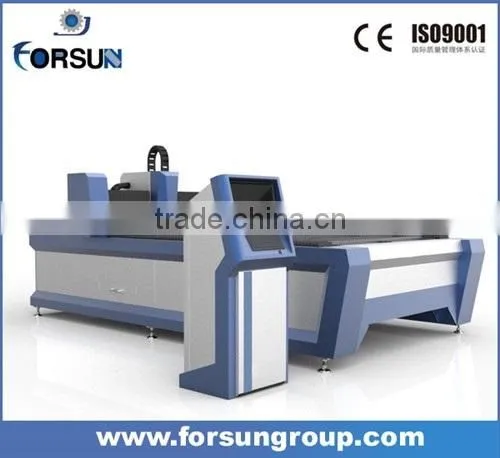

Steel cutting cnc machine /metal products logol engraving machine/YAG milling cnc router
Applicable Industry:
This machine is widely used in various industries such as advertising decoration,kitchen and kitchen ware,engineering machinery,steel and iron,automobile,metal plate chassis,air-conditioner manufacturing,metal plate cutting,etc.
Applicable Materials:
This machine is mainly used for rapid cutting on metal plates such as stainless steel,carbon steel,galvanized plate, various alloy,etc.
Technical Parameters
No. |
Items |
Parameters |
1 |
Working Area |
1500*3000mm |
2 |
Laser Power |
500W(optional 300W/1000W/2000W/3000W) |
3 |
Laser Length |
1064nm |
4 |
Laser Generator Type |
made in China or imported |
5 |
Working Table |
Sawtooth |
6 |
Maximum Idle Running Speed |
80m/min |
7 |
Position Accuracy |
±0.05mm/m |
8 |
Position Speed |
20m/min |
9 |
Minimum Line Width |
± 0.02mm |
10 |
Cutting Thickness |
≤6mm |
11 |
Control System |
Professional laser control system--BOCHU |
12 |
Position Type |
red dot |
13 |
Power Consumption of Whole Machine |
≤12KW |
14 |
Whole Machine Weight |
6000KG |
15 |
Working Voltage |
380V/50Hz |
16 |
Auxiliary Gas for Cutting |
oxygen,nitrogen,air |
17 |
Machine Size(l×W×H) |
4800x2600x1800 |
Advantage of the machine:
1.Spare parts:Servo motor,reduction gear and guide rail,etc are imported with original packaging.
2.Accuracy:Its speed and accuracy are guaranteed by using gear grinding with high precision,
imported guide rail and laser cutting head under strict assembly.
3.Cutting:The laser cutting head which is imported with original packaging coordinates with spare parts which have high speed and precision to bring superb cutting quality.
4.The laser generator can be made in China or imported according to request from customers.Both two types can be maintained freely.
Characteristics of the machine:
1.Great Performance
Identical cutting quality on any cutting point is realized through fiber transmission.
2.High Efficiency
The rapid cutting speed is two times higher than that of CO2 laser machine.Its use-cost is low.
3.Low Consumption of Gas
Laser cutting does not make any gas because of the specific cutting technology on steel plate.
4.Low Consumption of Energy
It is environment-protecting and energy-saving.Its power consumption is reduced by 20%-30% compared with that of CO2 laser machine.
5.Maintenance-free
Reflecting lens is not needed for fiber transmission.Much time is saved when optical path is adjusted.It is maintenance-free.

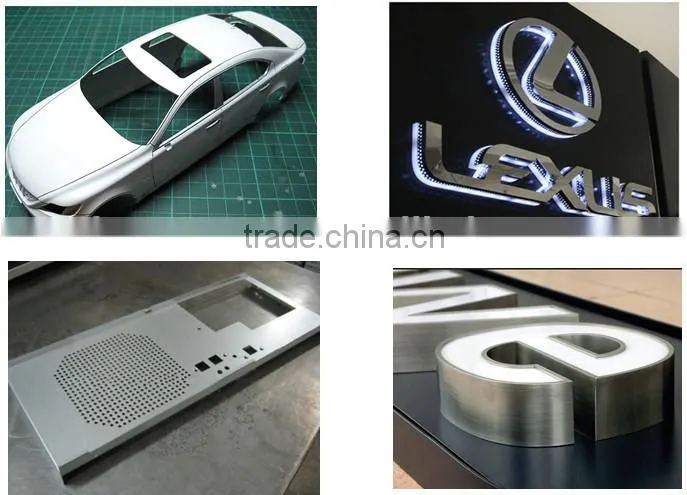

Our machine working sample:
Our factory:
Our certified:
Delivery:
Within 20 days after the deposit
Packing:
Wooden case or as your requirment
Payment:
T/T,50% deposit and the balance 50% should be paid before shipment
Our main product:
CNC routers, CNC Engravers, laser engravers, plasma cutting machines, and knife cutting machines in China
Advantage of our company
1.Experience and professional
2.Talented and passionate work team
3.high tech products
4.perfect after-sale service
5.warranty:1.5 years
To provide you detailed quotation, we need to confirm the following detailes :
1.what is raw material
2.the size of material
3.Your other requirement
Detailed information will be sent to you the moment we get your confirmation
If you interested in our cnc laser machine ,check there:
https://img13.fr-trading.com/productgrouplist-213107427/Laser_cutting_machine.html
Whatspp:0086-18363034359
Skype:forsun.sales1
