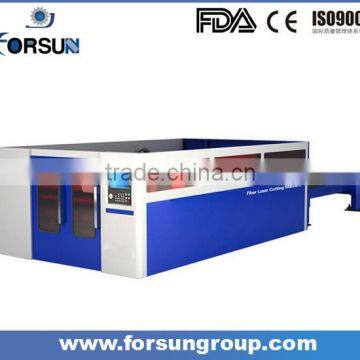

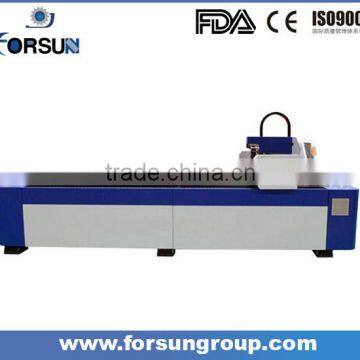

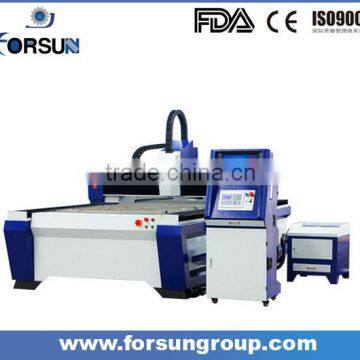

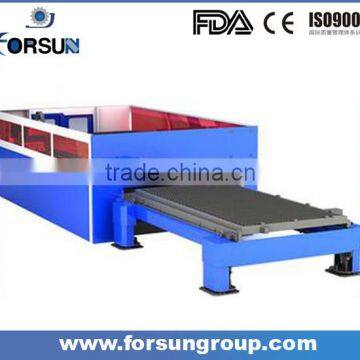

China high technology 500W fiber laser cutting machine, fiber laser metal cutting machine
Advantage of 500W fiber laser cutting machine :
1.Spare parts:Servo motor,reduction gear and guide rail,etc are imported with original packaging.
2.Accuracy:Its speed and accuracy are guaranteed by using gear grinding with high precision,imported guide rail and laser cutting head under strict assembly.
3.Cutting:The laser cutting head which is imported with original packaging coordinates with spare parts which have high speed and precision to bring superb cutting quality.
4.The laser generator can be made in China or imported according to request from customers.Both two types can be maintained freely.
Applicable Industry of 500W fiber laser cutting machine
This machine is widely used in various industries such as advertising decoration,kitchen and kitchen ware,engineering machinery,steel and iron,automobile,metal plate chassis,air-conditioner manufacturing,metal plate cutting,etc.
Applicable materials of 500W fiber laser cutting machine
This machine is mainly used for rapid cutting on metal plates such as stainless steel,carbon steel,galvanized plate, various alloy,etc.
Machine features of steel fiber laser cutting machine :
1.Great Performance Identical cutting quality on any cutting point is realized through fiber transmission.
2.High Efficiency The rapid cutting speed is two times higher than that of CO2 laser machine.Its use-cost is low.
3.Low Consumption of Gas Laser cutting does not make any gas because of the specific cutting technology on steel plate.
4.Low Consumption of Energy It is environment-protecting and energy-saving.Its power consumption is reduced by 20%-30% compared with that of CO2 laser machine.
5.Maintenance-free Reflecting lens is not needed for fiber transmission.Much time is saved when optical path is adjusted.It is maintenance-free.
Technical Parameters of steel fiber laser cutting machine:
| Working area | 3000x1500mm |
| Laser media | ND:Fiber |
| Laser wavelength | 1064nm |
| Laser power | 500W(optional 300W/1000W/2000W/3000W) |
| Working Table | sawtooth |
| Maximum Idle Running Speed: | 80m/min |
| Position Accuracy: | ±0.05mm/m |
| Position Speed: | 20m/min |
| Minimum Line Width: | ± 0.02mm |
| Cutting Thickness: | ≤6mm |
| Control System | Professional laser control system--BOCHU |
| Position Type | red dot |
| Power Consumption of Whole Machine: | ≤12KW |
| Whole Machine Weight | 6000KG |
| Working Voltage: | 380V/50Hz |
| Auxiliary Gas for Cutting: | oxygen,nitrogen,air |
| Machine Size(l×W×H) | 4800x2600x1800 |
| Laser Generator Type | made in China or imported |
Working sample of steel fiber laser cutting machine:
Customer Visit of carbon fiber machine:
Certification of carbon fiber machine:
