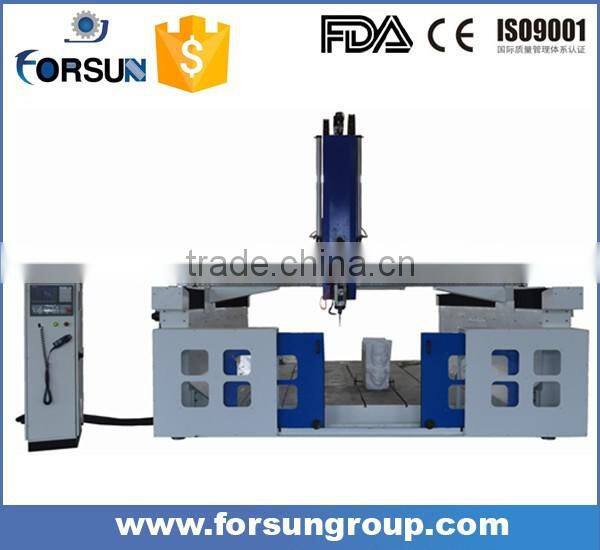

Jinan professional manufacturer 5D cnc foam cutting router machinery
Applicable Industry and materials:
1) Die and mold industries.
Non-metallic mold: the machine is particularly suitable for automotive foam mold, wooden ship model, wooden model aviation, trains and other wooden mold.
2) Musical instrument industry:
Can carve three dimension musical instrument, contour cutting
cnc foam cutting router machinery Technical Parameters
| No. | Item | Parameter |
| 1 | X,Y,Z Working Area: | 2000x4000x900mm |
| 2 | Table Size: | 3100×4500mm |
| 3 | X,Y,Z Traveling Positioning Accuracy | ±0.01/300mm |
| 4 | X,Y,Z repositioning Accuracy: | ±0.01mm |
| 5 | Table Surface: | Milling steel table (T-slot) |
| 6 | Frame: | Welded structure (cast iron) |
| 7 | X, Y Structure: | Rack and Pinion Drive,Taiwan HIVIN Rail Linear Bearings |
| 8 | Z Structure: | HIVIN Rail Linear Bearings ,Ball Screw |
| 9 | Max. Power Consumption: | (Without spindle) 6.5KW |
| 10 | Max. Rapid Travel Rate: | 40000mm/min |
| 11 | Max. Working Speed: | 25000mm/min |
| 12 | Spindle Power: | 9.0KW Italian Spindle |
| 13 | Spindle Speed: | 0-24000RPM |
| 14 | Drive Motors: | servo system (Japan) |
| 15 | Working Voltage: | AC380V/50/60Hz,3PH (Option: 220V)) |
| 16 | Command Language: | G code |
| 17 | Operating System: | SYNTEC control system(Taiwan)(Option: Siemens Control system ) |
| 18 | Computer Interface: | Ethernet |
| 19 | Flash Memory: | 256 M(with CF card) |
| 20 | Collet: | ER32 (BT30) |
| 21 | X,Y Resolution | <0.01mm |
| 22 | Software Compatibility: | Type3, UcancameV9, ArtCAM software |
| 23 | Running Environment Temperature: | 0degree - 45 degree |
| 24 | Relative Humidity: | 30% - 75% |
| 25 | Packing Size: | 2300X4800X1900mm (in parts) |
| 26 | N.W.: | 6800KG |
| 27 | G.W.: | 7500KG |
cnc foam cutting router machinery Configuration:

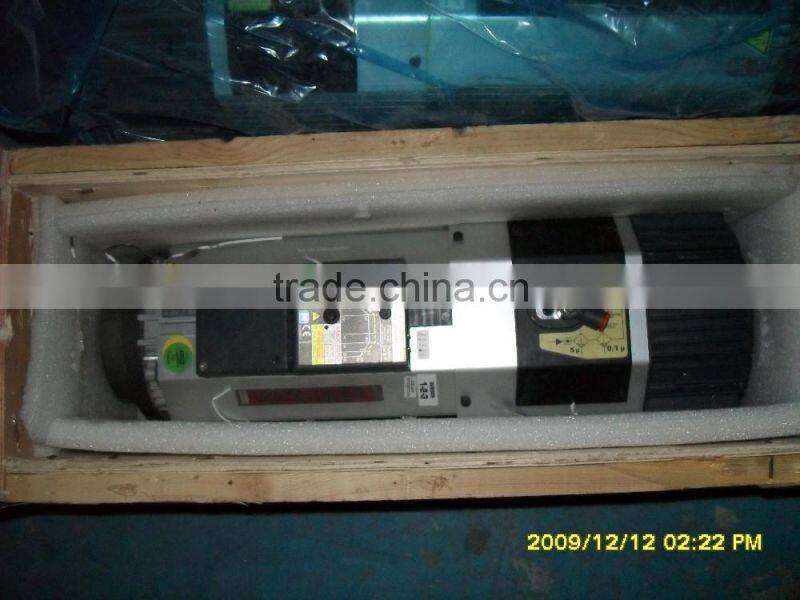

1.Italy 9.0kw spindle:

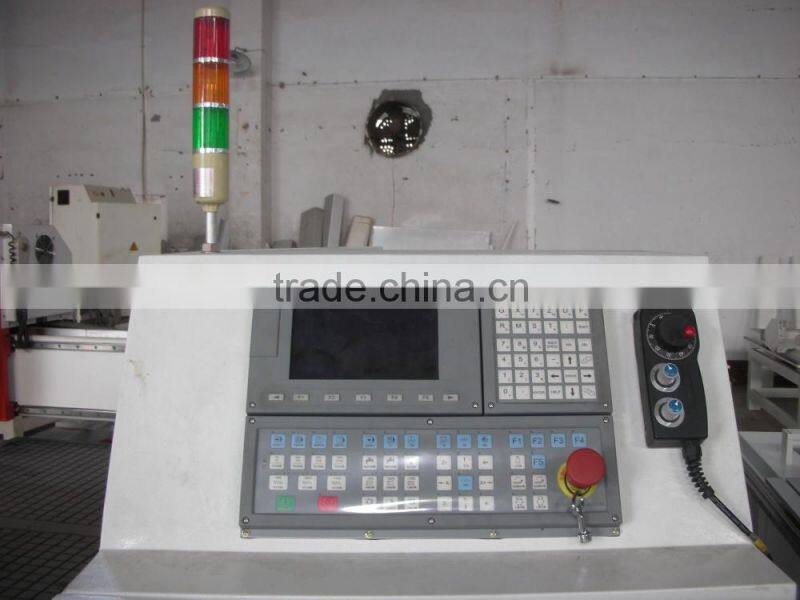

2.SYNTEC control system: from Taiwan with high performance and competitive price
3.Japan servo motor and drives: with high precision and long life
4.Taiwan linear guide: used for linear reciprocating stadium
5.Whole cast steel structure thicken to 8mm

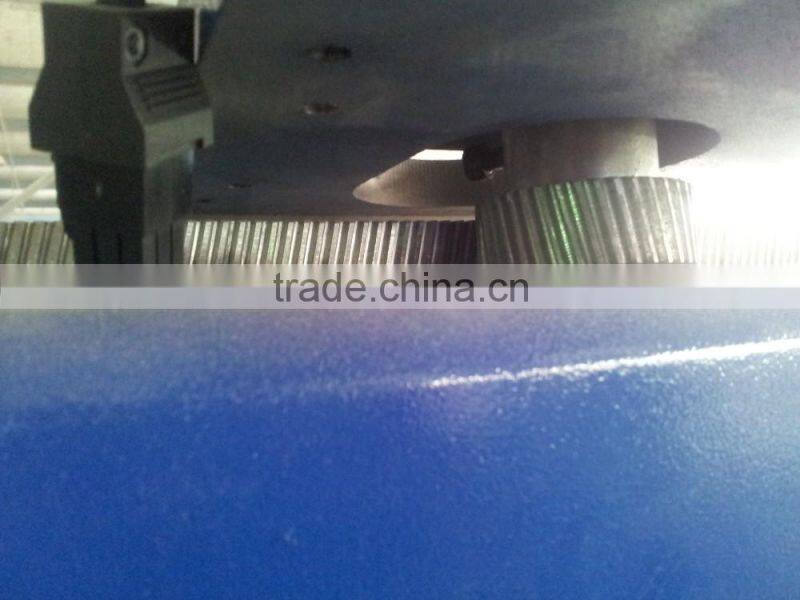

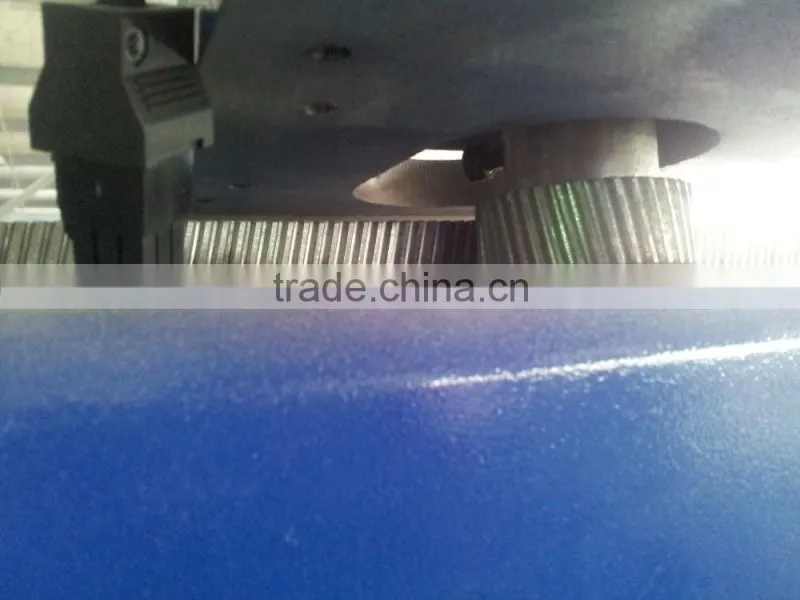

6.Drive System: X,Y-Rack Z-Ball Screw,Z with high precision ball screw
7.Automatic Tool Calibration: To guide rail and slide block , make it run better
8.Schneider electrical components: original brand from France

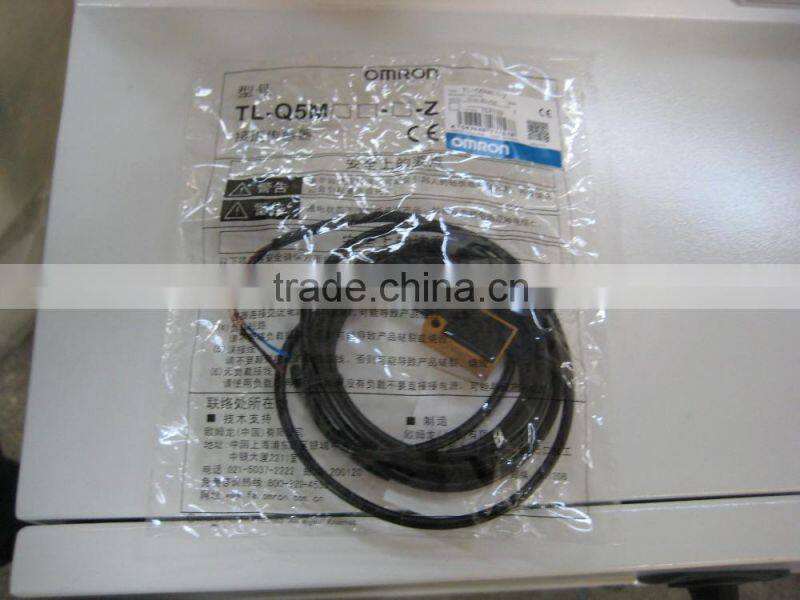

9.Japanese Omron Switch: with long life
10. T-Slot table with Aluminum sheel: use clamp fixed materials
11.380V/3ph/50 or 60HZ
cnc foam cutting machine samples:
Welcome to our factory
Other main products:
| Auto Unloading ATC CNC | 1325 Syntec ATC CNC | 4 Axis ATC CNC Router |
|
|
|
|
| Double Head CNC Router | Loading/Unloading CNC | SiemensATC CNC Router |
|
|
|
|
| Question time |
Q1.What control system it use ?
A:SYNTEC control system
Q2.Which kind of machine is more suit for me?
A:It is according the material and processing thickness and the working area .
Q3.How to support me if i don't know how to use it?
A:free training within the warranty by fax ,tel and mail. We also can dispatch our
technician to customer’s company to provide training and support if customer agree
the air ticket and hotel.
Q4.How transport?
A:By sea or by land transportation
| About us |
Our superiority
Advance tech,high quality product,competitive price,CE Certification and best service.
Remarks
1. Pkg: suitable package for sea
2. Terms: FOB ,C&F,CIF
3. From Tianjin, China To_______,
4. Delivery Time: within 15-20 working days after received payment
5. Payment: T/T,30% prepaid,,the balance paid before the delivery
