Specifications
Best Price!!! 4-Axis Styrofoam Carving Machine FS2040-EPS1.9kw HSD spindle ATC
2.OMRON SWITCHS
3.SCHNEIDER Electric parts

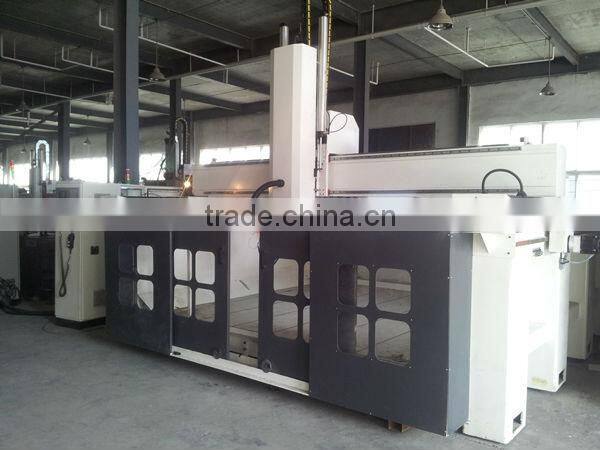

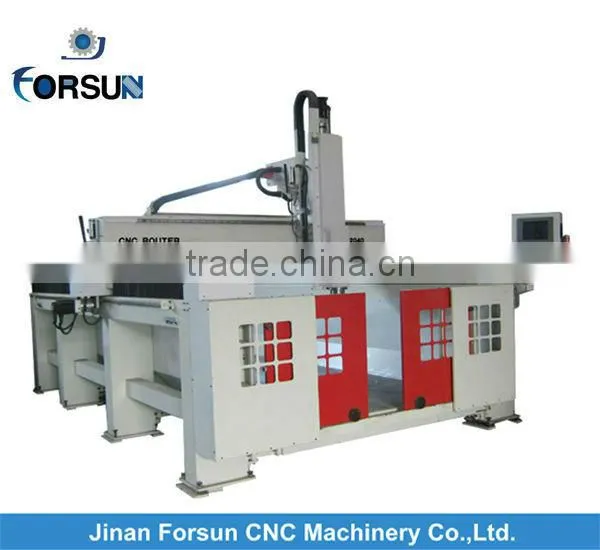

Best Price!!! 4-Axis Styrofoam Carving Machine FS2040-EPS
Configuration:
1) Working area:2000*4000*900mm
2) Cast steel structure thicken to 8mm
3) 9.0KW HSD ATC Spindle from Italy
4) Line style auto tool change with 8 pcs positions
5) ISO 30 Tool Holder (ER32)
6) Syntec controller system from Taiwan(Option:SIEMENS control system)
7) YASKAWA Servo system from Japan(Option:SIEMENS AC Servo System)
8) APEX Reduction gears from Taiwan
9) Oil mist cooling system
10) Sumitomo Rotating head from Japan
11) HIVIN Linear Guide from Taiwan
12) Powerful screw rack and pinion
13) 11KW Delta inverter from Taiwan
14) High precision TBI Ball screw from Taiwan
15) Dust proof for three axis
16) OMRON SWITCHS
17) SCHNEIDER Electric spare parts
18) Original Type3 software
19) ArtCAM software
20) UG software
21) 30 PCS Cutting tools
22) 380V 3PH 50HZ working voltage
Suitable Material:
Wood, EPS and non-metallic carbon hybrid materials.
Parameter:
| No. | Description | Parameter |
| 1 | X,Y,Z Working Area | 2000x4000x900mm |
| 2 | Table Size | 2200×4500mm |
| 3 | X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
| 4 | X,Y,Z repositioning Accuracy | ±0.03mm |
| 5 | Table Surface | Milling steel table (T-slot) |
| 6 | Frame | Welded structure (cast iron) |
| 7 | X, Y Structure | Rack and Pinion Drive, Hiwin Rail Linear Bearings |
| 8 | Z Structure | Hiwin Rail Linear Bearings and Ball Screw |
| 9 | Max. Power Consumption | (Without spindle) 6.5Kw |
| 10 | Max. Rapid Travel Rate | 40000mm/min |
| 11 | Max. Working Speed | 25000mm/min |
| 12 | Spindle Power | 9.0KW |
| 13 | Spindle Speed | 0-24000RPM |
| 14 | Drive Motors | Yaskawa servo system |
| 15 | Working Voltage | AC380V/50/60Hz,3PH (Option: 220V) |
| 16 | Command Language | G code |
| 17 | Operating System | Syntec control System |
| 18 | Computer Interface | Ethernet |
| 19 | Flash Memory | 256 M(with CF card) |
| 20 | Collet | ER32 (BT30) |
| 21 | X,Y Resolution | <0.03mm |
| 22 | Software Compatibility | Type3, UcancameV9, Artcam software |
| 23 | Running Environment Temperature | 0 - 45 centigrade |
| 24 | Relative Humidity | 30% - 75% |
| 25 | Packing Size | 2300X4800X1900mm (in parts) |
| 26 | N.W. | 6500KG |
| 27 | G.W. | 7300KG |
| 28 | Guarantee | 1.5 years from the date of commission |
| 29 | Optional Parts | Dust collector system |
| Mist-cooling system | ||
| Siemens Control system and Servo system |

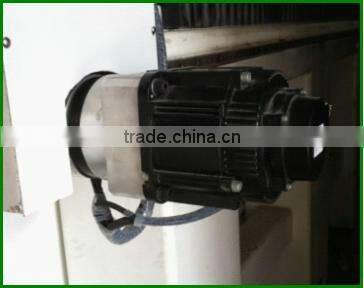

Inside of the Cabinet YASKAWA Servo System

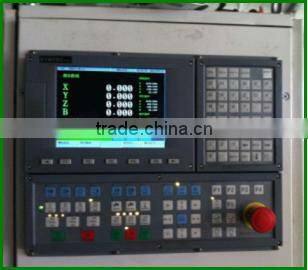

Syntec Controlling System 9.0kw HSD ATC Spindle

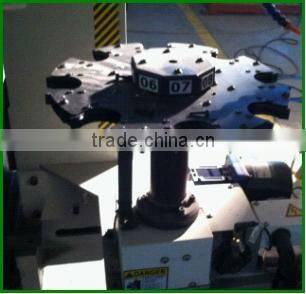

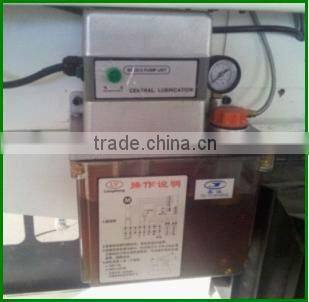

Automatic Lubrication System Auto Tool Change with 8 pcs positions
Working Samples

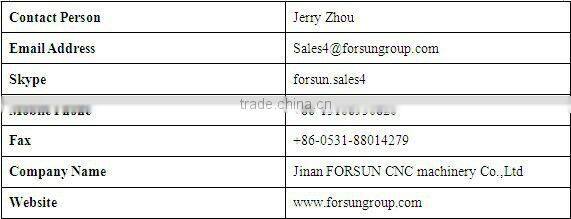

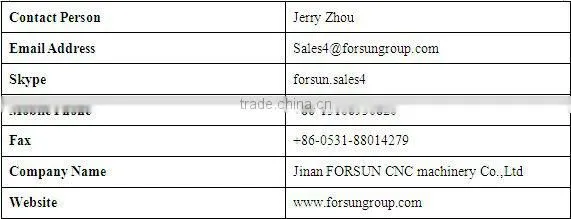

Contact Person: Jerry Zhou
