Specifications
fast cut cnc wire cutting machine:1.High speed and quality
2.CE certifired
3.Warranty: 1 years
cnc PU Foam cutting machine fast cut cnc wire cutting machine
Applications:
Polyurethane foam making .Sliced, shaped processing and Contour Cutting of PU, EVA, EPE, EPS.
Widely used in construction, interior decoration, advertising, toys, models, aerospace models,
furniture manufacturing, secondary packaging, Insulation Materials and other fields.
Features:
1) Big cost savings by eliminating the need to make, repair and store templates
2) Integrated design & cutting program. Just design then cut
3) Big cost savings by automatically arranging the product
4) Supports numeric instrument
5) Higher material utilization resulting from computer aided nesting of shapes
6) Cutting speed can be set to be the best-cut speed for different foams
7) Can pre-cut on the computer to check cutting course
8) Several ways to keep operator safe: four safety doors to stop all motors
when it is opened; braking system starts when cutting line is broken
Technical Parameters :
| ParameterModel | FSF1212 | FSF2012 | FSF2512 | |
| Size max (mm) | L2500×W1200×H1200 | 2500×2000×1200 | 2500×2500×1250 | |
| Cutting wire diameter (mm) | 1.0--1.5 | 1.0--1.5 | 1.0--1.5 | |
| PowerKW | 4 | 6 | 8.5 | |
| PC/Industrial control computer | PC/Industrial control computer | PC/Industrial control computer | ||
| CNC | ||||
| Cuttinging speed (m/min) | 0--6 | 0--6 | 0--6 | |
| Cutting accuracy (mm) | ±0.5 | ±0.5 | ±0.5 | |
| Dimensions | Length(mm) | 4200 | 5000 | 5800 |
| Wide(mm) | 2000 | 3000 | 3600 | |
| Hight (mm) | 2800 | 2800 | 3000 | |
| Cutting mode | 2D | 2D | 3D | |
| Computer system | Window98 or above | Window98 or above | Window98 or above | |
| Weight | 1.2 ton | 1.8 ton | 2.5 ton | |
Specifications:
1) Model: FSF-1210
2) Max.foam Block: 2,500 x 1,200 x 1,000mm
3) Cutting method:wire
4) Power: 8kW
5) Weight: 1200kg
6) Can be made as per customers' requirements.

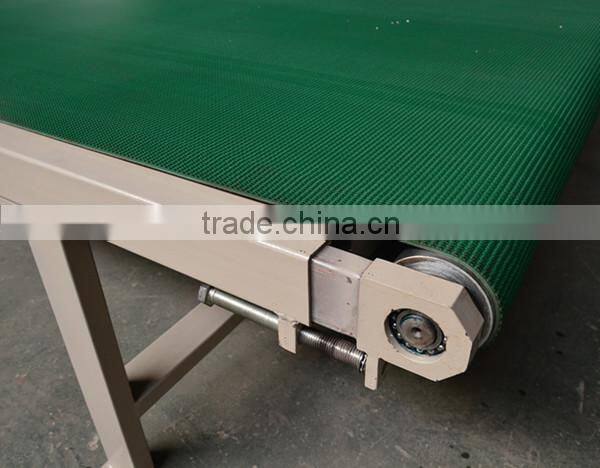

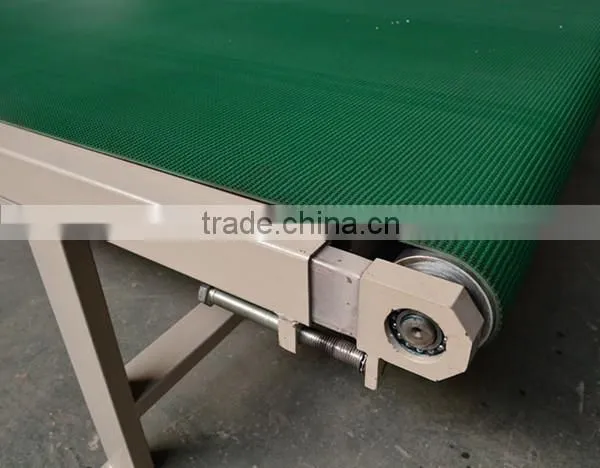

Machines Pictures:

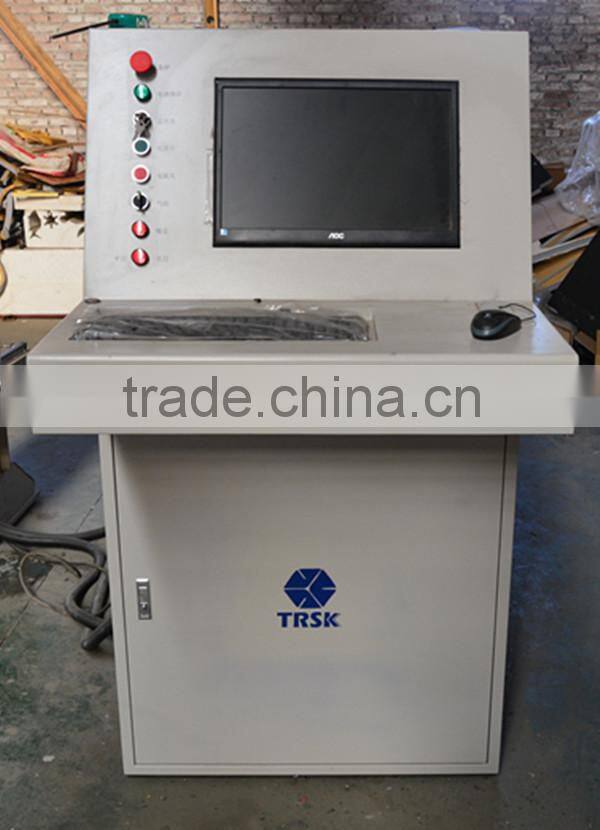

controller system

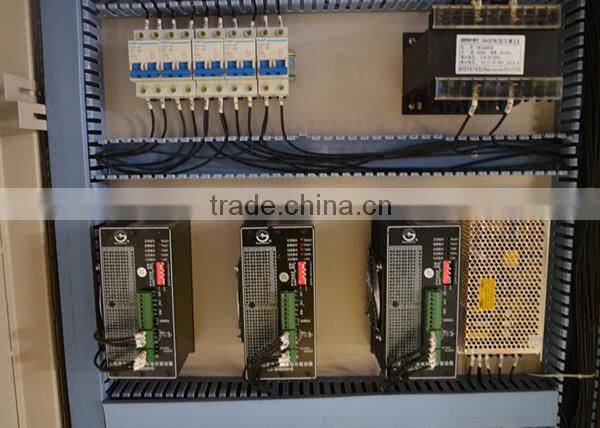

stepper driver

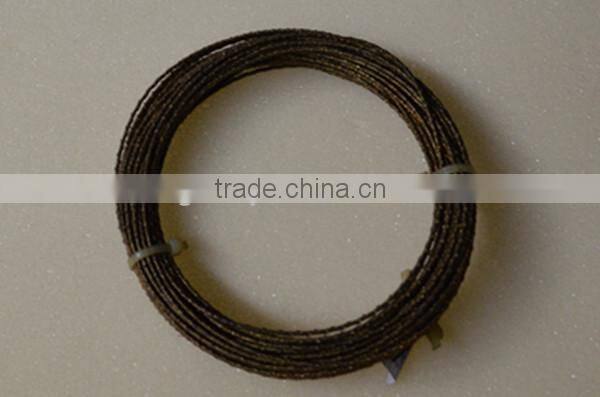

cutting wires

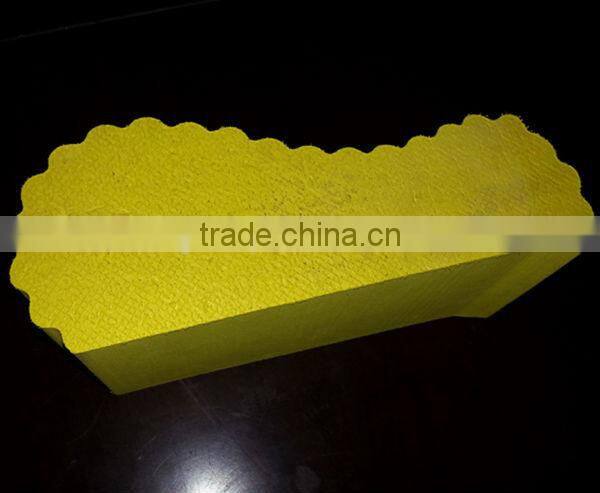

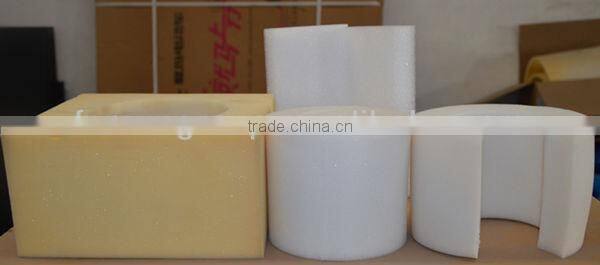

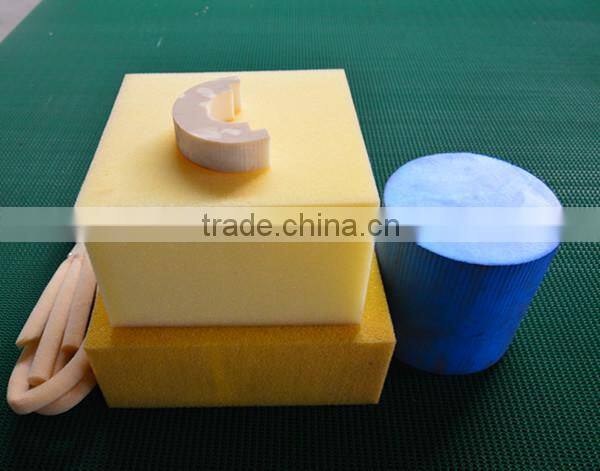

Working Samples:
Payment:
T/T,30% deposit and the balance 70% should be paid before shipment
