Specifications
FS6090B multi-purpose CNC Engraving Machine,NC studio controller system1.1.5kw water cooling spindle
2.nc stuido control
FS6090B multi-purpose CNC Engraving Machine,NC studio controller system
Configuration:
1.Working area: 600mm*900mm*90mm
2.PVC table ( with Aluminium profile)
3.1.5 kw water-cooling spindle
4.DSP controller system , Tool sensor
5.Original type 3 software, 1G U disk
6.Taiwanse Delta Inverter
7.German Schneider Electronic Spare Parts
8.Japanese OMRON Switch
9.1PH 220V 50HZ
10.Package: plywood case
Technical parameters:
NO. |
Items |
|
Parameters |
Option |
1 |
Working Area |
X Y Z |
600*900*90mm |
<=2000mm |
2 |
Table Size |
|
720mm x 1100mm |
|
3 |
Table Type |
|
T-Slot Extrusion PVC |
|
4 |
Accuracy |
Working Accuracy |
±0.02/300mm |
|
Repositioning accuracy |
±0.02/300mm |
|
||
5 |
Frame Structure |
|
Cast steel |
|
6 |
Drive of X,Y,Z |
|
X.Y.Z with ball screw |
|
7 |
Speed |
MAX Travelling Speed |
6000mm/min |
|
MAX Working Speed |
4000mm/min |
|
||
8 |
Spindle |
Spindle Power |
1.5KW 0-24000r/min |
Italian HSD Spindle |
9 |
Max power Consumption |
|
0.8 KW (without spindle) |
|
10 |
Drive |
|
Stepper |
|
11 |
Software |
|
Type 3 |
Ucancam etc. |
12 |
Interface |
|
USB |
|
13 |
Collet |
|
ER16 |
|
14 |
Working Voltage |
|
AC220V/50Hz |
|
15 |
Commend Code |
|
G Code |
|
16 |
Operating System |
|
DSP |
NCStudio |
17 |
Net Weight /Gross Weight |
|
150/190Kg |
|
18 |
Packing size |
|
900*1200*1200mm |
|
All parameters above subject to change without prior notice | ||||
Pictures:

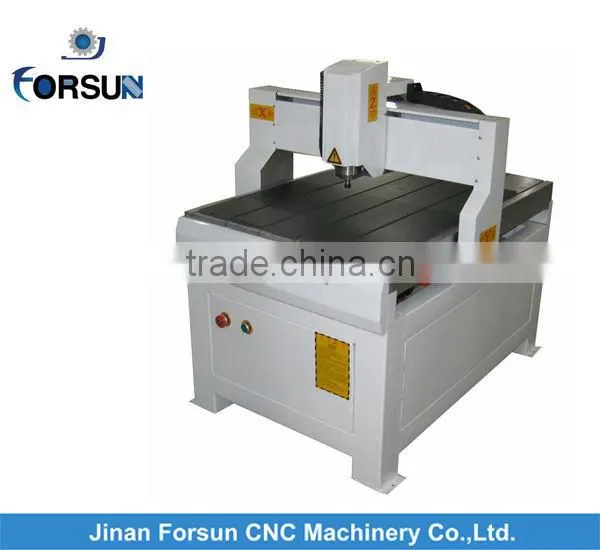

CNC Machine:
1.5kw water cooling spindle:
HIVIN Linear Guide:
NC studio:
PVC Table:
Tool sensor:
Samples:
FAQ:
1) This is the first time I use this kind of machine, is it easy operate?
There are guide video that show how to use machine and english instruction book send to you with machine.
If there is still have any question, we will provide free professinal guide for you until you could use machine well.
2) If machine have any problem after I ordered it, how could I do?
Free parts send to you in machine warranty period if machine have any problem.
Free after-sales service life for machine, please feel free contact us if your machine have any problem.
3) MOQ ?
Our MOQ is 1 set machine. We could send machine to your country port directly, please tell us your port name. There will be best shipping freight and machine price send to you.
