Home > Products > Small CNC Router > home use cnc router cnc router FS4040A cnc engraving machine

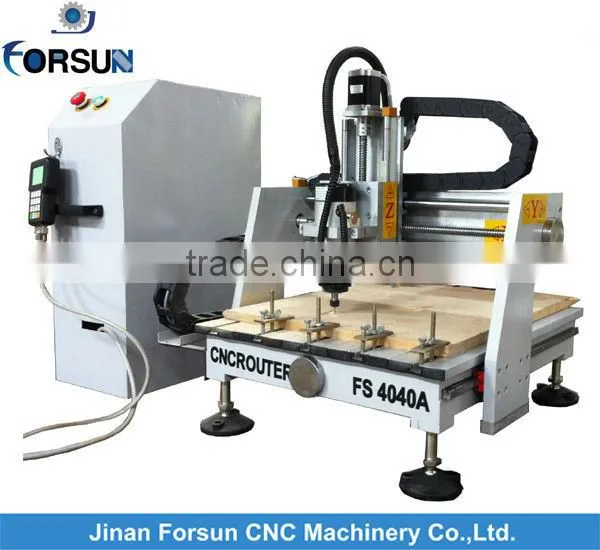

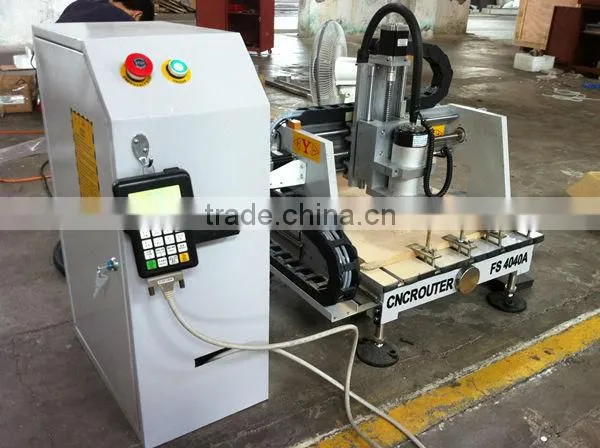

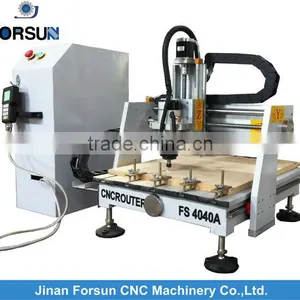

home use cnc router cnc router FS4040A cnc engraving machine
- 1000 Set / Sets per Month
- Qingdao
- T/T
- engraving cnc router,1325 woodworking cnc router 1300*2500*200
- engraving and milling machine,1325 woodworking cnc router 1300*2500*200
- engraver router,1325 woodworking cnc router 1300*2500*200
- dsp control cnc machine,1325 woodworking cnc router 1300*2500*200
- cnc woodworking router machine,1325 woodworking cnc router 1300*2500*200
- cnc woodworking router,1325 woodworking cnc router 1300*2500*200
Product Details
Condition: | New | CNC or Not: | CNC | Place of Origin: | Shandong, China |
Brand Name: | FORSUN | Model Number: | FS4040A | Voltage: | 220V |
Power(W): | 3.0KW | Dimension(L*W*H): | 1060*1030*930mm | Weight: | 160kg |
Certification: | CE | Warranty: | 18 month | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
1.Working area: 400mm*400mm*100mm2.DSP controlling system
3.CE Standard.
home use cnc router cnc router FS4040A cnc engraving machine
Standard configuration:
1) Working area: 400mm*400mm*100mm
2) PVC table with Aluminum profile
3) 1.5KW Water-cooling spindle
4) NC Studio controller system ,
5) HIWIN Linear Guide
6) Tool senso
7) ArtCam Software
8) Delta Inverter VFD
9) German Schneider Electronic Spare Parts
10) Japanese OMRON Switch
11) 1PH 220V 50HZ
12) Plywood case package
Option items:
1.DSP Control system or Mach3
2.Oil mist cooling system
3.Italian HSD spindle
4.Rotary Axis
Technical Parameters
NO. | Items | Parameters | Option | |
1 | Working Area | X Y Z | 400*400*100mm | <=2000mm |
3 | Table Type | T-Slot Extrusion PVC | ||
4 | Accuracy | Working Accuracy | ±0.02/300mm | |
Repositioning accuracy | ±0.01/300mm | |||
5 | Frame Structure | Cast steel | ||
6 | Drive of X,Y,Z | X.Y.Z with ball screw | ||
7 | Speed | MAX Traveling Speed | 6000mm/min | |
MAX Working Speed | 4000mm/min | |||
8 | Spindle | Spindle Power | 1.5KW 0-24000r/min | Italian HSD Spindle |
10 | Drive | Stepper | ||
14 | Working Voltage | AC220V/50Hz | ||
15 | Commend Code | G Code | ||
16 | Operating System | NC Studio | DSP and Mach3 | |
17 | Net Weight /Gross Weight | 130Kg/160Kg | ||
18 | Packing size | 1060*1030*930mm | ||
All parameters above subject to change without prior notice |
DSP Controlling System
Stepper Motors
T-Slot PVC Table

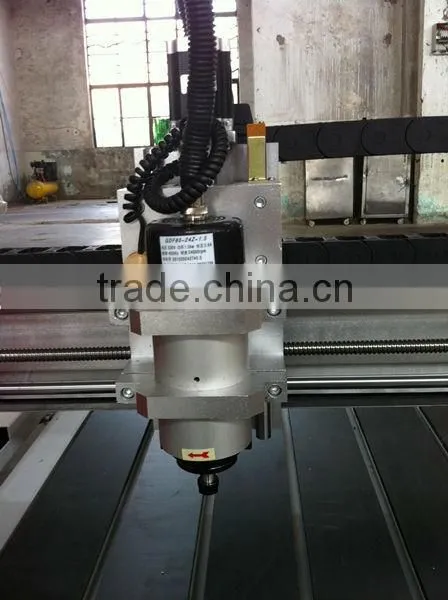

Self-cooling Spindle
Working Samples
After-sales service
1.18 months guarantee for our machines except HSD spindle with 6 months.
2. 24 hours technical supports by email, fax or calling.
3. Free training in our factory. Also we can dispatch our technician to customers place if customers agree to air ticket, food and hotel.
If you are not sure which machine you need, please tell us the follow details:
1. the raw materials you need cutting or engraving
2. the max working size you need(length, width and thickness)
If u own a Forsun you'll own 24 after service form Forsun, 1.5 year guarantee of the machines. Give Forsun a chance, and you will win a surprise! And if you are interested in our products, please let we know!
