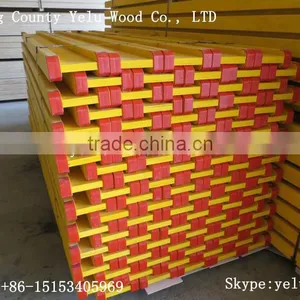

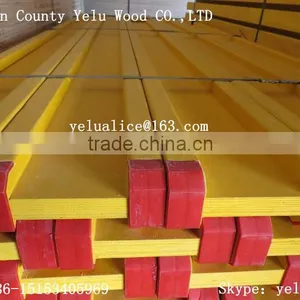

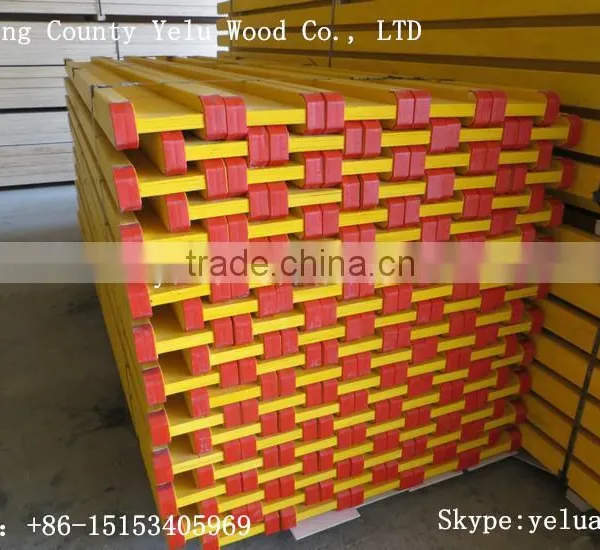

Water-proof Painting Wooden Timber H20
Description:
Standard Size |
160mm(height)*65mm(width)*35mm(flange thickness)* 22mm(web thickness) |
Standard Length (M) |
2.45,2.65,2.90,3.30,3.60,3.90,4.50,4.90,5.90,11.90 |
Other beam lengths or web thickness upon request | |
Average Weight |
4.3kg/m |
Bending moment |
max.5 KN/m |
Cutting action |
max 11.2KN |
Bending |
max 1/500 |
Live load |
max 1.5 KN/m2 |
Moisture content |
12%-14% |
Specification:

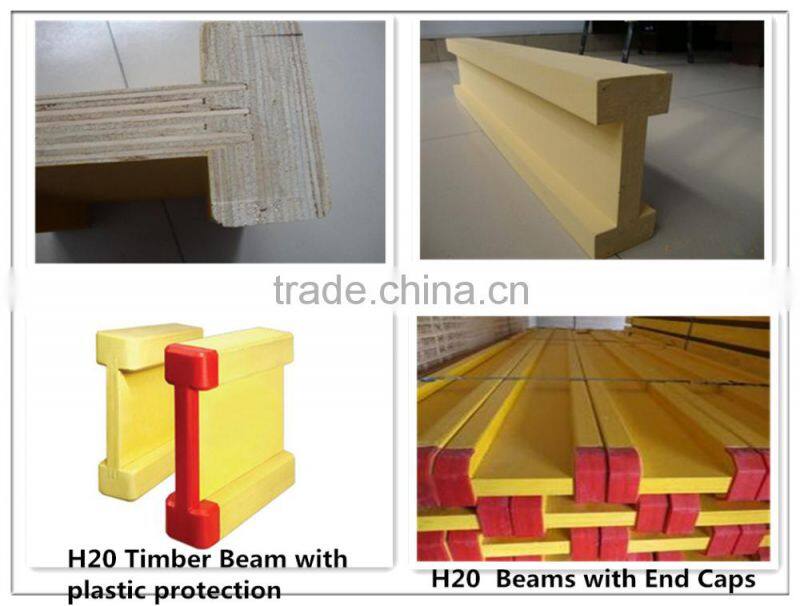

- Protection cap possible up to 9m-over 9 m only cut straight
- Rounding with sealing possible up to 9m-over 9m only cut straight
- Labor force Vk=23.9KN
- Contact resistance Rb,k=47.8KN
- Bending moment Mk = 10.9 KNm
- Rigidity I Ei=450 KNm2
- Weight: 5.5kg/m
1.moisture and mould resistand coating

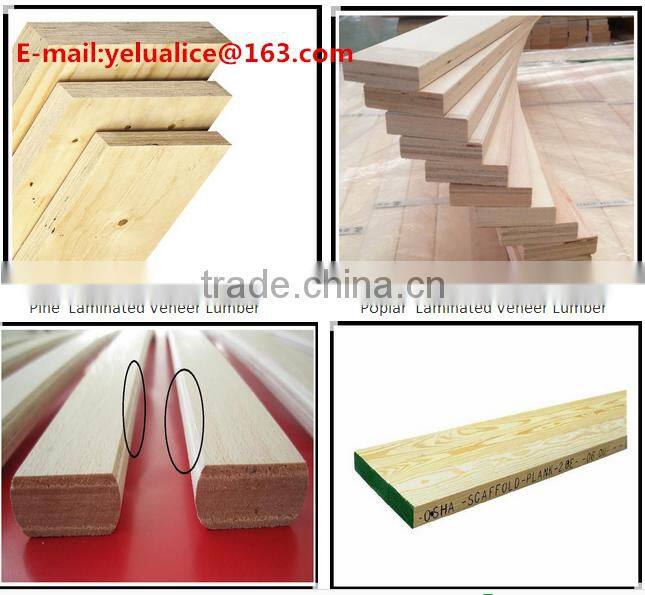

2.LVB(laminated veneer board,cross positioned veneers)
3.vast temperature amplitude durabiity
4.waterproof 6hours boiling/freezing resistant
5.specially designed rolling merchanism for easy pallet loading and unloading

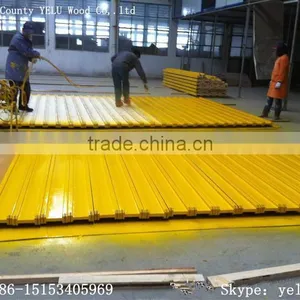

6.three layers of paint, more conducive to waterproof

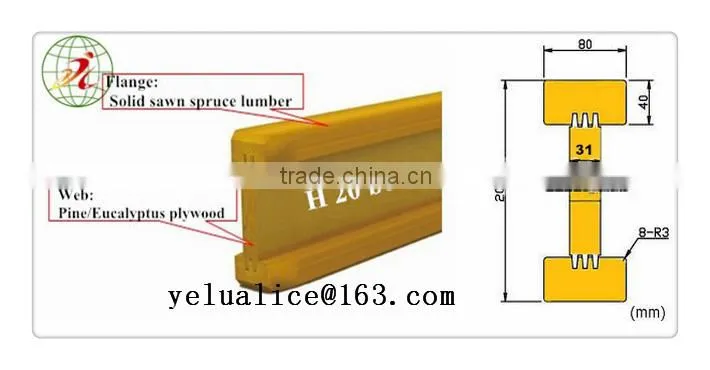

7.the wing board is using radiata pine LVL,the web board is using poplar plywood,so the product has better stability.
we provide accurate and high quality services and products to our clients in time and welcome to visit our mail
Caution:
- Wooden formwork beams are only to be used in an upright position.
- In addition, they are to be secured against tipping according to static requirements
- Every item must be inspected by the installation firm and may only be used if in perfect condition.
- Damaged or formwork girders weakened by decay are not be used.

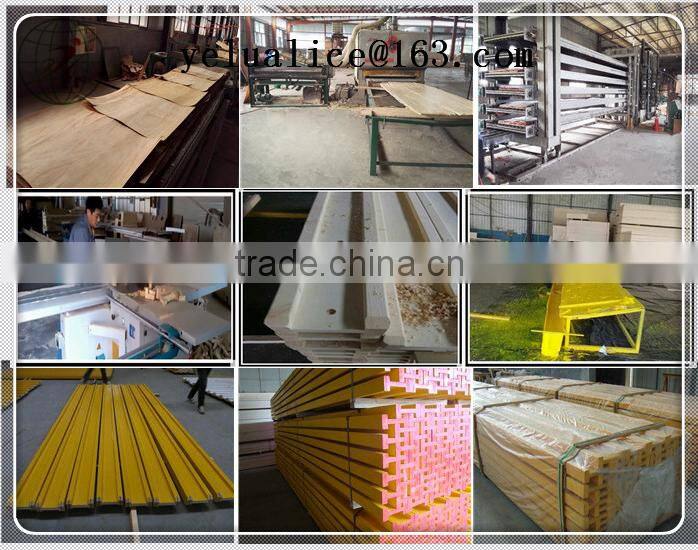

Professional production equipment and testing equipment.More than 50 R & Dengineers and
3.Rich experienve
Alice liu (Ms for export)
-----------------------
Ning jin county yelu wood Co.,Ltd
Skype: yelualice
Tel: (0086) 15153405969
Mobile: (0086) 18505347209
