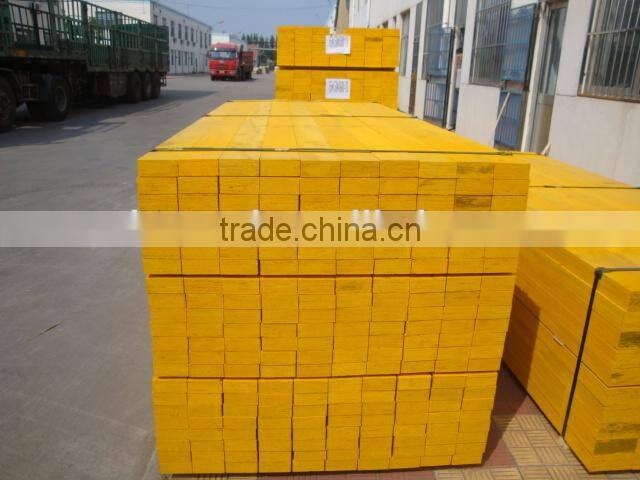

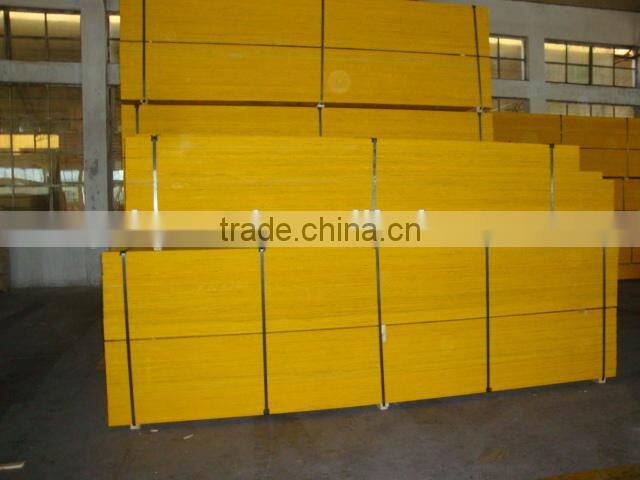

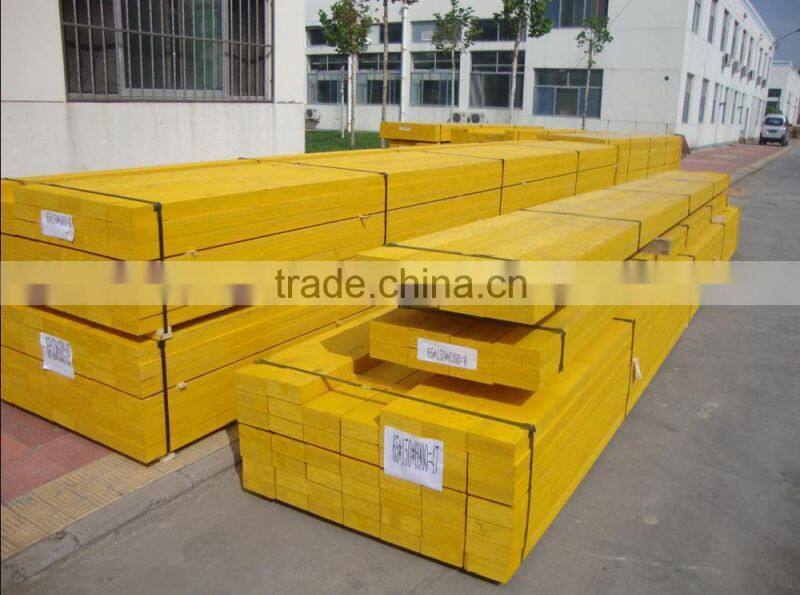

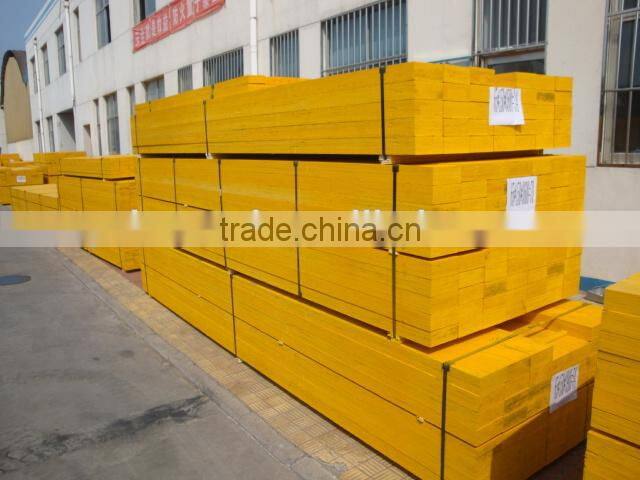

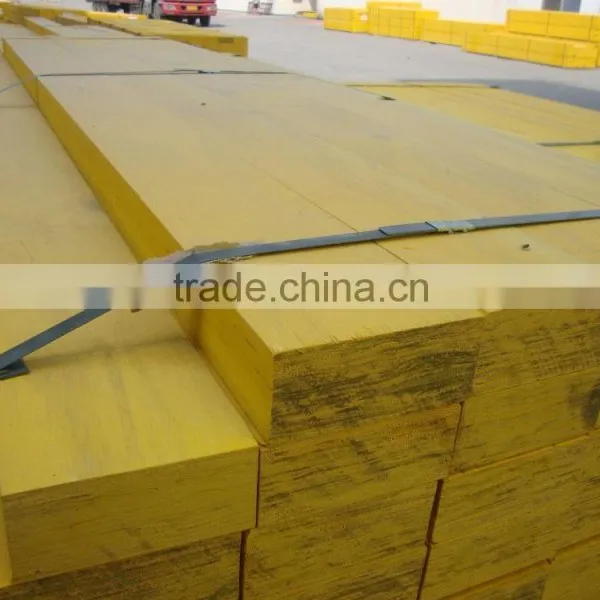

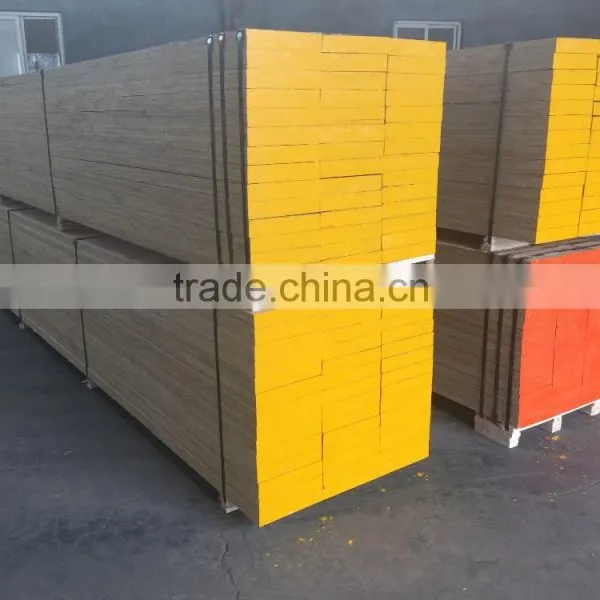

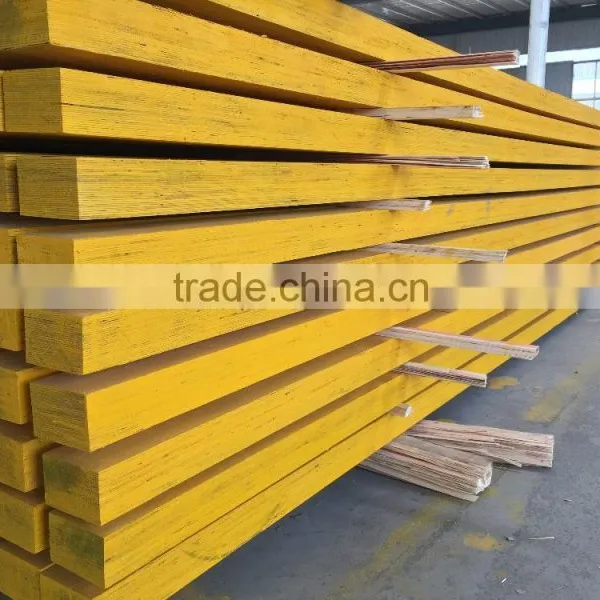

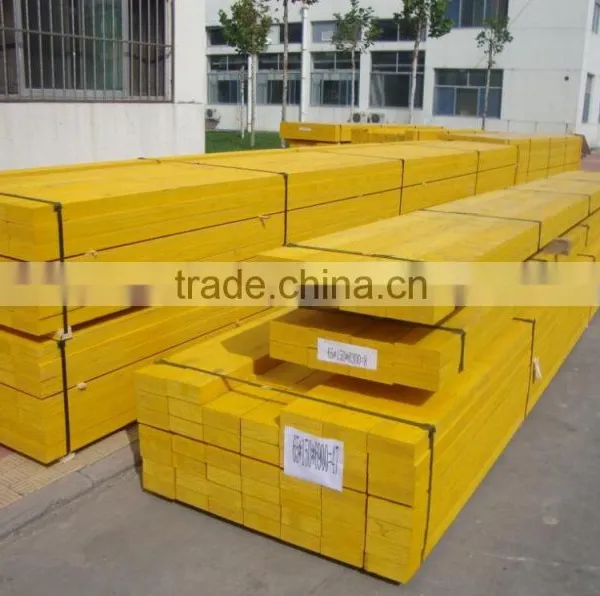

65*95MM Painted Pine LVL Beams

65*95MM  painted Pine LVL Beams   with SGS AS1577-2013 test report

1>  Purpose:For construction,scaffolding system

2>  Material:New Zealand Radiata pine or Masson Pine

3>  Glue:WBP(Waterproof Phenol Formaldehyde Resin Glue)

4>  Size:65*95*6000MM 38*225*3900/5900mm,42*230*3900/5900mm,or as the customers request

5>  Moisture Content:12-16%

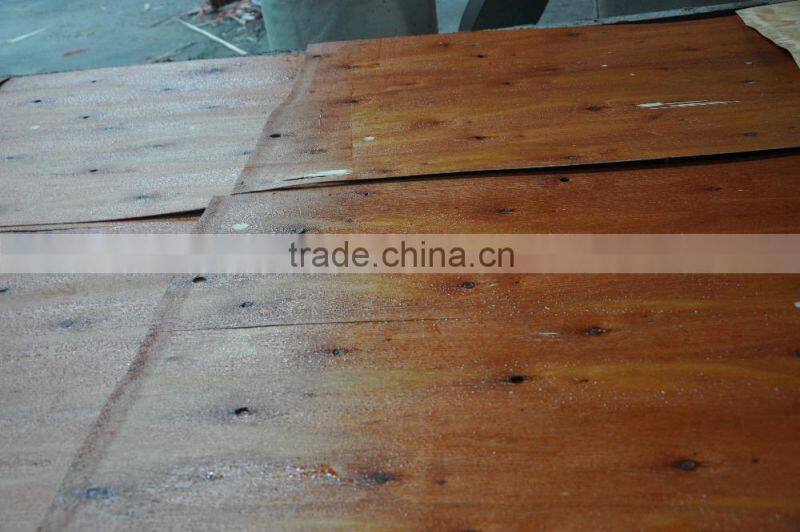

6>  Thickness of veneers:Core veneer 2.6mm(-0.1mm,+0.1mm) Face veneer:1.5mm

7>  Density:620kg/cbm

8>  Grain direction:Parallel to the grain,LVL Structure

9>  Veneer joints:Bevel Grinding,no cracks

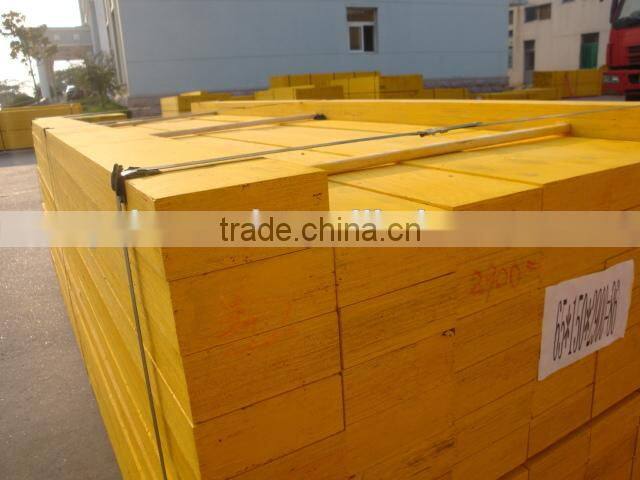

10>Stencil mark&end sealant:according to third party certificates or customer's  requirements

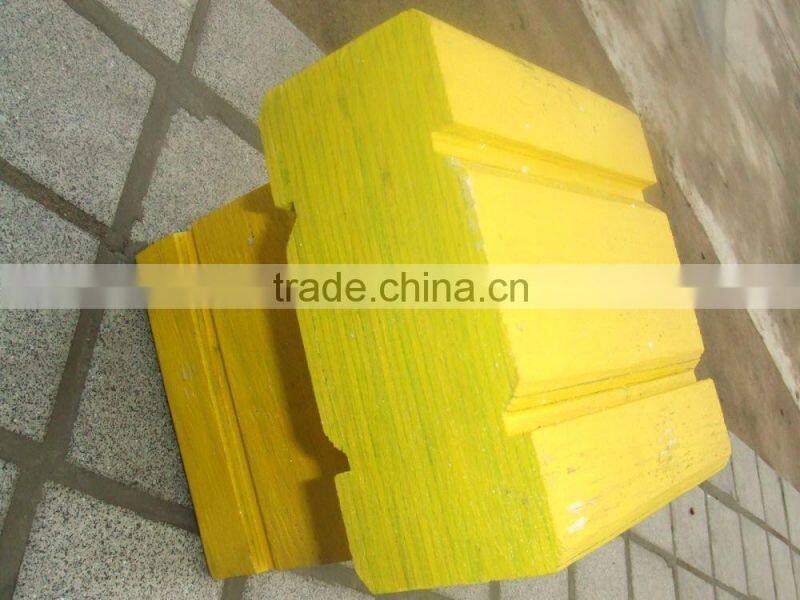

11>Surface treatment:All arrises are chamfered by 5mm at 45 angle degree for easy handing.wax-coated on both sides. paint at the ends

12>Anti-Bending Performance:Perform the test with a span of 3.0mm(the supports are made from steel tube with diameter 60mm, and the contacting surface is 5*235mm each)with two loads on specimen,measuring two concentrated points on the board with a distance of 990mm as center points for two loads(area contacting with specimen is 425*200mm each),with weight of 73kg(160lbs)each,the peak deflection should be within 4.95cm.

13>Loading Appr.48m3/40HQ

14>Weight Limited at qingdao port:26 tons

15>Quality control program:Physical performance test.Veneer Graded by Ultrasonic Machine,Vacuum Pressure and Soak test.MOE onlin test.Test reference:ASTMD Standards.

16>Production Capacity:90,000pcs/month

18>Payment:Irrevocable L/C at sight or T/T(30% down payments against order,70% balance against B/L copy within 3 days.)

  Radiata Pine LVL Beams with SGS AS1577-2013 test report
